Installing Transmission Control Unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Slide the transmission control unit -3-  into the guides -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sliding in transmission control unit

2. Secure the transmission control unit with the fastening screw -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

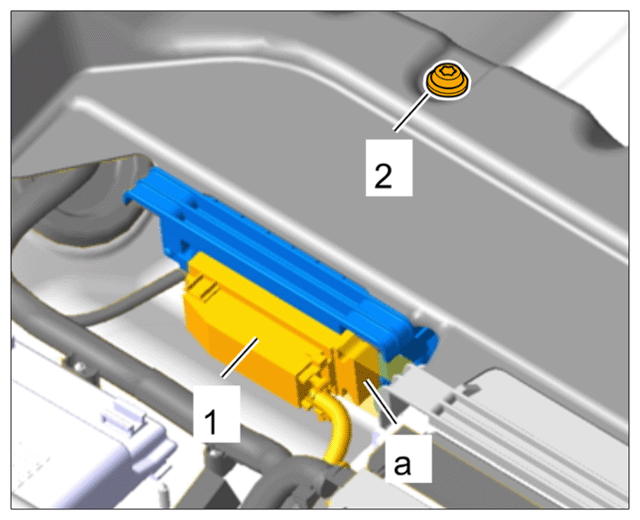

   Plugging in connector on transmission control unit

3. Plug in electric plug connection -1-  and lock it -a-  .
