Component Arrangement

The two front body acceleration sensors are on the wheel housings in the engine compartment and one rear body acceleration sensor is at the rear right. The rear body acceleration sensor (item 7) is integrated into the levelling system/PASM control unit (item 6).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

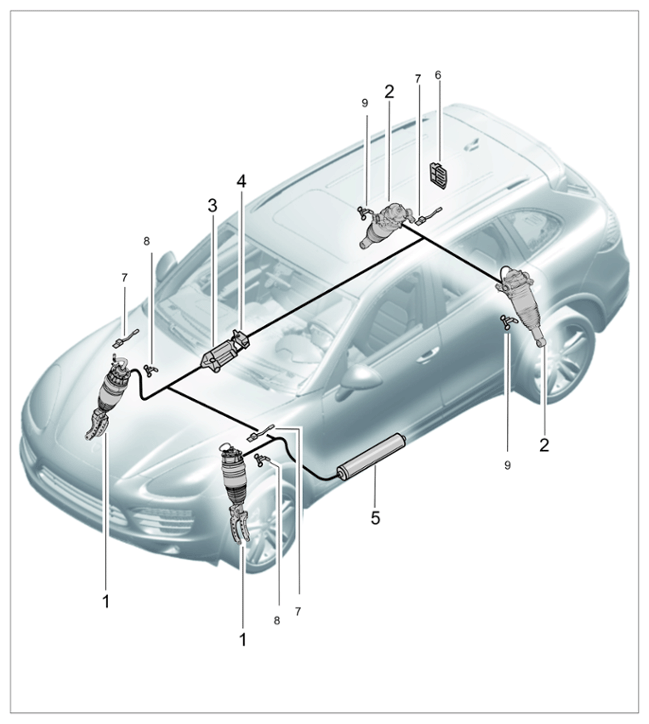

Position of air suspension components
