Disassembling Front Spring Strut

Information

The pictures shown in this document may differ from the original.

Information

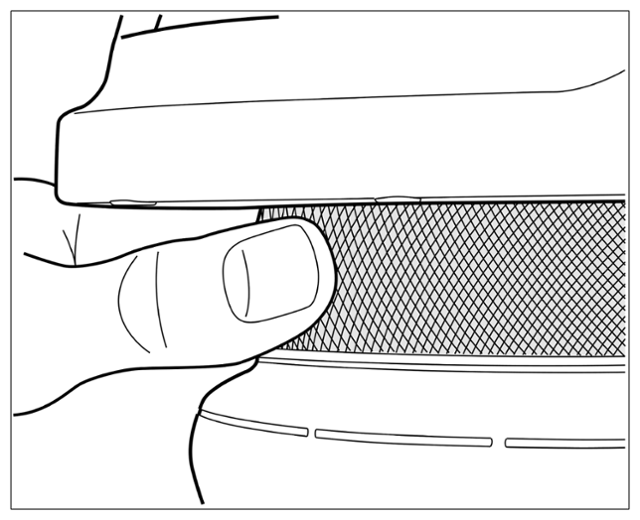

The air-spring strut is empty if the rubber bellows can be pressed in slightly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking air bellows (shown as an example)

The next sections describe the spring struts with and without PASM.

1. On vehicles with PASM, push both grommets on the connector cable to one side.

   Information

   Note the cable routing in the connector so that the cables can be inserted at the same position again during re-installation.

2. On vehicles with PASM: Loosen the locking mechanism in the connector and unpin both cables from the connector.

   > Nr.155 Pos.1 - Press out tool kit and pull off connector set.

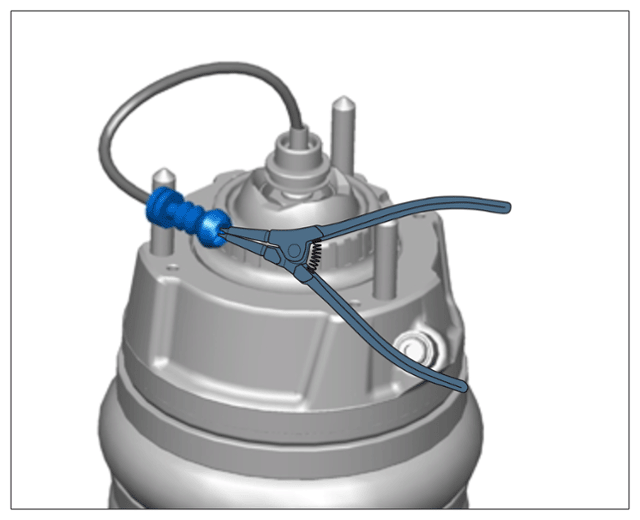

3. On vehicles with PASM: Remove the grommets by opening the grommets slightly using commercially available Seeger circlip pliers. This makes it easier to pull the pins through the grommets. > Opening grommet slightly using Seeger circlip pliers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Opening grommet slightly using Seeger circlip pliers

   Information

   If the shock absorber needs to be replaced, the shock absorber mounting can remain fitted.

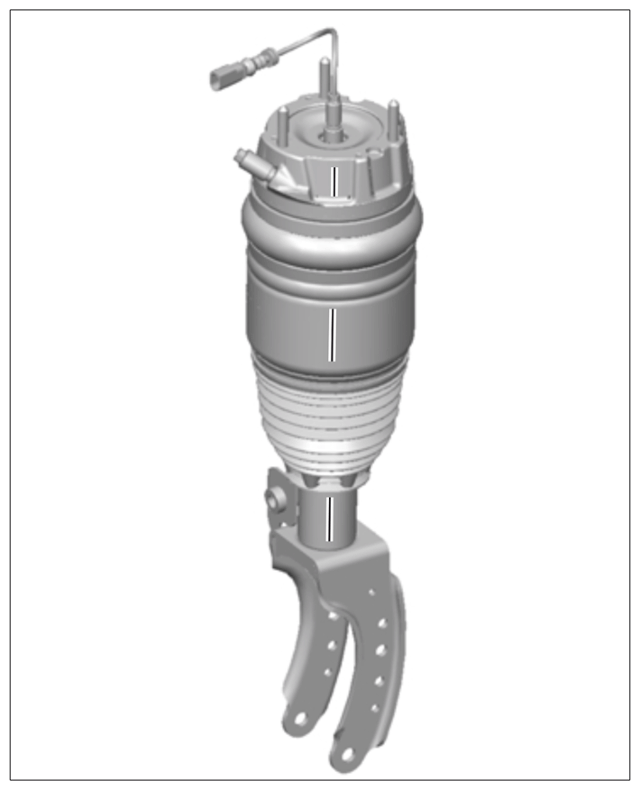

4. To make assembly easier, mark the spring strut using chalk for example. Make the marking on the cover, air spring and shock absorber > Marking air-spring strut before disassembly

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking air-spring strut before disassembly

5. Use a > 3186 - socket-wrench insert to loosen the nut on the piston rod.

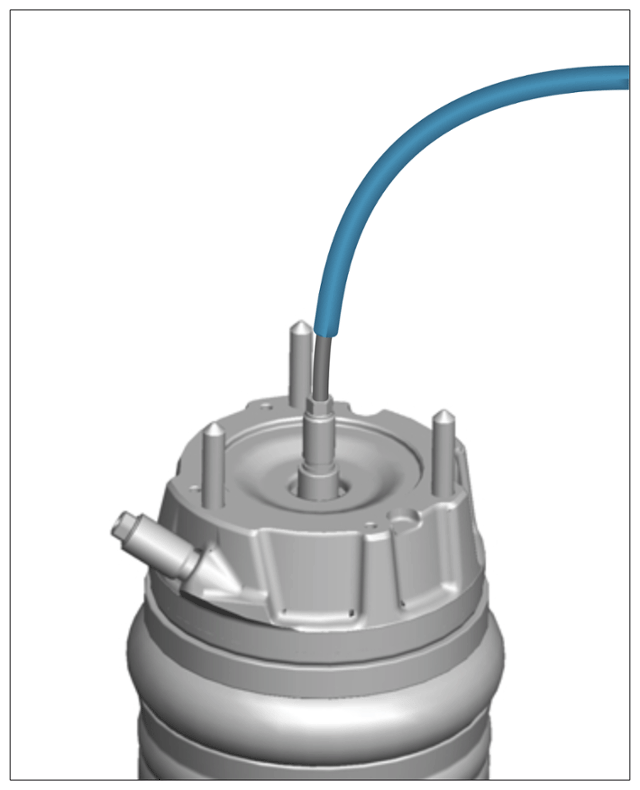

6. If you intend to use the shock absorber again, slide a piece of hose (shop-made) over the cable. This prevents damage to the PASM cable during removal > Removing/fitting hose (shop-made)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing/fitting hose (shop-made)

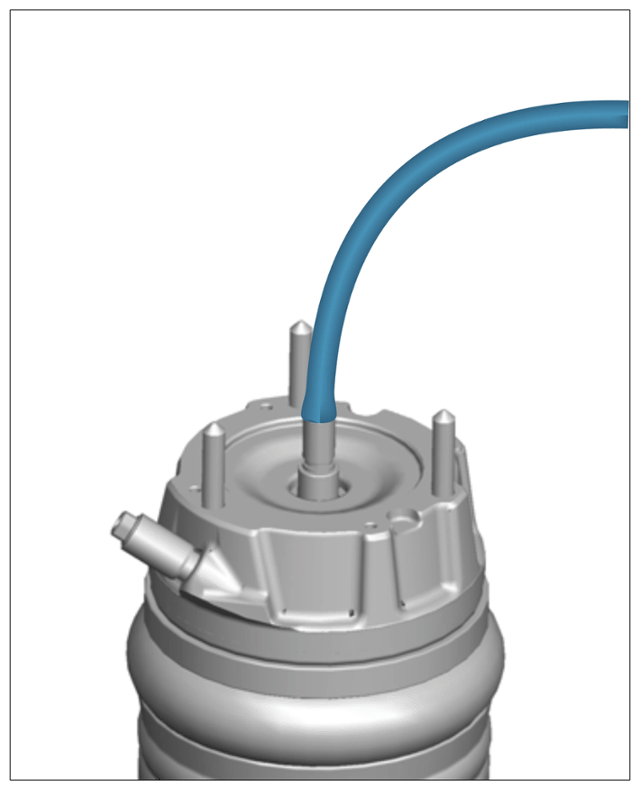

   1. 6.1 Slide the hose (shop-made) onto the hexagon on the piston rod > Hose (shop-made)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hose (shop-made)

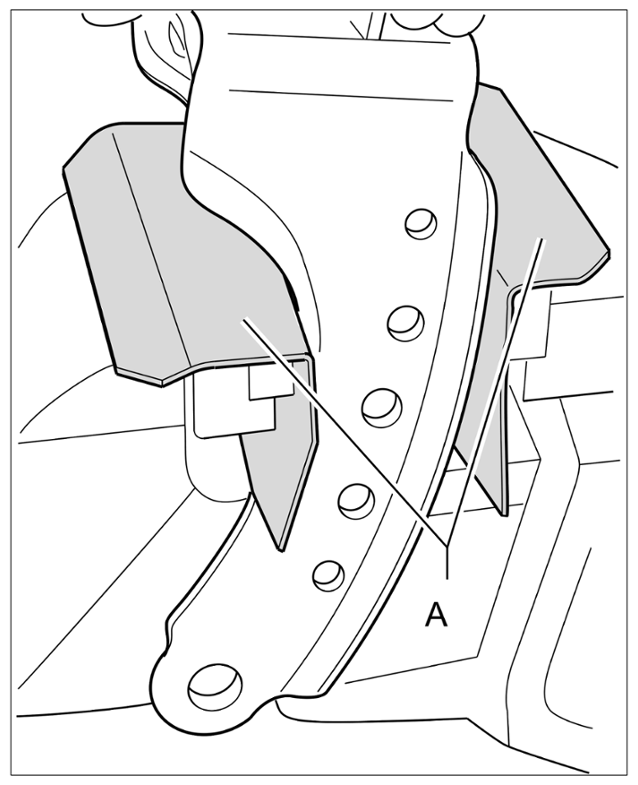

7. Carefully clamp the air-spring strut at the lower mounting point (use aluminum protective jaws -A-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower mounting point for air-spring strut (shown as an example)

8. Only if replacing the shock absorber mounting:  Loosen the four fastening screws on the cover uniformly and remove the cover.

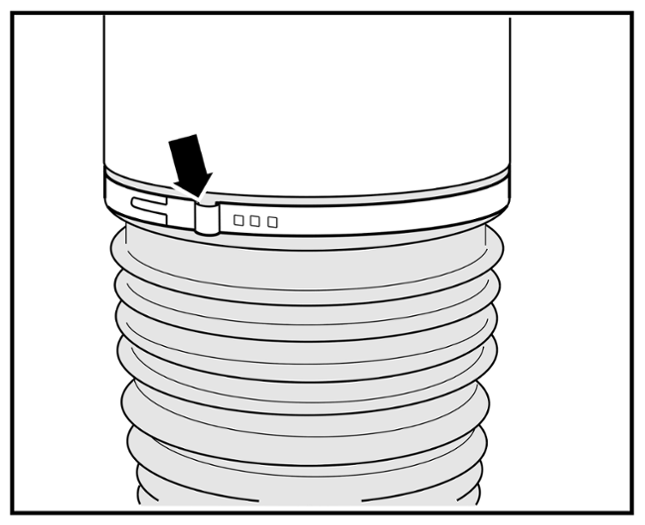

9. Loosen and remove the clamp -Arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clamp on protective sleeve/bellows (shown as an example)

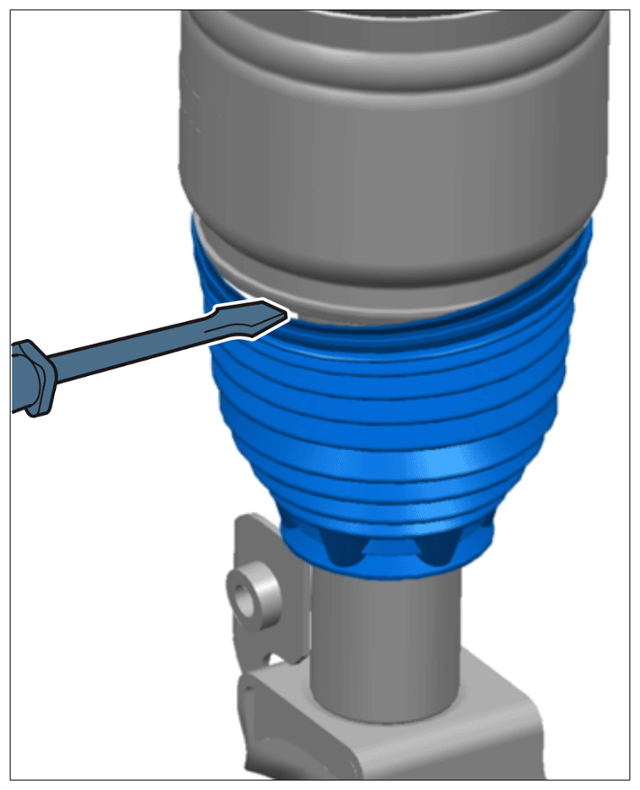

10. Pull off the boot: Take care not to damage the outer guide on the air spring. Carefully  insert a screwdriver between the air spring housing and protective sleeve/bellows if necessary. Pull the sleeve down as far as possible. This makes fitting easier for the next steps.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off boot

11. > Nr.121 Pos.1 - Spring compressor with > Nr.121-1 Pos.2 - tensioning plate  at the bottom and > Nr.121-1 Pos.5 - tensioning plate  at the top must be used.
    1. 11.1 Place the bottom tensioning plate on the shock absorber prongs.

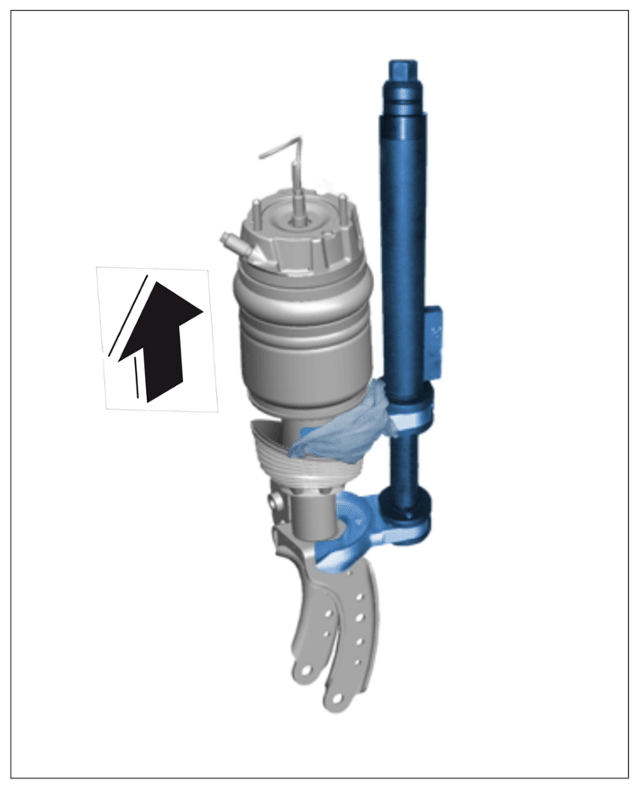

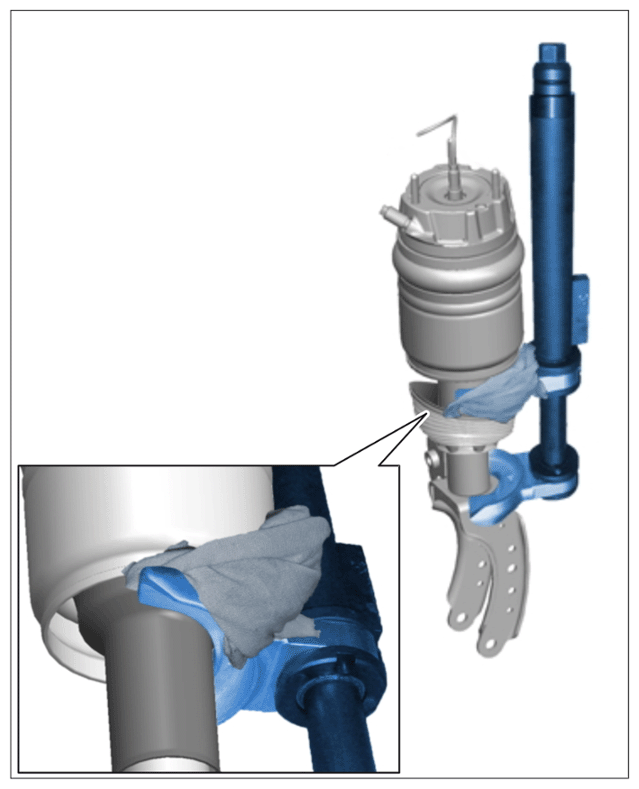

    2. 11.2 Protect the top tensioning plate on the rolling piston on the air spring with a lint-free cloth, for example, and insert it -Magnifier-

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Insert spring compressor

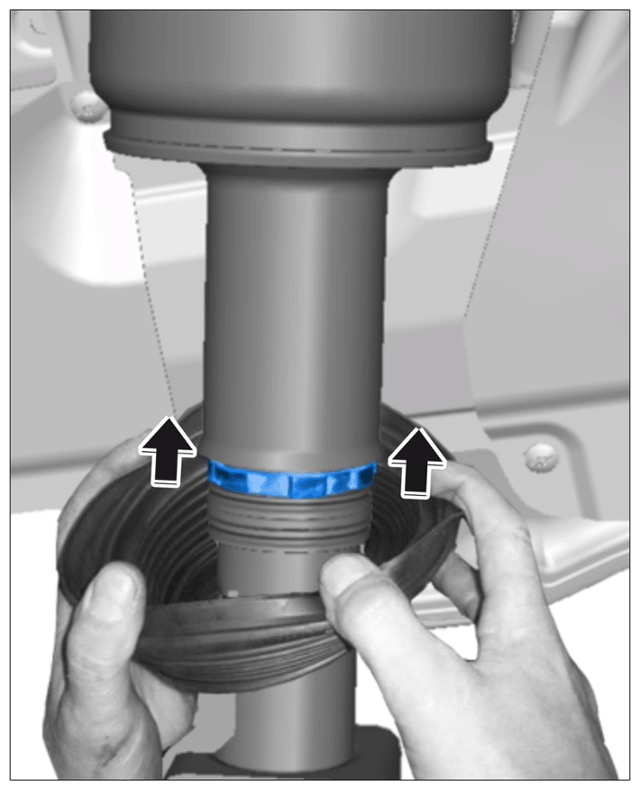

    3. 11.3 2. mechanic is required: Holding the air spring at the top cover prevents the rolling piston from becoming inverted. Carefully screw the spring compressor apart until the rolling piston slips off the safety catch on the shock absorber.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Pressing air spring with rolling piston off the shock-absorber safety catch

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Pressing air spring with rolling piston off the shock-absorber safety catch; safety catch visible

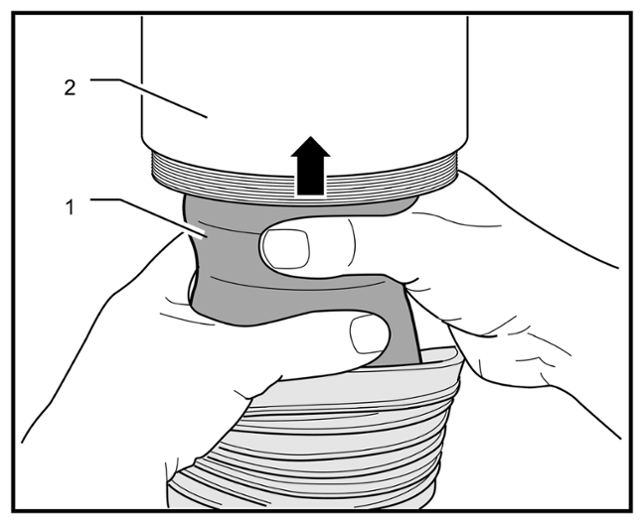

    4. 11.4 Remove the air spring -2-  slide the bellows down and secure it (second mechanic required!). Grasp rolling piston -1-  and remove it upward from the shock absorber by turning slightly to the left/right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air-spring strut rolling piston
