Subsequent Work For Removing And Installing Spring Strut (Air Springs) On Passenger's Side

  1. Install torque support.

    > 103719 Removing and installing torque support - section on "INSTALLING "

  2. Clip in bleeder valve -1-  at the coolant reservoir.

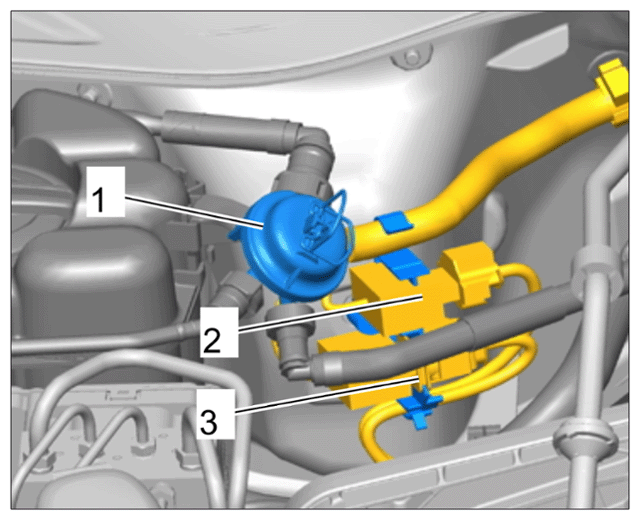

    G16329714Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clipping in wire harness at right of engine compartment

  3. Clip plug connections -2, 3-  into the holders at the end plate.
