Replacing Rear Level Sensor

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

• In running gear with level adjustment, a level sensor is installed on each spring strut.
• The level sensor is screwed to the chassis subframe and front upper wishbone.
• Make sure that the level sensor is fitted with the swivel range of the lever towards the outside of the vehicle.

1. Counter with an open-ended wrench on the two flats -1-  and unscrew the fastening nuts -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

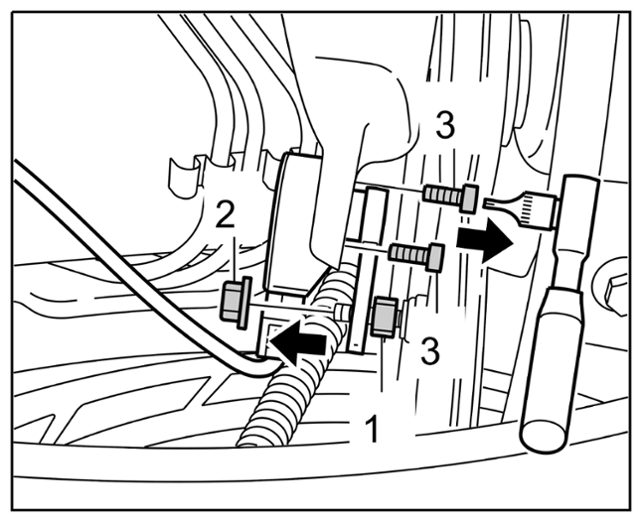

   Removing level sensor

   Illustration shows example

2. Unscrew both fastening screws -3-  .
3. Release electric connector -a-  and pull it off -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

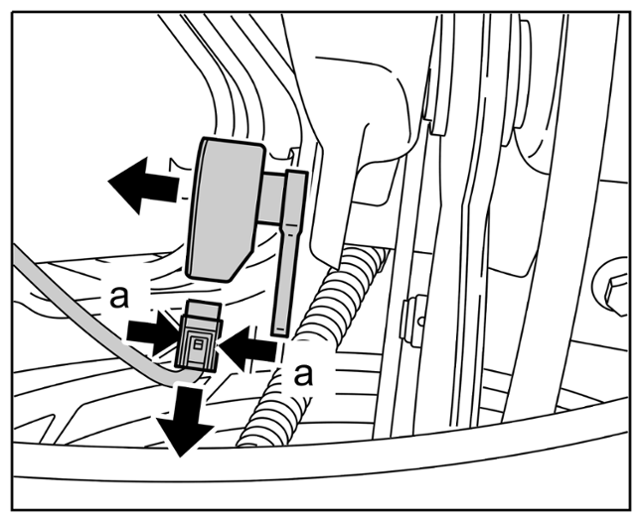

   Plug connection for level sensor

   Illustration shows example
