Installing Rear Level Sensor

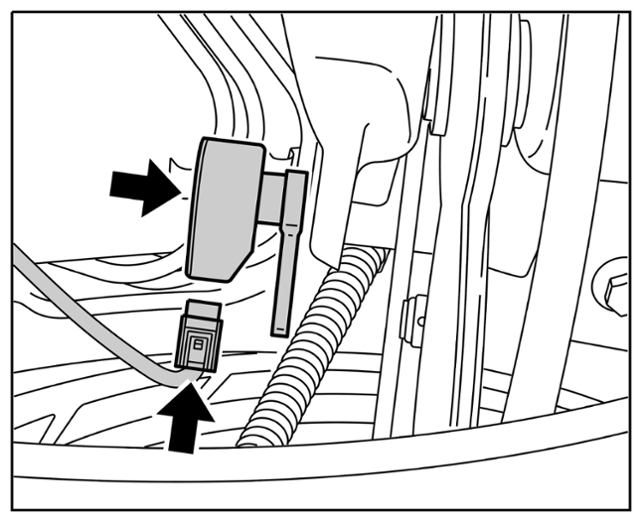

Plug in electric connector -arrow- on the level sensor -arrow- until the connector engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection for level sensor

Illustration shows example

Information
- In running gear with level adjustment, a level sensor is installed on each spring strut.
- The level sensor is screwed to the chassis subframe and front upper wishbone.
- Make sure that the level sensor is fitted with the swivel range of the lever towards the outside of the vehicle.
Tighten the fastening screws -3- ;
> Refer to the appropriate Tightening torques service information.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing level sensor

Illustration shows example
Engage level sensor lever and position the sensor.
Position the fastening nut -2- , counter with an open-ended wrench on the two flats -1- and tighten the nut
> Refer to the appropriate Tightening torques service information.

If a new level sensor is installed, then the control unit for level adjustment must be calibrated.
