Removing Front Level Sensor
Information
- Some of the repair illustrations show only one side of the vehicle or a similar component.
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
Information
- In running gear with level adjustment, a level sensor is installed on each spring strut.
- The level sensor is screwed to the body and upper control arm.
- Turn the steering as far as required until you have easy access to the level sensor.

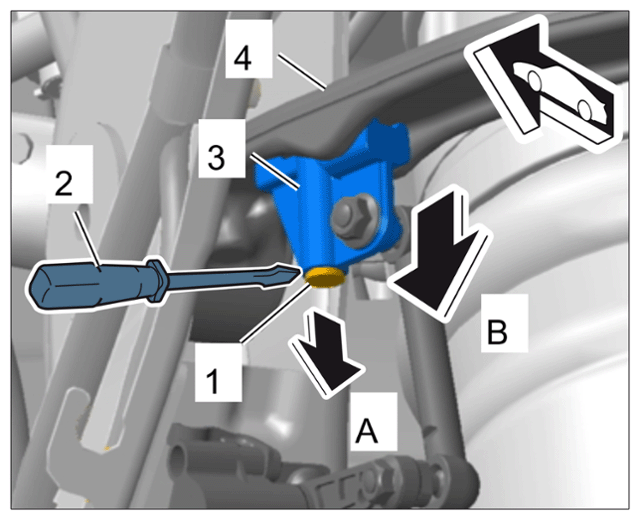

- Loosen locking pin -1-
using a suitable tool -2-
and remove it from the holder -3-
(-A-
).
Removing level sensor holder
- Press holder -3- out of the upper trailing arm -4- (-B- ).

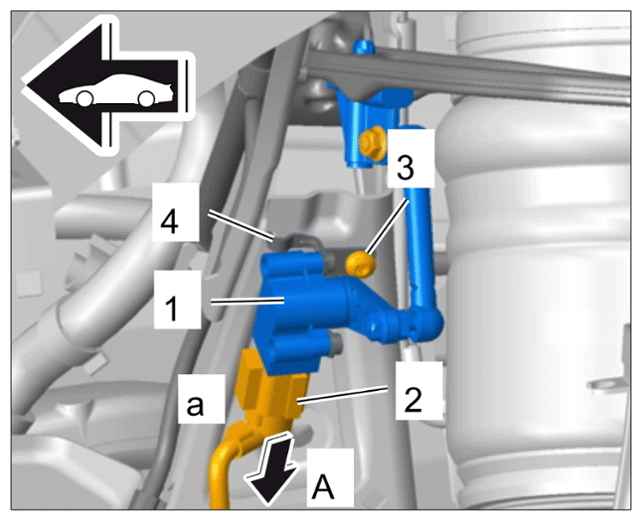

- Release electric plug connection -2-
(-a-
) and pull it off -A-
.
Removing sensor for levelling system
- Unscrew fastening screw -3- .
- Remove level sensor -1- and holder -4- .
