Installing Front Level Sensor

Information

• In running gear with level adjustment, a level sensor is installed on each spring strut.
• The level sensor is screwed to the body and upper control arm.

1. Position level sensor -1-  and holder -4-  and screw in the fastening screw -3-  .

   > 4X00IN TIGHTENING TORQUES FOR LEVELLING SYSTEM/PORSCHE DYNAMIC CHASSIS CONTROL (PDCC)

   Make sure that the level sensor linkage is facing outwards. > Installing front sensor for levelling system

2. Plug in electric plug connection -2-  on the level sensor -1-  (-A-  ) and lock it -a-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

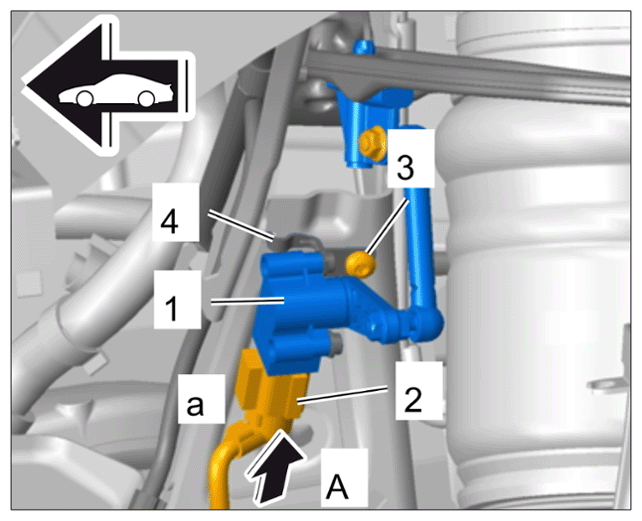

   Installing front sensor for levelling system

3. Press linkage holder -1-  into the upper trailing arm -2-  (-A-  ).

   Make sure that the holder -1-  is seated correctly in the upper trailing arm -2-  (-B-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

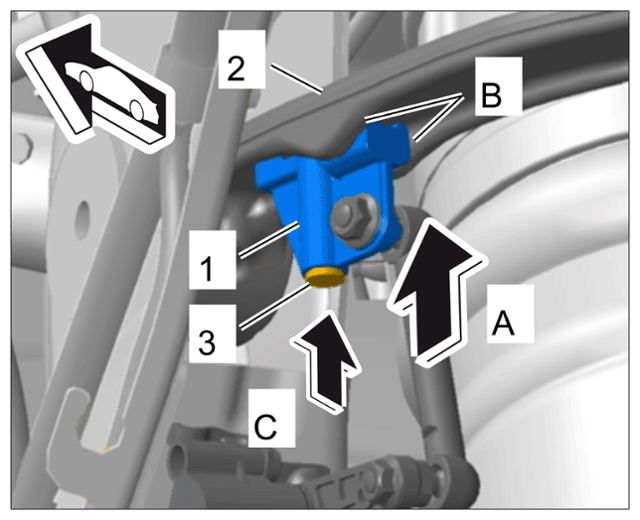

   Installing holder

4. Press locking pin -3-  as far as it will go into the holder -1-  (-C-  ).
