Removing Levelling System (Selector Switch)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

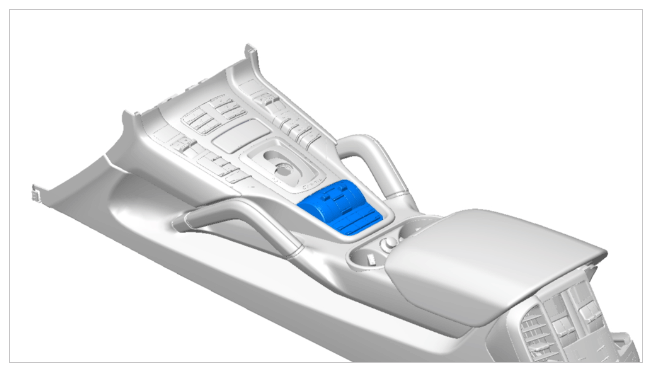

Installation position of levelling system (selector switch)

1. Unscrew fastening screw -3-  from the selector switch -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

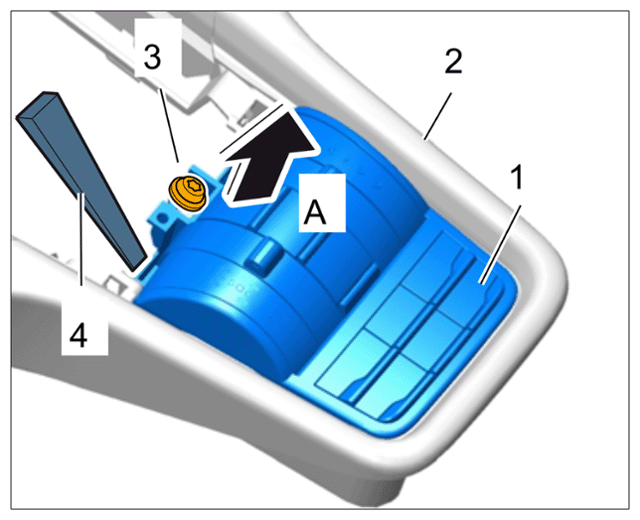

   Removing selector switch for levelling system

2. Unclip selector switch -1-  using a suitable tool -4-  , e.g. a plastic spatula, to release it from the switch console -2-  (-arrow-  ).
3. Remove selector switch -1-  and pull off electric connector -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

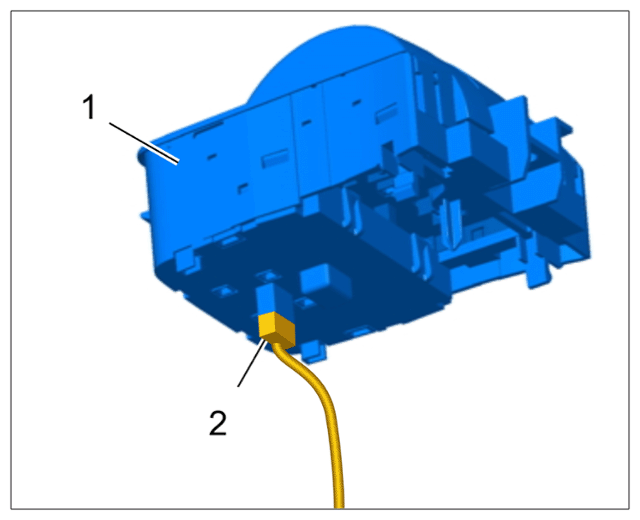

   Selector switch connector

4. Remove levelling system (selector switch).
