Installing Pdcc Control Unit

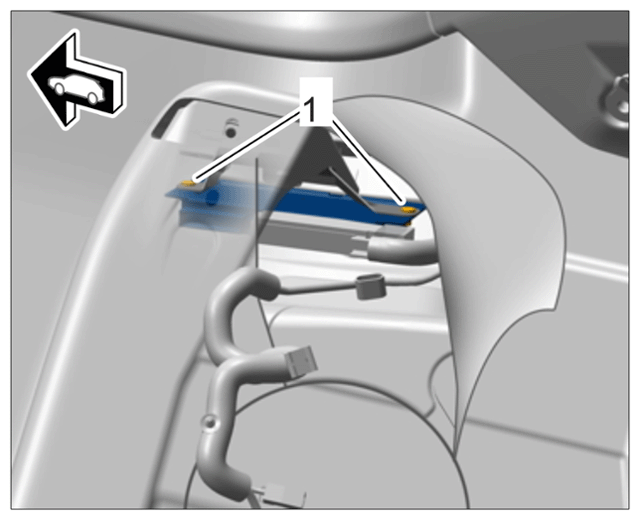

1. Move PDCC control unit into installation position.
2. Screw in and tighten two fastening nuts -1-  on the PDCC control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Control unit mounting

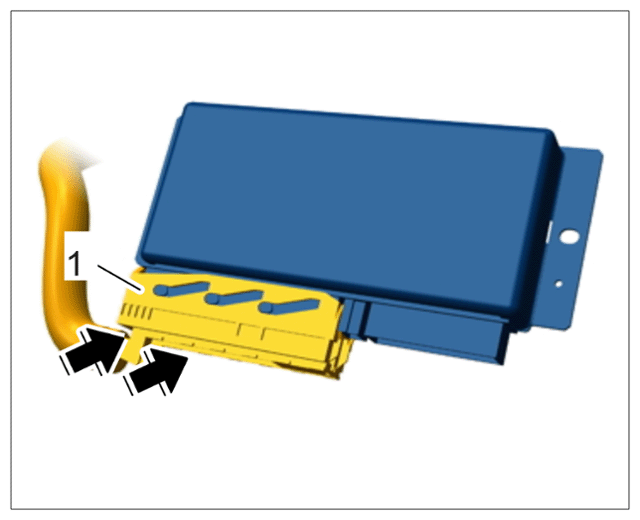

3. Plug in connector -1-  on the PDCC control unit and lock it -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plugging in connector

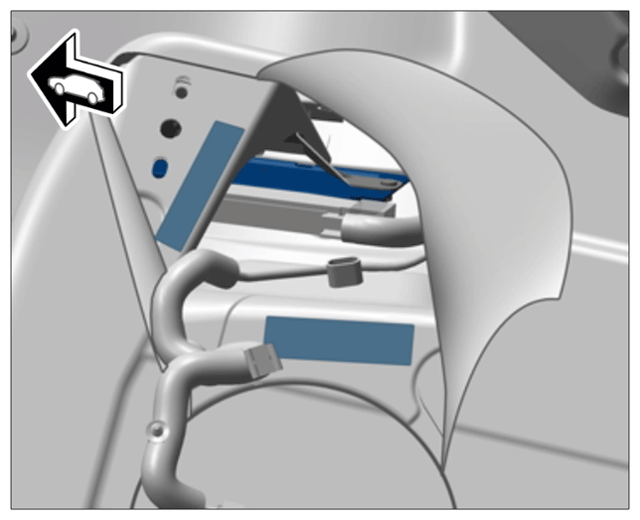

4. Secure the carpeted floor.
   1. 4.1 Affix double-sided adhesive tape in the -marked area-  and pull protective film off the adhesive tape.
   2. 4.2 Fold carpeted floor over and press down firmly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing carpeted floor
