WM, 4301IN Filling Specification For Air-Spring Strut: Information: Overview
Information
The graphics in this document may differ from the original, but this does not affect their validity and relevance..

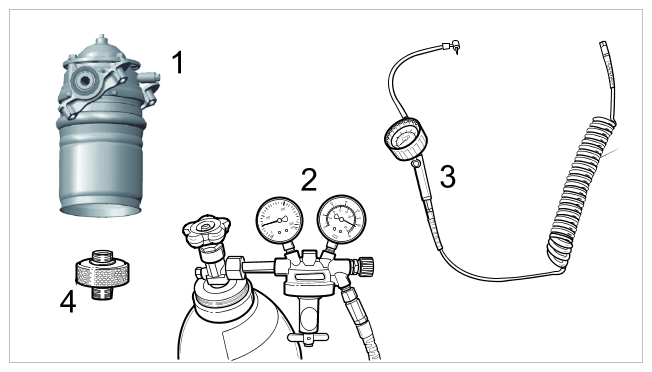

Filling unit
| -1- | Upper part of air-spring strut with pressure control valve. The > T10157/1 - adapter is fitted to the pressure control valve before filling the air-spring strut. |
| -2- | Compressed gas bottle with pressure gauge (pressure gauge unit with at least 17 bar adjustable pressure. The required pressure is set on the compressed gas bottle using the pressure gauge unit. The compressed gas bottle is filled with nitrogen.) |
| -3- | > VAS 6231 - Air-Spring Strut Filling Unit (The air-spring strut can be filled with 3 - 4 short individual pressure shots using the air-spring filling unit.) |
| -4- | > T10157/1 - Adapter (The > T10157/1 - adapter is fitted to the pressure control valve before filling the air-spring strut.) |
