WM, 4300IN Position Of Air Suspension Components: Information
The Cayenne Turbo and the optional Cayenne and Cayenne S are equipped with a level adjustment system with full-supporting air suspension on both axles and the electronically regulated damping of Porsche Active Suspension Management (PASM).
The air suspension with level adjustment makes it possible to actively adapt the ground clearance of the Cayenne to the situation in which the vehicle is being used or to its load. More ground clearance off-road by manual adjustment to off-road level or automatic lowering at high speed.
Depending on the load, various vehicle ride heights with various suspension characteristics can be achieved by increasing or decreasing the air volume. The amount of air needed for each air-spring strut is determined by means of a control unit and provided via an air supply consisting of compressor, a solenoid block and accumulator.

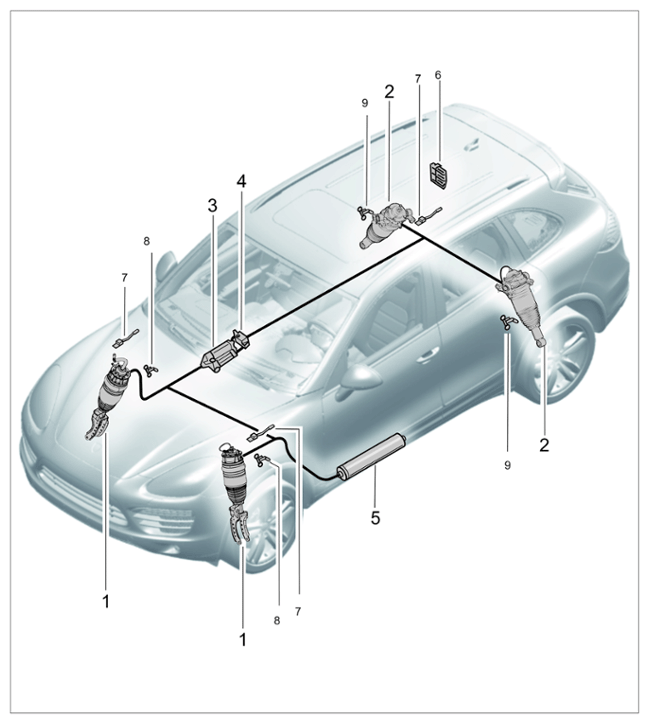

Position of air suspension components
| No. | Description of component | Number | Position |
|---|---|---|---|
| -1- | Air-spring strut, front axle | 2 | Wheel housing/lower control arm |
| -2- | Air-spring strut, rear axle | 2 | Damper housing (body)/wheel bearing housing |
| -3- | Compressor | 1 | Underbody, right |
| -4- | Valve block | 1 | Underbody, right |
| -5- | Pressure accumulator | 1 | Underbody, left |
| -6- | Levelling system/PASM control unit with integrated rear body acceleration sensor | 1 | Luggage compartment, right |
| -7- | Body acceleration sensors - 2 front and 1 rear (rear sensor integrated into levelling system/PASM control unit) | 3 | On front wheel housing (right/left), right side of luggage compartment. The rear body acceleration sensor (7) is integrated into the levelling system/PASM control unit (6). |
| -8- | Self-levelling sensors, front axle | 2 | Control arm, upper |
| -9- | Self-levelling sensors, rear axle | 2 | Control arm, upper |
