Removing Spreader Device For EPB

Information

The pictures shown in this document may differ from the original.

The spreader device (actuator) is located on the rear-axle wheel bearing housing instead of the mechanical spreader device with the parking-brake cable.

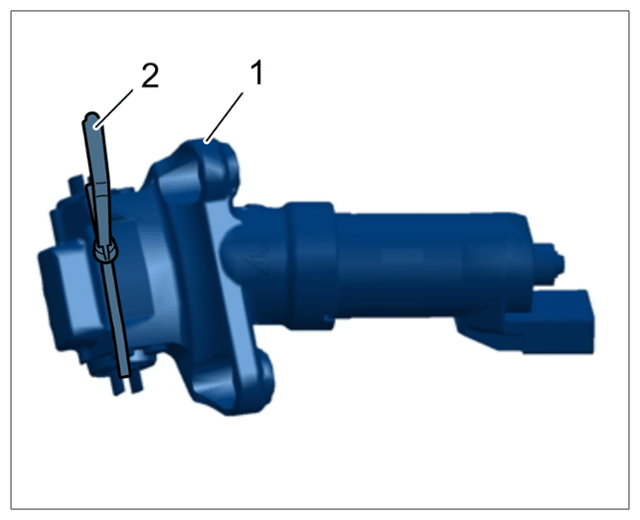

Fig 1: EPB Actuator Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

EPB actuator

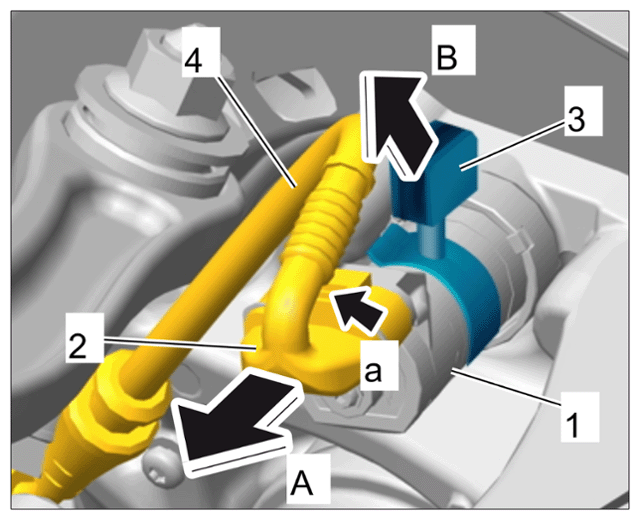

1. Release electric plug connection -2-  at the actuator -1-  (-a-  ) and disconnect it -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connection for actuator

2. Unclip wire harness -4-  from the retaining clip -3-  .

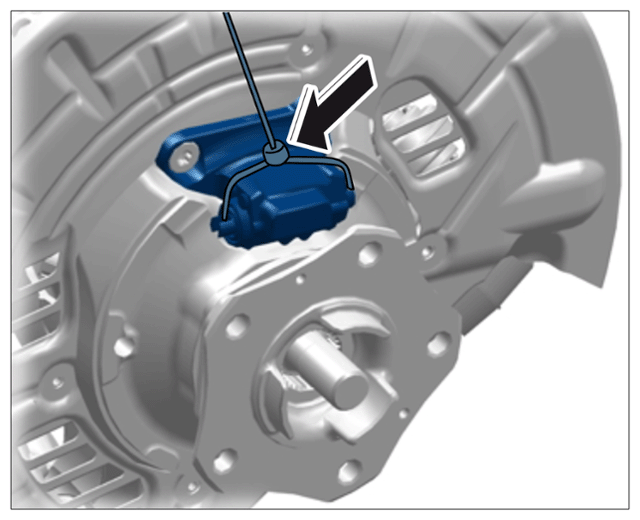

3. If the actuator has to be re-used, secure it in the brake shoe mountings with a tie-wrap to prevent it from twisting -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Servo motor lock

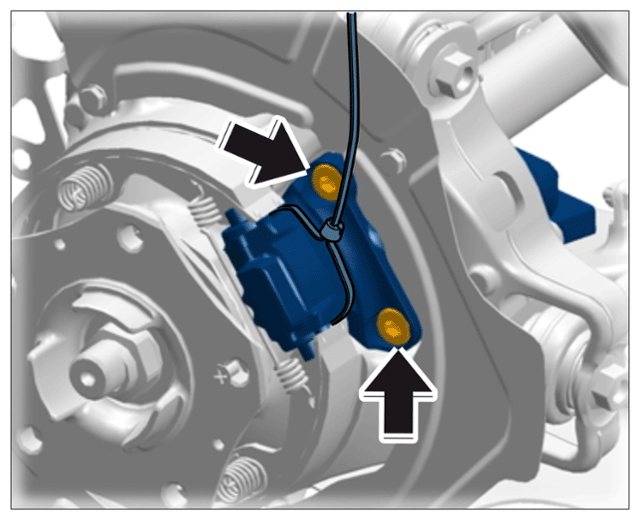

4. Loosen actuator screws -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for actuator

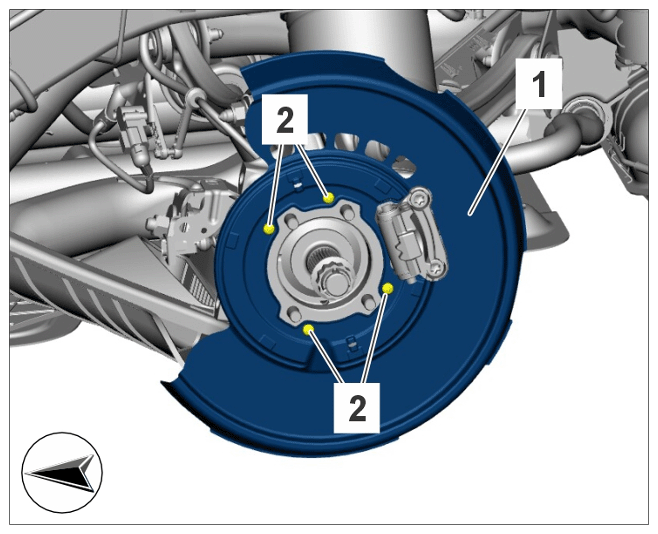

5. Loosen screws -2-  on brake-disc cover plate -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear brake-disc cover plate

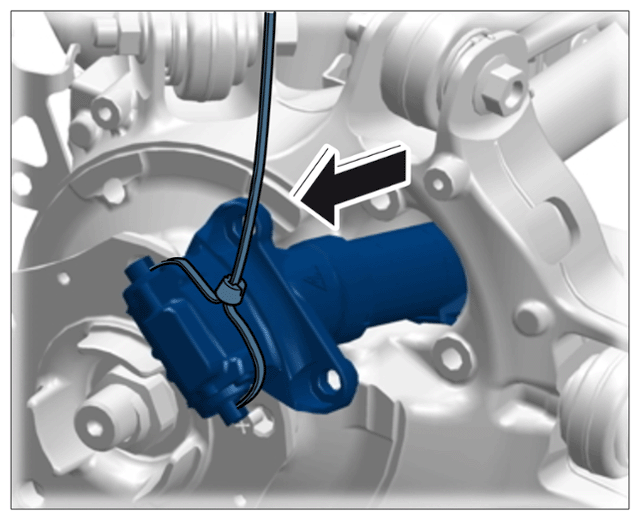

6. Turn the wheel hub so that the actuator can be removed carefully. > Removing actuator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing actuator
