Explanation Of Two-Part Brake Disc
WARNING: This page is about a different variant/trim than selected.

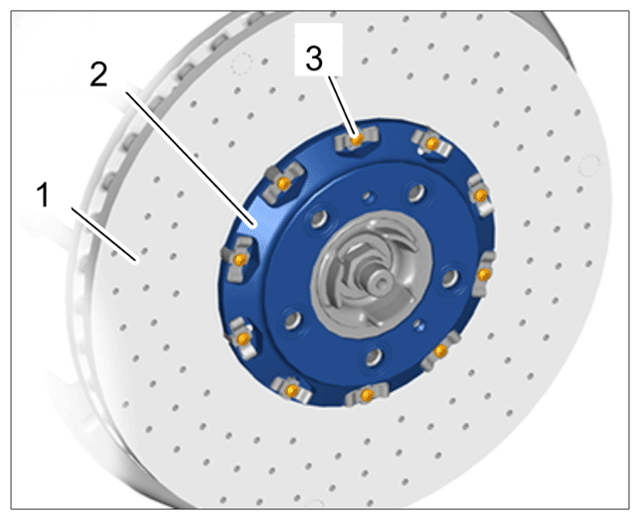

The PCCB brake discs consist of two parts on the front and rear axles. The brake disc -1- is screwed to the brake disc hub -2- with 10 screws (M6) -3- .
Only the complete brake disc is available as a spare part (disc + brake disc hub)!
Do not separate the brake disc hub -2- and brake disc -1- .
Do not attempt to turn the screws -3- . The screws are prevented from turning by compression in the bush.
Changing the tightening torque of the screws -3- will have negative effects on the noise produced.
2-part brake disc
