Checking involves the following tasks:

Visual inspection for surface changes on the brake disc friction surfaces and wear indicators. Indication of wear: Connected surface fracture > 1 cm ²-arrow- , without adding up smaller fractures
> WM, 465102 CHECKING FRONT BRAKE DISC - PCCB (WEAR ASSESSMENT) - section on "Checking"

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

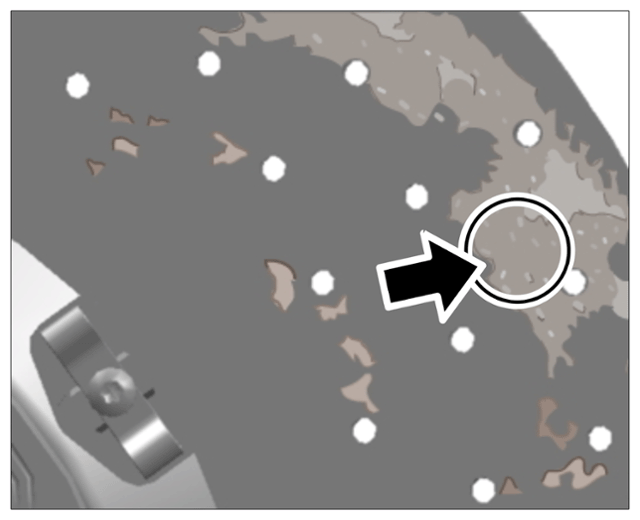

Associated surface fracture
Check surface roughness (Sr) of brake discs (max. 80 μm permitted) since this affects braking comfort (noises), braking behaviour/pedal pressure and brake-pad service life
> 465102 Checking front PCCB brake disc (wear assessment) - section on "CHECKING "

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

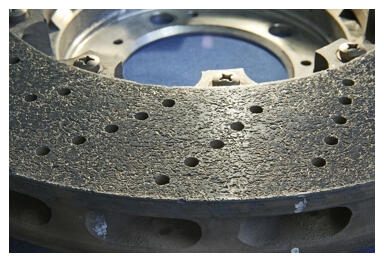

Surface roughness of PCCB brake disc
Check brake discs for minimum thickness -X- . The minimum thickness of the brake disc (example: Min. Th. 37.7 mm) is stamped on the brake disc hub
> 465102 Checking front PCCB brake disc (wear assessment) - section on "CHECKING "

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

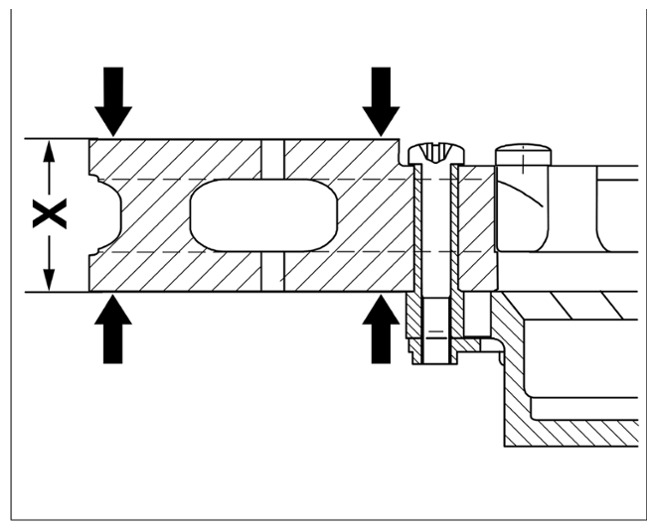

Minimum thickness -X- of PCCB brake disc
Check brake discs for edge damage > Edge damage on PCCB brake disc (damage due to improper use)
> 465102 Checking front PCCB brake disc (wear assessment) - section on "CHECKING "

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

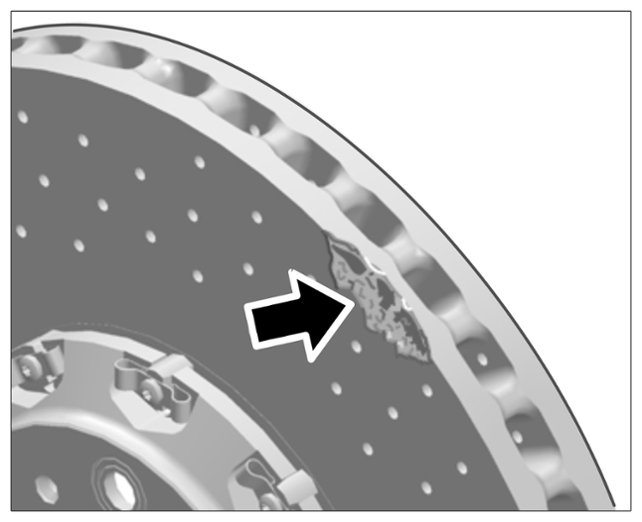

Edge damage on PCCB brake disc
