Checking Front Brake Disc - Minimum Thickness

Information

• Replace brake discs once the maximum wear dimension has been reached.
• Re-machining of brake discs is not permitted!

As the pressure force of a brake piston on the brake pad varies in magnitude, different areas of wear arise on the friction surface. The brake disc can basically be divided into two areas of wear:

-A-  Outer and inner wear area.

-B-  Central wear area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

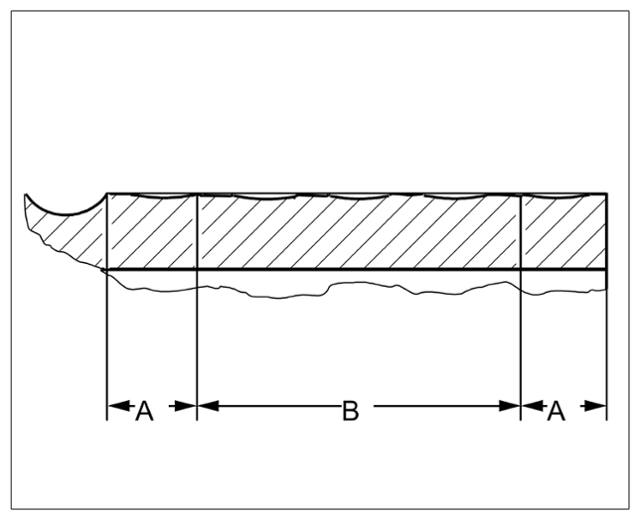

Wear areas A and B

The central wear area -B-  is the area with the highest degree of wear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

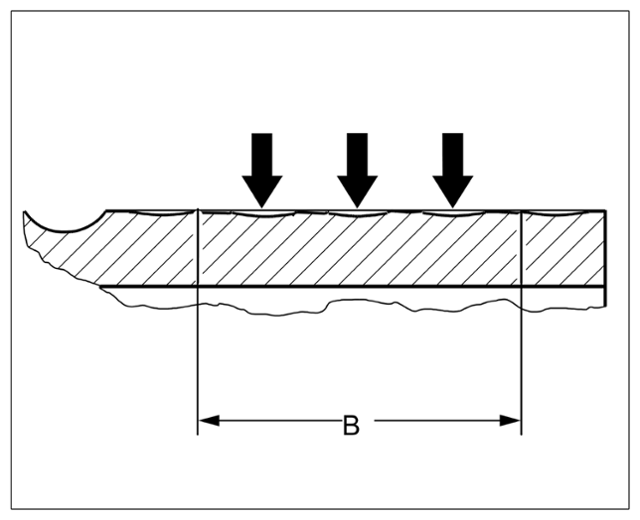

Wear area B

Measure the brake discs using a suitable micrometer at least three different places (-A, B, C-  ), offset by 120°.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

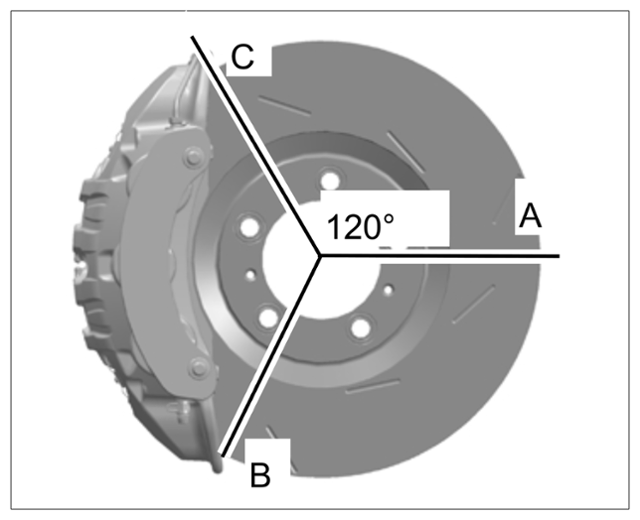

Measurement points for brake disc thickness
