Removing Mounting Saddle

WARNING: This page is about a different variant/trim than selected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

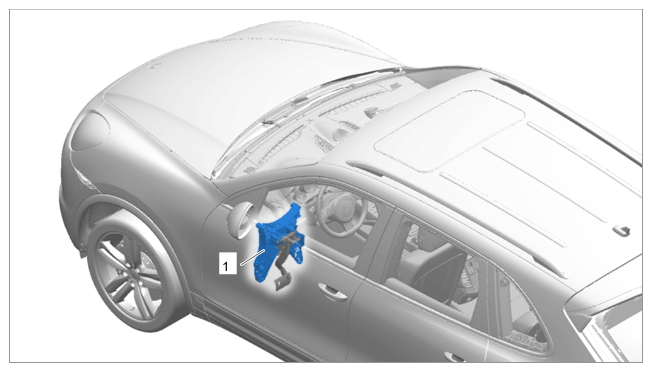

Installation position of mounting saddle

Remove relay carrier at the right -2- next to the brake pedal.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

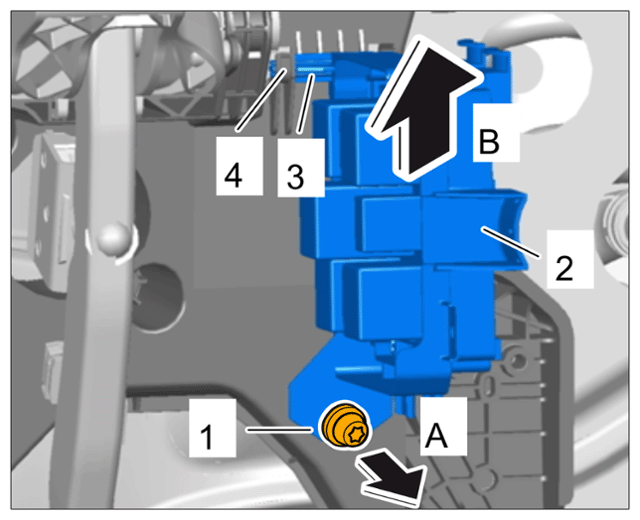

Removing relay carrier
1. 1.1 Remove fastening screw -1- for the relay carrier -2- at the right next to the brake pedal.
2. 1.2 Pull the relay carrier down and to the rear -A- and remove it from the lower guide.
3. 1.3 Pull the upper guide -3- for the relay carrier up -B- out of the bracket -4- on the mounting saddle.

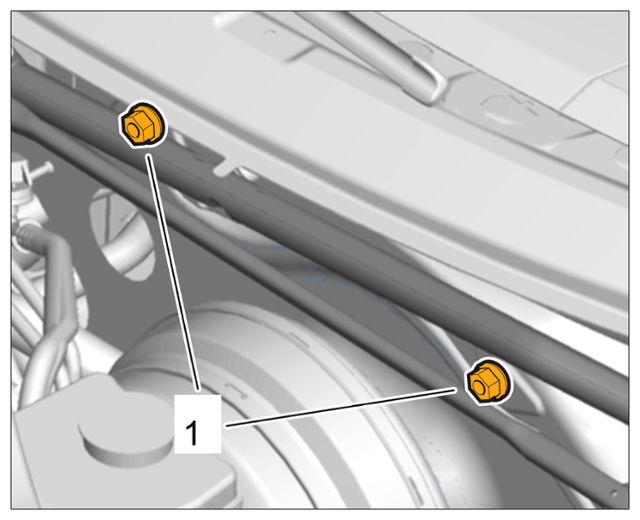

Remove fastening nuts -1- for the brake booster under the dashboard.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing brake booster

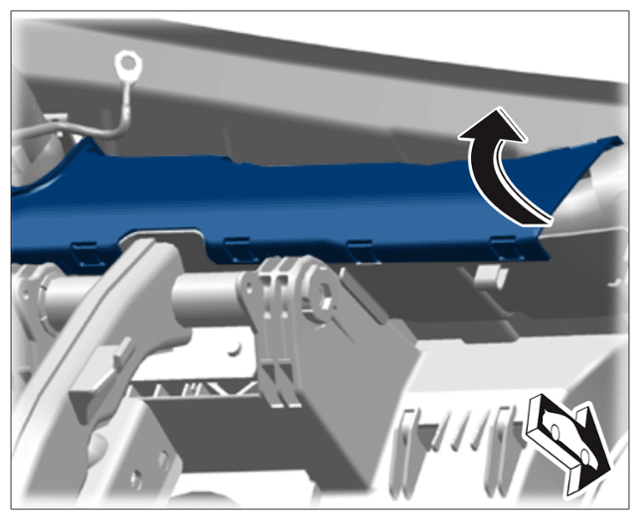

Unclip cable duct cover from main wire harness against the direction of travel -arrow- and cut the tie-wraps (three in cable duct and three on the left of the cable duct).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Opening cable duct

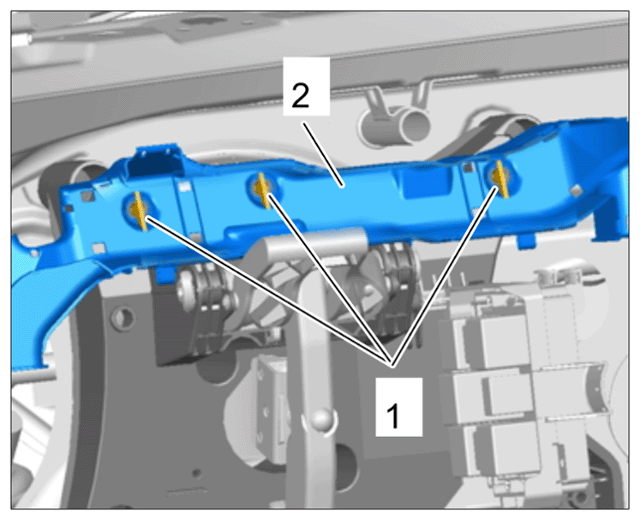

Unclip fixing clips -1- for the cable duct -2- on the mounting saddle using a suitable tool, e.g. pointed-nose pliers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips on cable duct

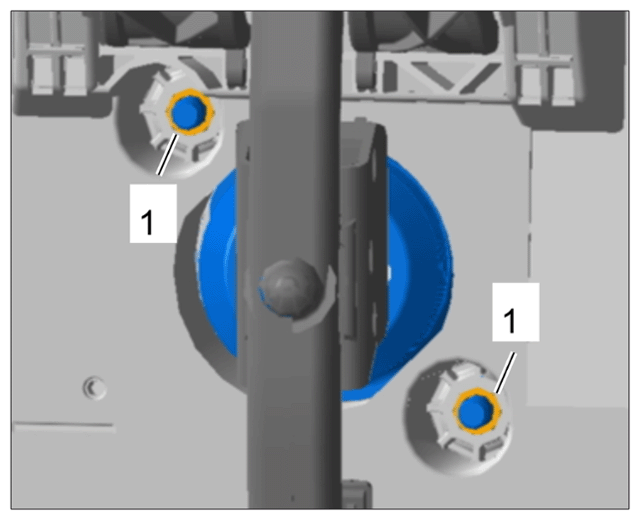

Unscrew the top fastening screws -1- for the mounting saddle in the plenum panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for mounting saddle at the top

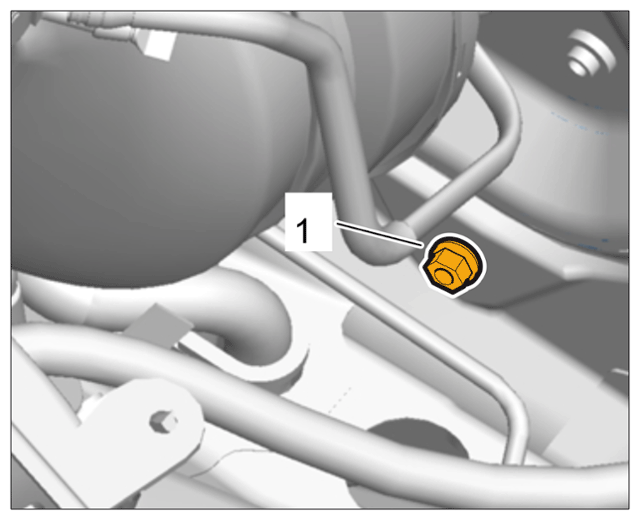

Unscrew fastening screw -1- for the mounting saddle at the bottom of the plenum panel, under the brake booster.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for mounting saddle in plenum panel at the bottom

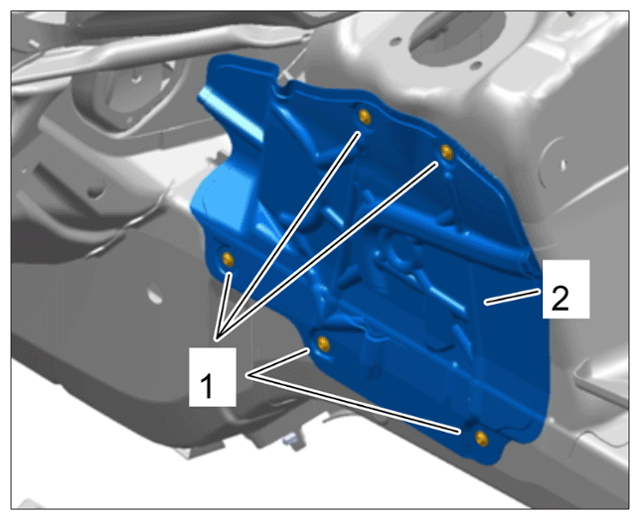

Unscrew fastening screws -1- for the heat shield -2- at the left of the primary catalytic converter on the longitudinal member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield, left

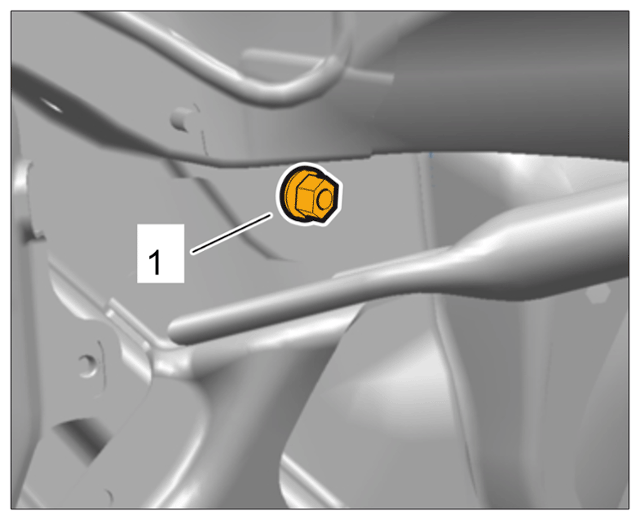

Unscrew the bottom fastening screw -1- for the mounting saddle through the opening in the wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for mounting saddle at the bottom
Remove mounting saddle from the vehicle.
