Removing Brake Pedal

WARNING: This page is about a different variant/trim than selected.

Information

The pictures shown in this document may differ from the original.

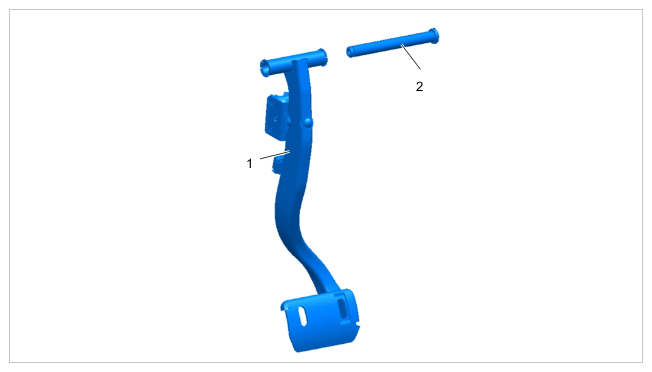

Fig 1: Overview Of Brake Pedal Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview

1	Brake pedal
2	Brake pedal shaft

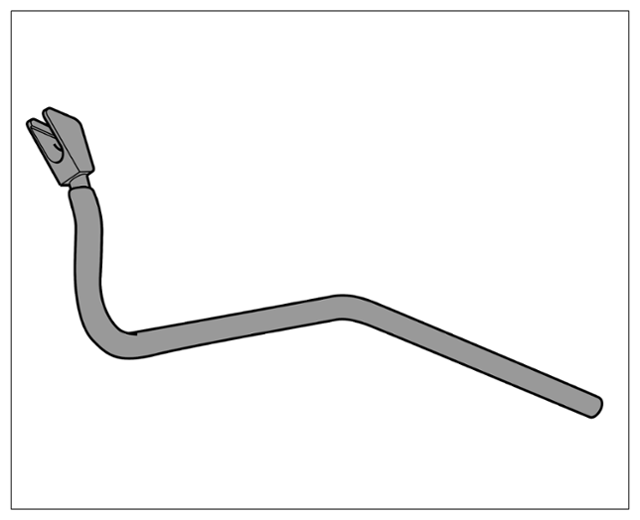

Disengage brake push rod from the brake pedal mounting using > T10189 - release tool . Observe the following procedure for this purpose:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

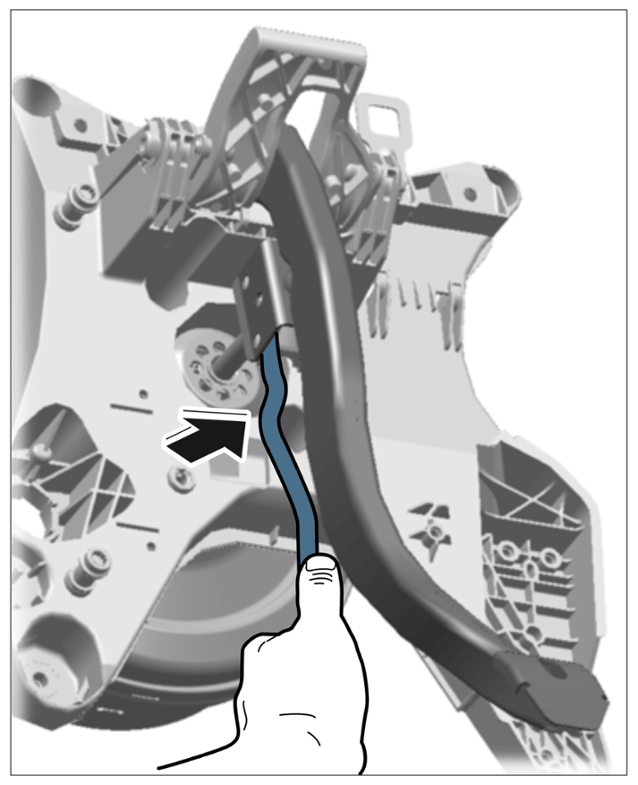

Pressing out brake pedal

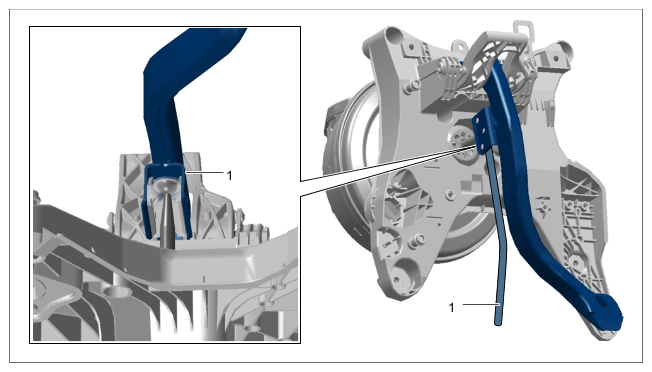

1.1 > T10189 - Release tool-1- must be positioned in such a way that the fork is at the correct position in the brake pedal mounting (inset shows fork engaged; view looking away from direction of travel).

1.2 > T10189 - Release tool must be positioned in such a way that it is located in the right mould of the support and is perpendicular to the vehicle floor. Deflection point of force (bend in the release tool T10189) is right over the recess in the mounting saddle -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

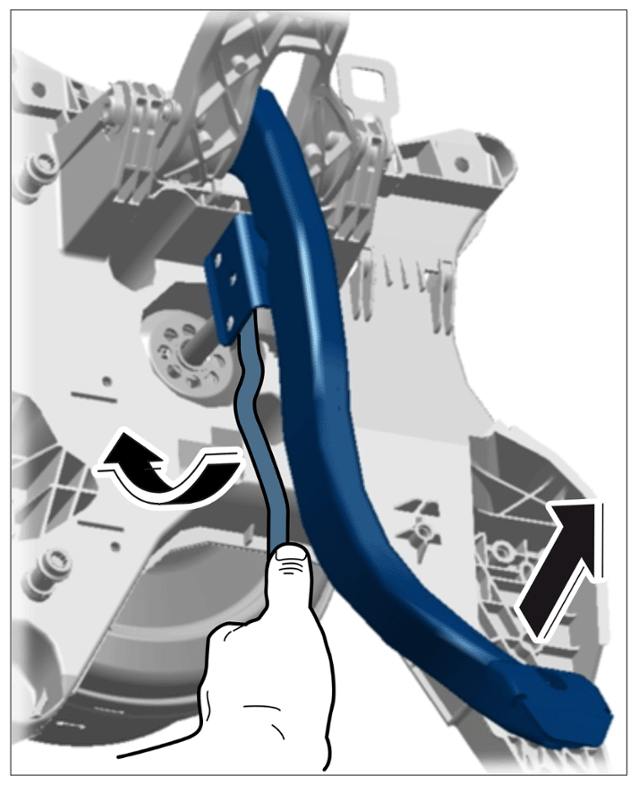

Levering out brake pedal

1.3 When pressing > T10189 - release tool in direction of travel, the brake pedal mounting is pressed apart and the ball of the push rod is released. At the same time, pull the brake pedal away from the direction of travel and release the brake pedal from the push rod.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

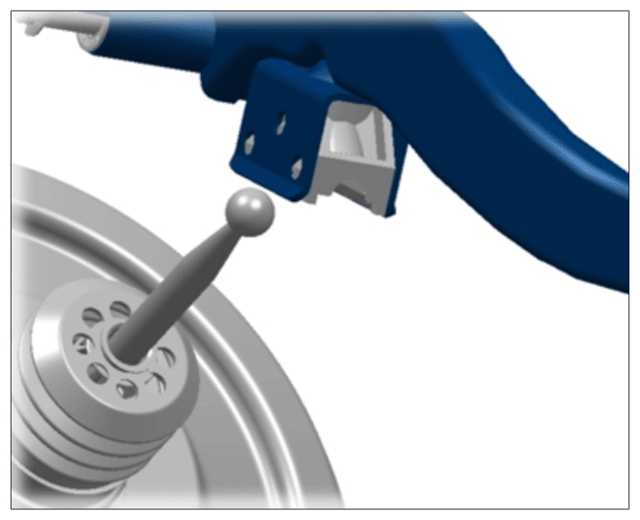

Releasing push rod from brake pedal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Released brake pedal

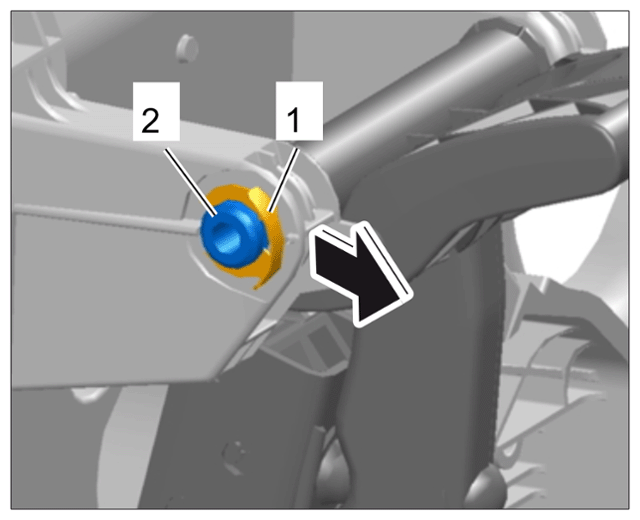

Pull out the lock -1- at the left of the brake pedal shaft -2- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake pedal lock
Using a hammer, press the brake pedal shaft -2- out by a few millimeters with short blows from left to right.

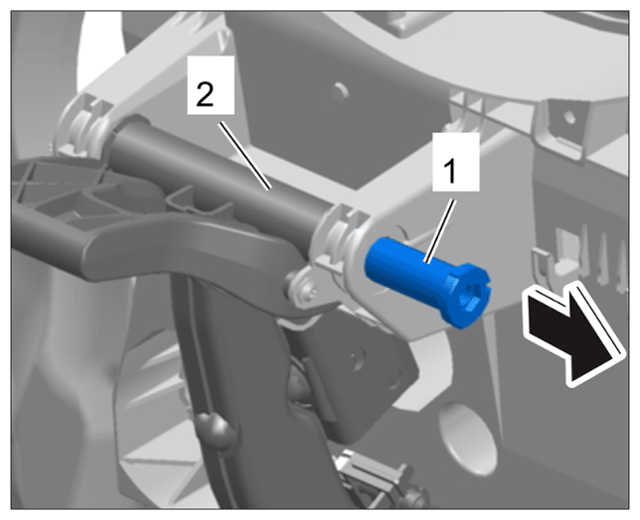

Insert a screwdriver under the head of the brake pedal shaft -1- (right side). Carefully lever the brake pedal shaft -1- towards the centre of the vehicle (cardan tunnel) and out of the brake pedal -2- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing out brake pedal shaft
