Removing Vacuum Pump
WARNING: This page is about a different variant/trim than selected.
Information
The pictures shown in this document may differ from the original.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

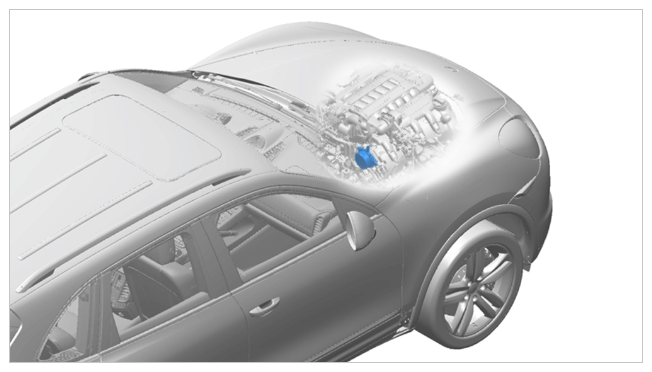

Installation position of vacuum pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

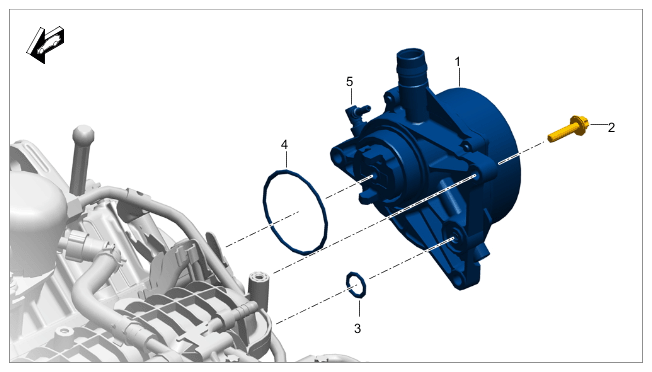

Vacuum pump with connections
| 1 |
Vacuum pump |
| 2 |
Screw, M6 x 25 |
| 3 |
Sealing ring |
| 4 |
Sealing ring |
| 5 |
Secondary load connection |

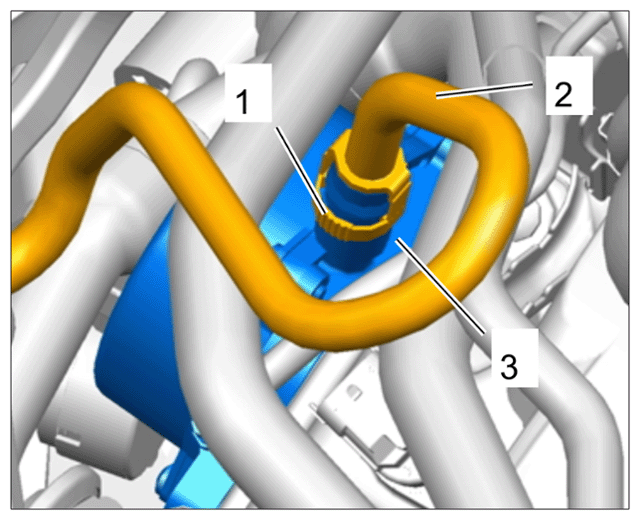

- Loosen the clamp -1-
on the vacuum line -2-
and pull off the vacuum pump -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Vacuum line

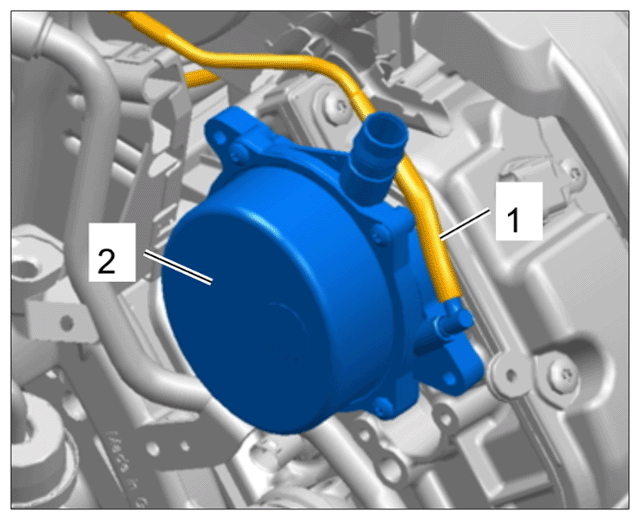

- Disconnect vacuum line -1-
from the vacuum pump -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Vacuum line

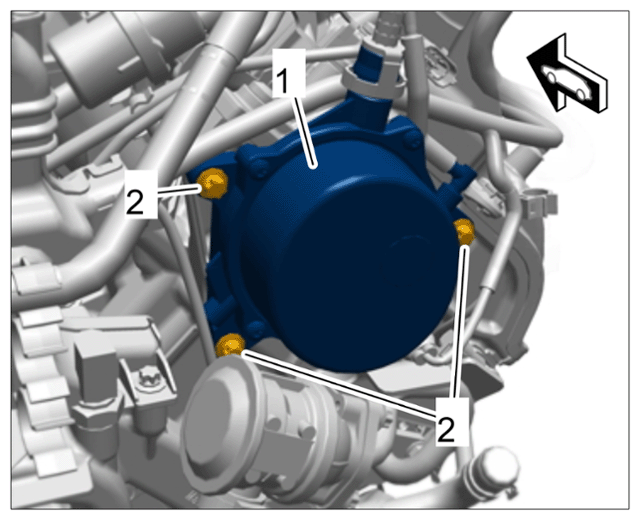

- Remove vacuum pump -1-
.
- 3.1 Unscrew screws -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Vacuum pump
- 3.2 Turn vacuum pump to the side -1-
and remove it.
