Technical Values
WARNING: This page is about a different variant/trim than selected.
TIGHTENING TORQUE SPECIFICATIONS
| Location |
Descri... |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Brake booster to pedals |
Item 2: M8 thread |
Tightening torque |
26 Nm (19 ftlb.) |
+/- 3 Nm (2 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

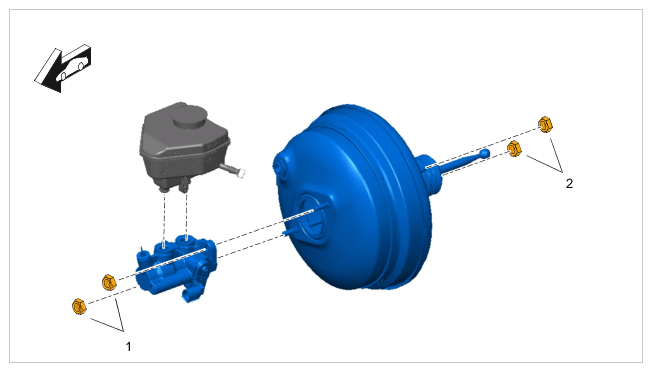

Brake booster/brake master cylinder with reservoir |
