Removing Front Brake CALLIPER

WARNING: This page is about a different variant/trim than selected.

NOTE: NOTIFICATION
Removing/fitting wheels

Risk of damage to (ceramic) brake discs
→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

Information

To gain better access for removal of the brake calliper, turn the steering fully either to the right or left.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of front brake calliper

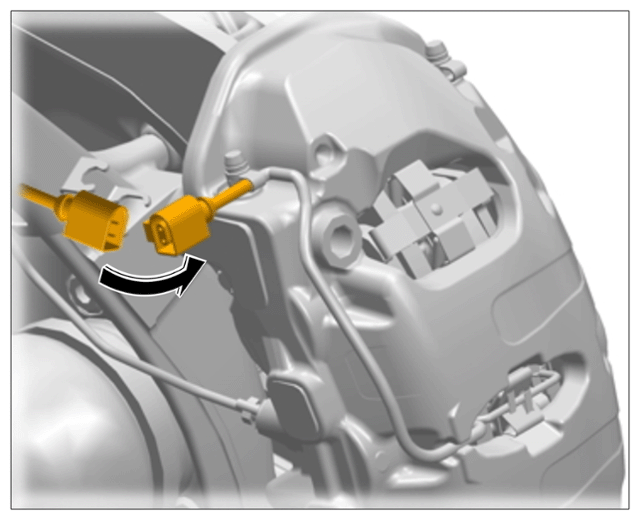

Release and unclip connector for the brake pad wear indicator -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connector for brake pad wear indicator
Disconnect plug connection for speed sensor.
NOTE:
NOTIFICATION
Removal of brake calliper
- Paint defects on brake calliper
  1. Proceed with care when setting back the brake pads.
  2. Protect brake calliper from paint defects using a suitable cloth.
Evenly set back brake pads a little using water pump pliers.
Information

Do not bend the brake lines.
- Detach brake line holders at the wheel carrier.
- For easier access to the holders, turn in the wheel carrier as required.

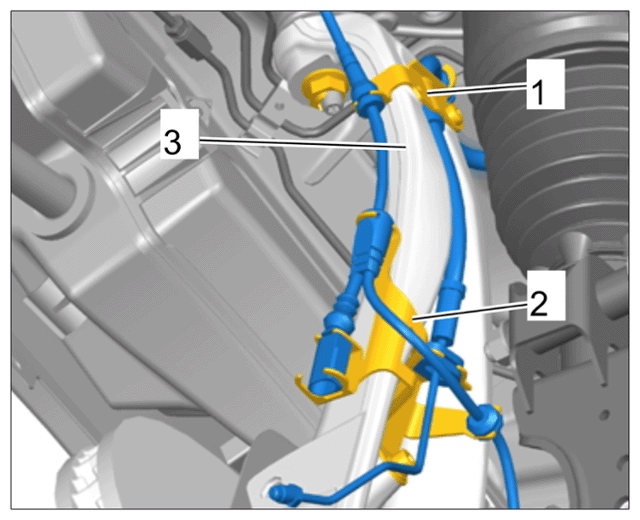

Remove holders -1, 2- for the hydraulic lines on the wheel bearing housing -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for hydraulic lines (shown as an example)
Loosen brake line on the brake calliper. Collect brake fluid in a suitable container. Close off openings of the brake line and brake calliper using suitable stoppers.
Information

Never use power tools (impact bolter) for loosening and securing the brake calliper on the wheel bearing housing.

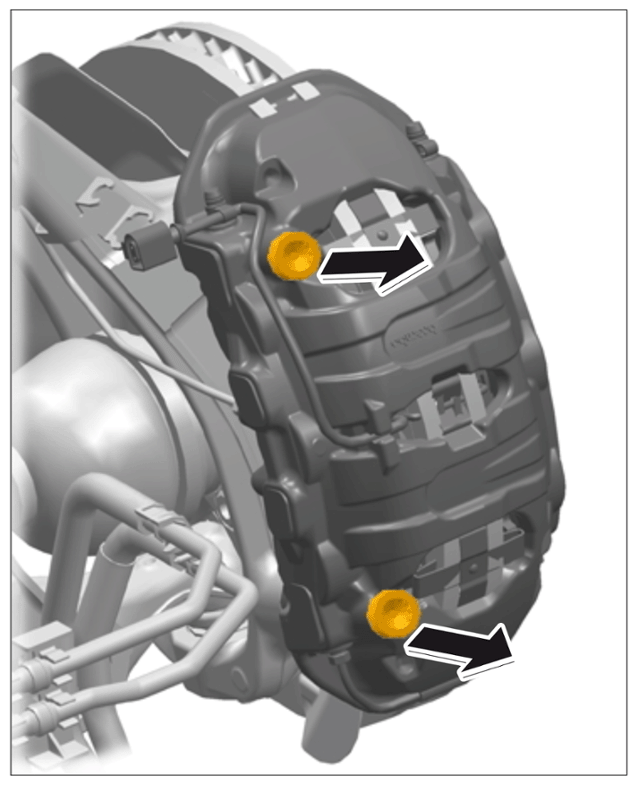

Carefully remove brake calliper from the wheel carrier -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for brake calliper
If new brake pads are fitted, read the information under "Removing and installing disc brake pads"
> 463619 REMOVING AND INSTALLING FRONT BRAKE PADS
