Installing Brake Master Cylinder

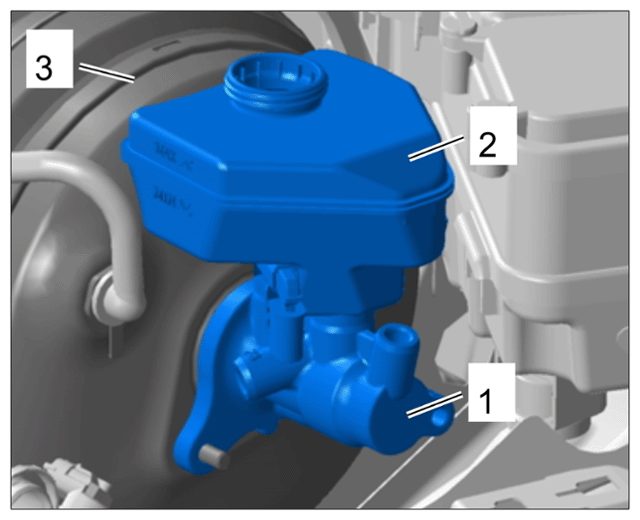

1. Carefully insert the brake master cylinder -1-  together with the brake fluid reservoir -2-  into the brake booster -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting brake master cylinder (shown with reservoir)

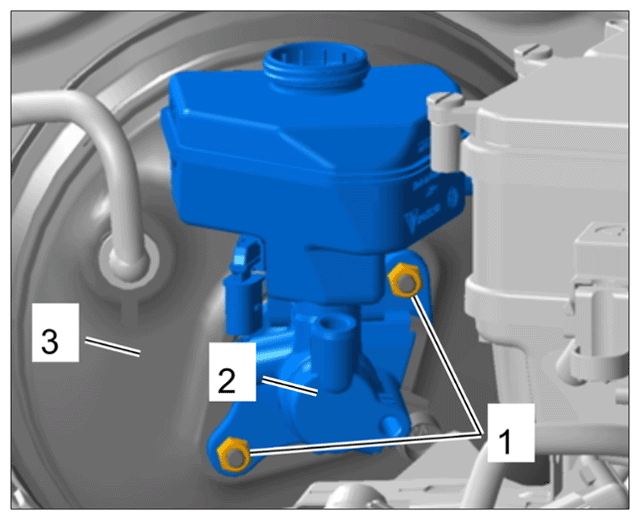

2. Fit fastening nuts -1-  for the brake master cylinder -2-  at the brake booster -3-  . > Tightening torque 23 Nm (17 ftlb.) +/- 2 Nm (1.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nuts for brake master cylinder (shown with reservoir)

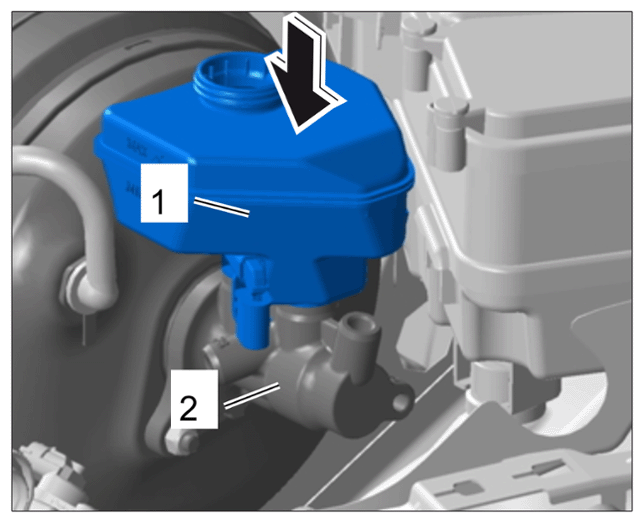

3. If the brake master cylinder was replaced, press the brake fluid reservoir -2-  into the brake master cylinder -2-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting brake fluid reservoir

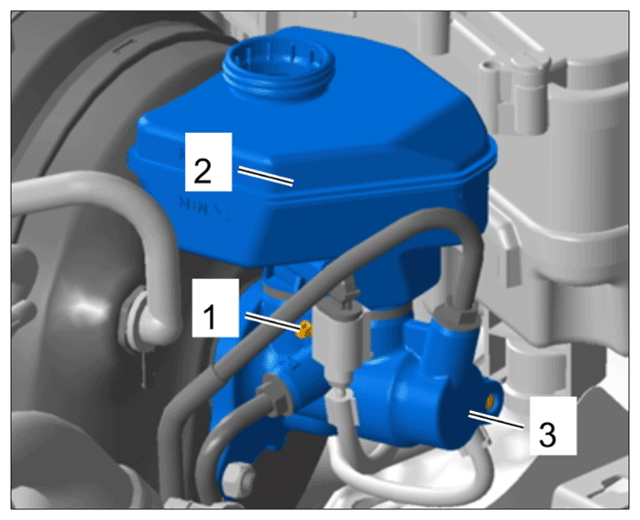

   1. 3.1 Fit fastening screw -1-  for the brake fluid reservoir -2-  on the brake master cylinder -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screw on brake master cylinder

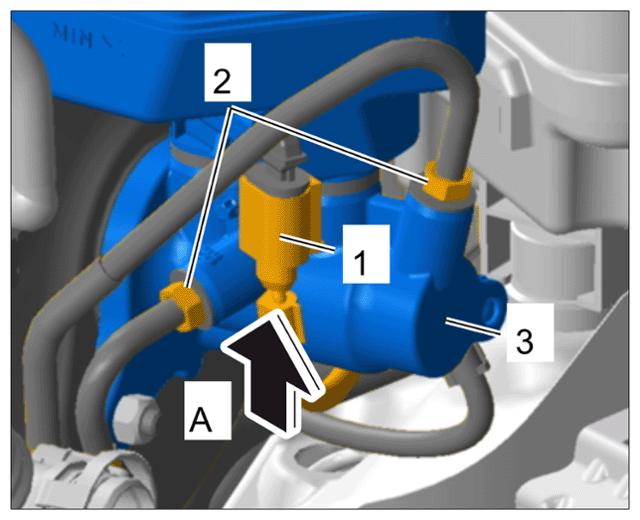

4. Fit brake lines -2-  on the brake master cylinder -3-  . > Tightening torque 18 Nm (13 ftlb.) +/- 2 Nm (1.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting brake master cylinder

5. Connect electric plug connection -1-  for the brake fluid level indicator -arrow A-  and lock it.
6. Fit the brake light switch if necessary.

   > WM 943619 REMOVING AND INSTALLING BRAKE LIGHT SWITCH (CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0)) - section on "Installing"

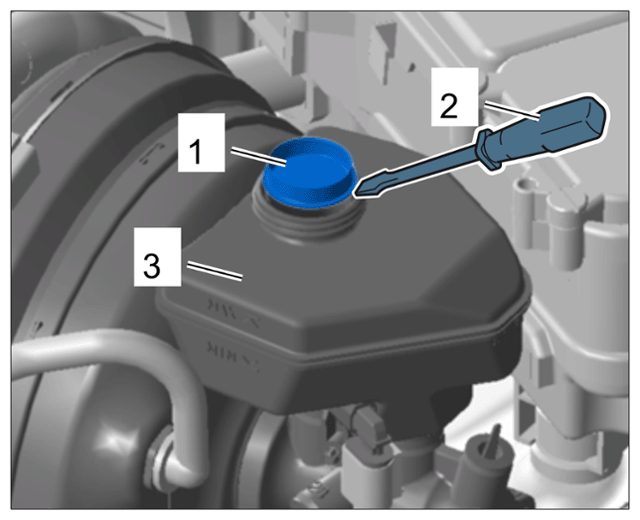

7. Insert sieve filter -1-  into the brake fluid reservoir -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sieve filter in brake fluid reservoir
