Checking Brake Fluid Level

Information

• The brake fluid level must not exceed the MAX marking.
• Check brake fluid quality. Use only new DOT 4 brake fluid.
• Brake fluid can be ordered using the Porsche Electronic Parts Information (PET).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

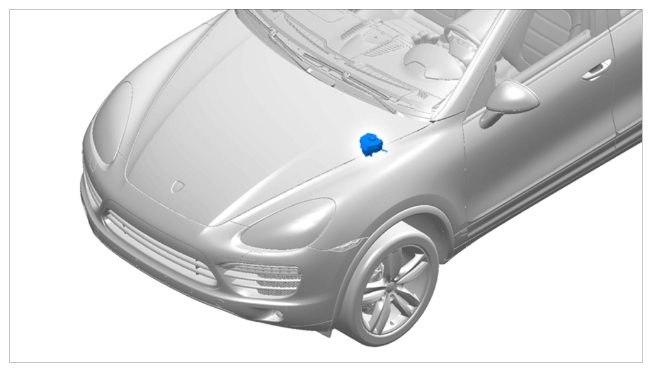

Installation position of brake fluid reservoir

1. Visually check the brake fluid level. The brake fluid level must be between the MIN and MAX markings -1-  . The brake fluid reservoir is located under the left plenum panel cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

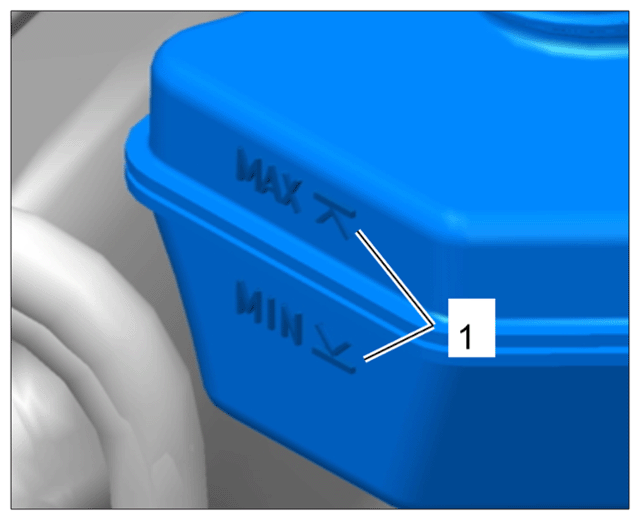

MIN/MAX markings for brake fluid
