Removing Rear Connecting Link
WARNING: This page is about a different variant/trim than selected.
WARNING:
Wheel bearing housing raised incorrectly
- Risk of crushing
- Risk of damage to components
- Wear personal protective gear.
- Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).
- Raise the vehicle.

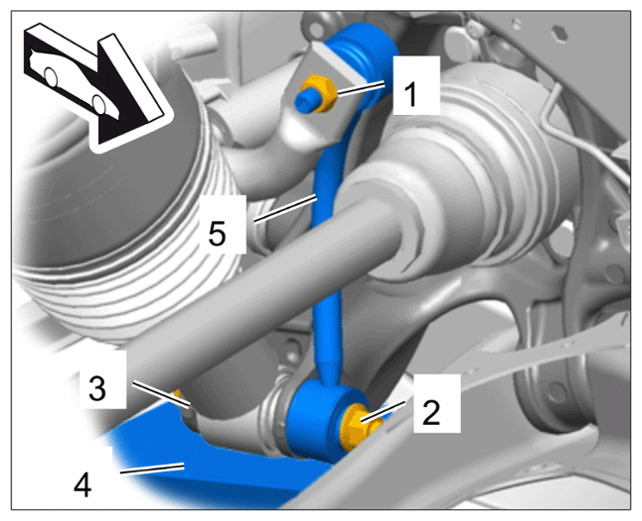

- Loosen fastening screws -1, 2-
on the connecting link -5-
.
Rear connecting link
- Raise the wheel bearing housing -3-
as far as required using a suitable jack -4-
so that the bottom fastening screw -2-
on the connecting link -5-
can be removed easily.
Leave the jack under the wheel bearing housing/spring strut assembly for safety reasons.
- Remove connecting link -5- .
