Installing Rear Connecting Link
WARNING: This page is about a different variant/trim than selected.
Dimension 1 - centre of wheel to lower edge of wing (rear axle shown)
Information
- All screws and threaded joints on the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels or the wheel suspension is raised with a universal vehicle lift. Measurement -1-
from the lower edge of the wing to the middle of the vehicle axle corresponds to vehicle position. The current height values can be found in
> 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT
Always observe the following points!
- On vehicles with air springs, the respective air spring must be bled using the Porsche System Tester.
- Screws and nuts are Geomet-coated and must not be greased.

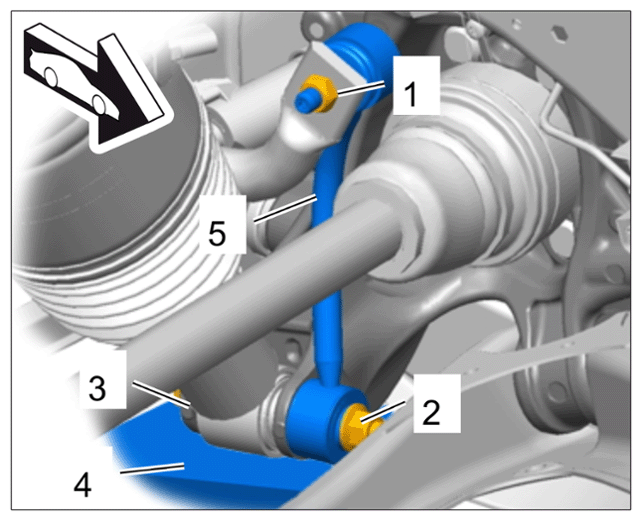

- Fit connecting link -5- on the anti-roll bar using the top fastening screw -1- .
- Raise the wheel bearing housing -3-
as far as required using a suitable jack -4-
so that the bottom fastening screw -2-
on the connecting link can be fitted easily.
Rear connecting link
- Fit fastening screws -1, 2-
for the connecting link -5-
.
Connecting link to anti-roll bar: > Tightening torque 100 (74 ftlb.) Nm --
Connecting link to wheel bearing housing/shock absorber strut: > Initial tightening 90 (67 ftlb.) Nm -- > Final tightening + 90 ° --
