WM, 425855 Replacing Rear Wheel Bearing: Tools

WARNING: This page is about a different variant/trim than selected.
Tools denomination Type Tool number Image
puller hook Special tool > 9229/1
G16318607Courtesy of PORSCHE CARS NORTH AMERICA, INC.

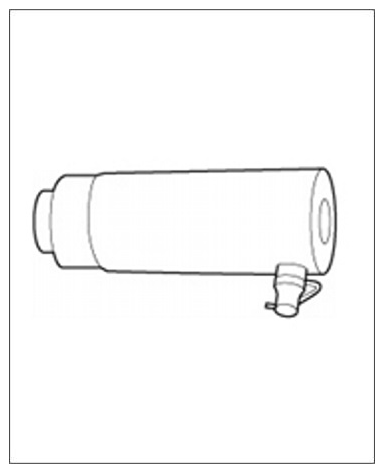

Hydraulic cylinder Vehicle-specific workshop equipment > VAS 6178
G16318608Courtesy of PORSCHE CARS NORTH AMERICA, INC.

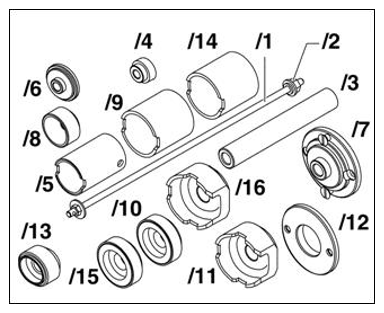

Assembly tool VW tool > T10230
G16318609Courtesy of PORSCHE CARS NORTH AMERICA, INC.
attachments VW tool > T10205
G16318610Courtesy of PORSCHE CARS NORTH AMERICA, INC.

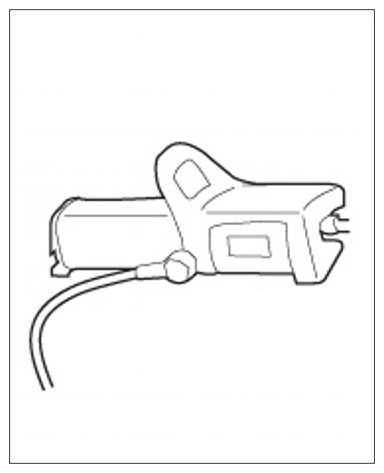

Foot Pump Vehicle-specific workshop equipment > VAS 6179
G16318611Courtesy of PORSCHE CARS NORTH AMERICA, INC.

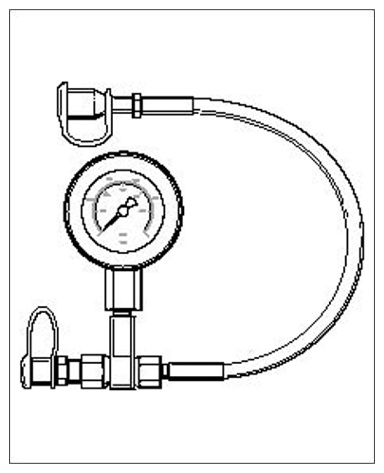

Pressure Gauge with Connection Line Vehicle-specific workshop equipment > VAS 6179/1
G16318612Courtesy of PORSCHE CARS NORTH AMERICA, INC.

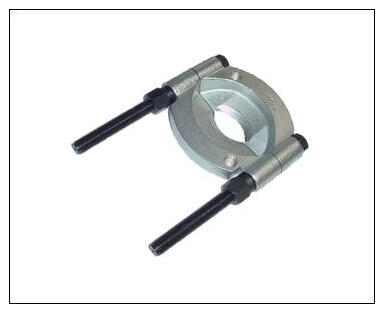

separating device Commercially available tool > Nr.111
G16318613Courtesy of PORSCHE CARS NORTH AMERICA, INC.
