Removing Upper Control Arm At The Rear
WARNING: This page is about a different variant/trim than selected.

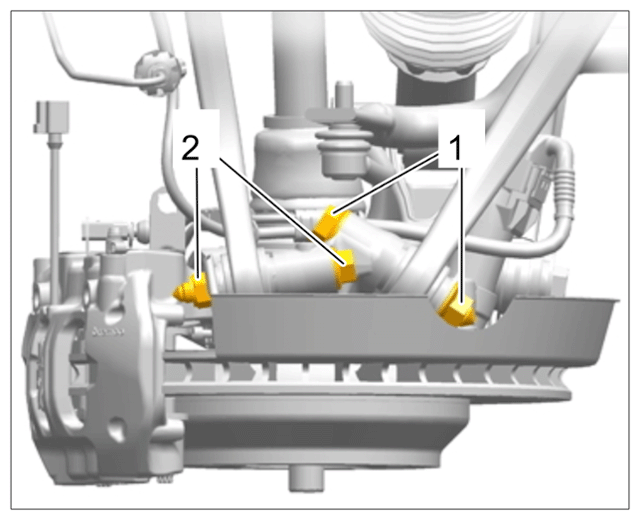

- Remove threaded joint -1-
for the rear control arm on the chassis subframe.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Threaded joint for upper trailing arm (inner)

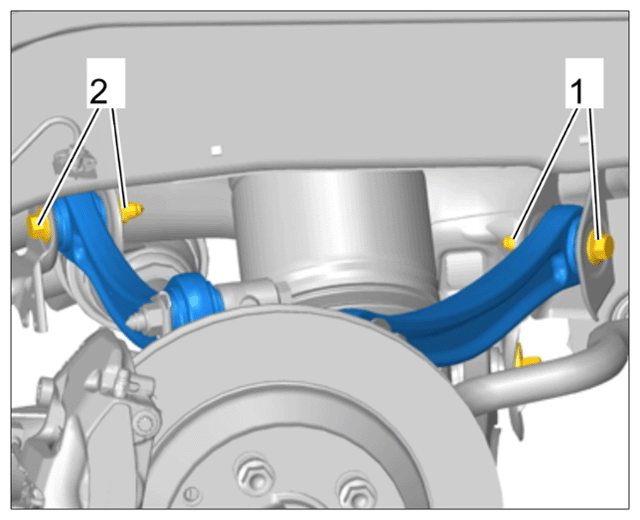

- Remove threaded joint -1-
for the rear control arm at the wheel bearing housing.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Threaded joint for upper trailing arm (outer)
