Removing Upper Control Arm At The Front

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear level sensor on the upper trailing arm at the front

    > 431955 REPLACING REAR LEVEL SENSOR

  2. Remove threaded joint -2-  for the front control arm on the chassis subframe.

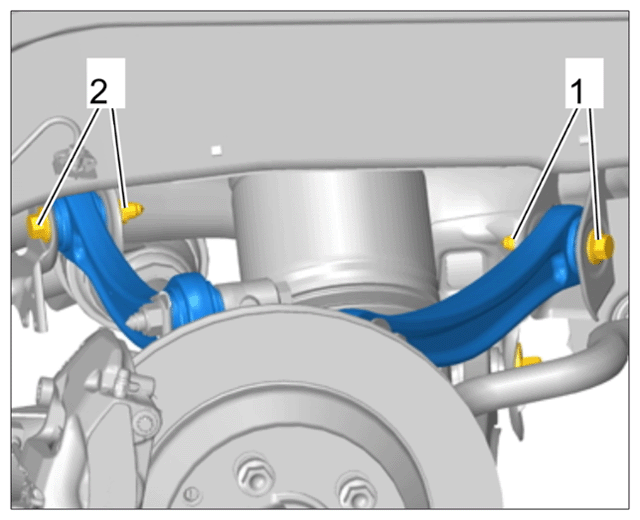

    G16318559Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for upper trailing arm (inner)

  3. Remove threaded joint -2-  for the front control arm at the wheel bearing housing.

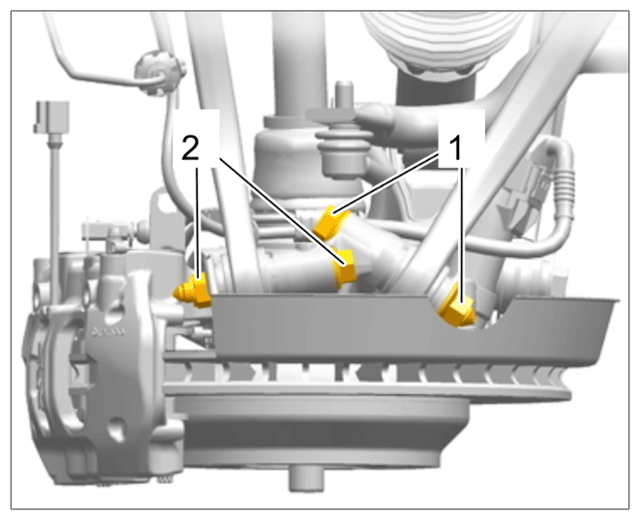

    G16318560Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for upper trailing arm (outer)
