Assembling Drive Shaft: Assembly

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing
    • Secure components to prevent them from falling down.

The drive shaft is assembled in reverse order.

Check all parts to be re-used carefully.

Always replace the removed joints.

Before fitting the joint, slide all bellows, hose clamps and other clamps onto the profile shaft.

Use new circlips and ensure that they are seated correctly.

Use a new protective ring (on transmission side). Check that it is fitted correctly.

  1. Clamp the new joint (use aluminium protective jaws).
  2. Carefully slide the new circlip into the groove on the profile shaft from the side.
  3. Insert profile shaft into the joint. Press the circlip together (pre-centre it) as required so that the profile shaft can be inserted easily when you tap it with a rubber hammer. Hold the profile shaft and joint pin with both hands and fit the joint pin onto the profile shaft under the workshop press until the pressure increases (this is as far as it can go). Check the pressure gauge! > Contact force + 20 kN  -- Do not exceed the maximum force for pressing in joints (20 kilonewtons/2 tonnes)!

    The procedure for fitting both joints is identical.

    Information

    • Do not use cleaning agents on the joints (grease thinners!).
    • Always replace the removed joint during assembly.
    • Press the grease with a sufficient amount of force into the ball tracks of the joint.
    • Make sure that only a small amount of grease gets into the drive shaft boots.

    Greasing joints:

    Grease joints with special grease (see Spare Parts Information). The original grease quantities for the individual joints are specified in the following table.

    Vehicle Joint, inner (gram) Joint pin, outer (gram)
    Without rear differential lock
    (Not for Diesel S/Turbo vehicles) 80 80
    With rear differential lock
    For Diesel S/Turbo vehicles without rear differential lock 85 85

    Joint on transmission side: Grease the joint using the quantities of grease specified in the table. The complete drive shaft is supplied straight from the factory with the quantities of grease specified in the table. Before sliding on the bellows, remove excess grease using a lint-free cloth. Push the required amount of grease through the joint to the outside. Then grease the inside of the joint.

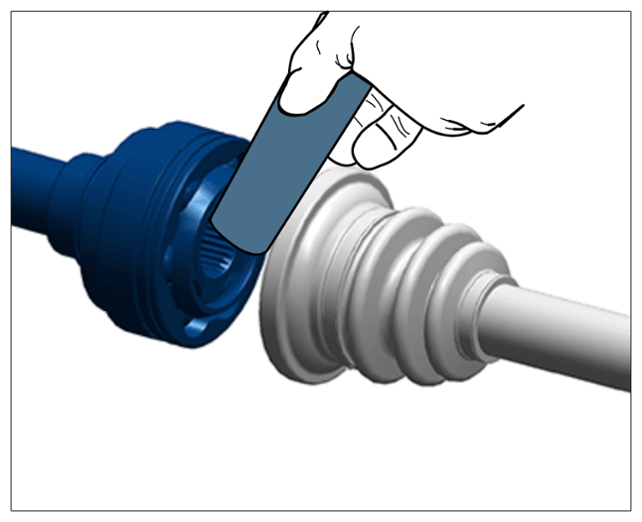

    G16318556Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Greasing inside of drive shaft (shown as an example)

    Joint pin on wheel side: Grease the joint using the quantities of grease specified in the table. The complete drive shaft is supplied straight from the factory with the quantities of grease specified in the table. Before sliding on the bellows, remove excess grease using a lint-free cloth. Push the required amount of grease through the joint to the outside. Then grease the inside of the joint.

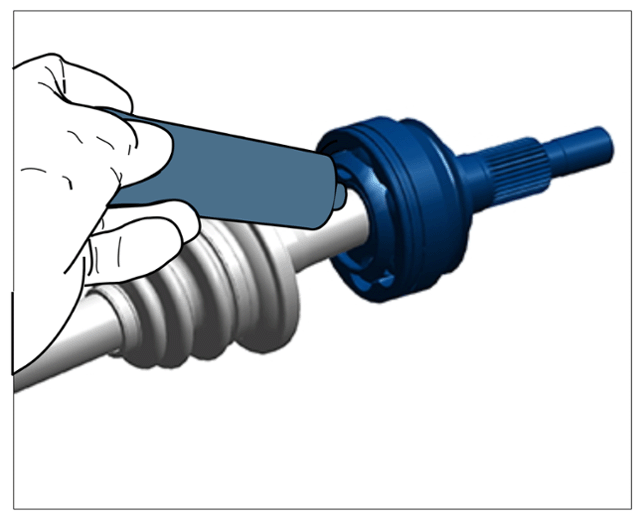

    G16318557Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Greasing outer drive shaft

    Information

    Position the new bellows

    • at the marking you mad earlier on the drive shaft (see also >>Disassembling drive shaft, Step 1 <<).
    • Always comply wit h the specified dimension.

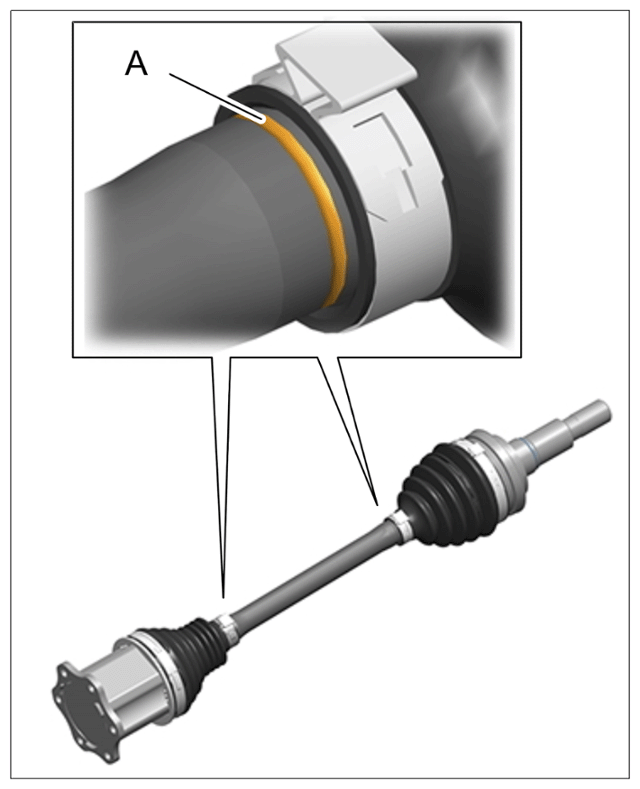

  4. Fit small hose clamps for both bellows. If the bellows are fitted correctly, the groove -A-  will be visible.
    G16318558Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Grooves on drive shaft (shown as an example)
