Removing Lower Trailing Arm

WARNING: This page is about a different variant/trim than selected.

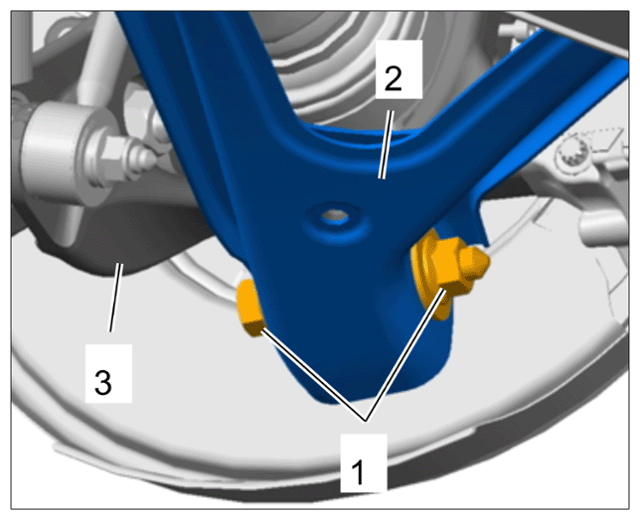

Loosen the threaded joint -1- for he trailing arm -2- on the wheel bearing housing -3- and pull out the screw.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw on wheel bearing housing

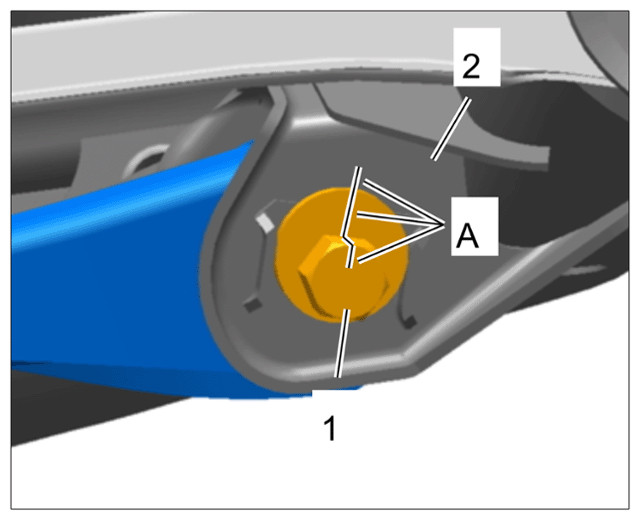

Mark the installation position of the eccentric screw -1- in the rear axle housing -2- (-A- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Marking for eccentric screw

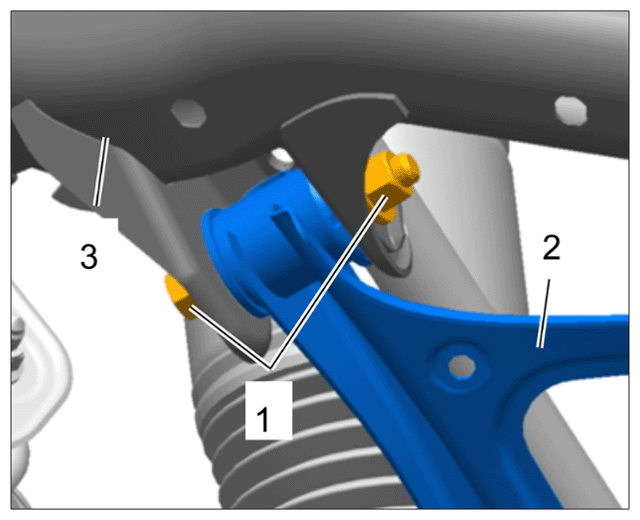

Loosen the eccentric screw -1- for the trailing arm -2- and pull it out of the rear axle housing -3-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Eccentric screw for trailing arm

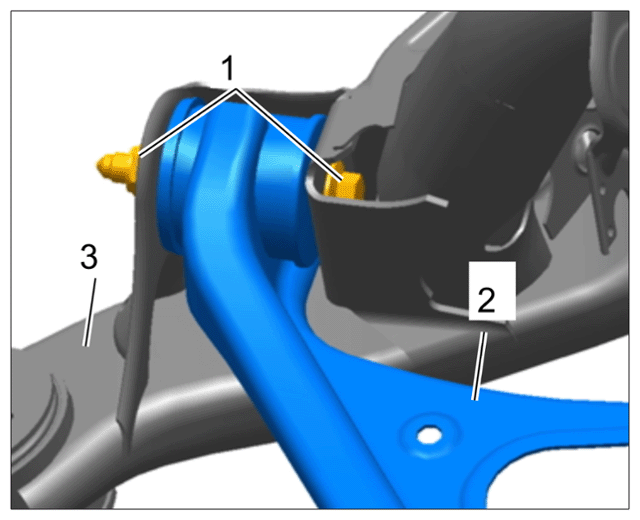

Loosen the fastening screw -1 for the trailing arm -2- in the front rear axle housing -3- and pull it out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front fastening screw
Take the trailing arm out of the vehicle.
Press it out of the guides using a suitable tool if necessary.
