Removing Rear Tie Rod (Toe Control Arm)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The rod (toe control arm)

1. Mark the position of the eccentric screw -3-  on the tie rod -1-  for re-installation -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

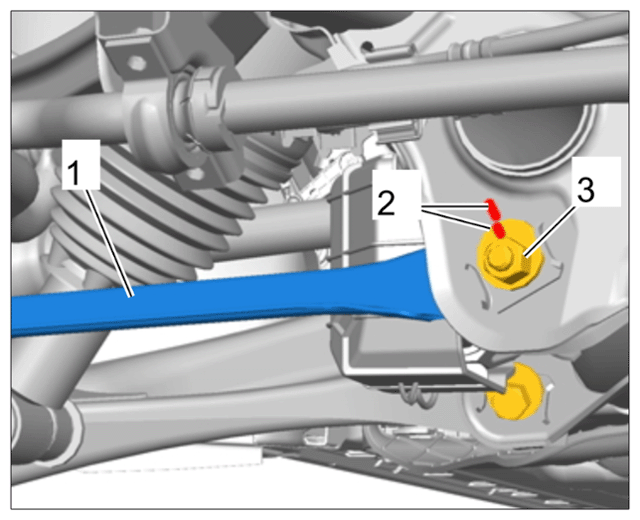

   Marking for eccentric screw

2. Release tie rod at the chassis subframe (eccentric screw) and wheel carrier. Pull out tie rod.

   To make removal easier, raise the wheel carrier slightly using a universal jack! > Lifting wheel bearing housing (example)  Use a rubber base to prevent the wheel carrier from slipping!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

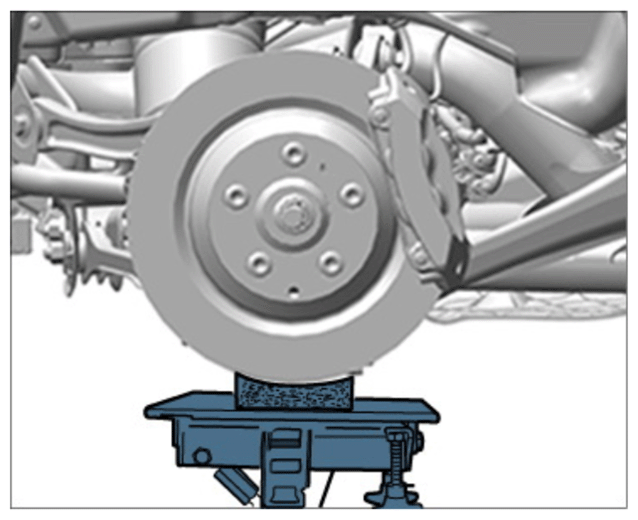

   Lifting wheel bearing housing (example)
