Removing Front Connecting Link

WARNING: This page is about a different variant/trim than selected.
WARNING: Wheel bearing housing raised incorrectly
  • Risk of crushing
  • Risk of damage to components

    → Wear personal protective gear.

    →Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

  1. Remove the relevant wheel.

    > 440519 REMOVING AND INSTALLING WHEEL

  2. If installed:

    Remove air guide.

    >407719 REMOVING AND INSTALLING ANTI-ROLL BAR

    >407719 REMOVING AND INSTALLING FRONT ANTI-ROLL BAR (PDCC)

  3. Lift the lower trailing arm -3-  as far as required using a suitable jack -4-  so that the fastening screws -1, 2-  on the connecting link -5-  can be loosened and removed easily.
  4. Unscrew the bottom fastening screw -2-  on the connecting link -5-  .

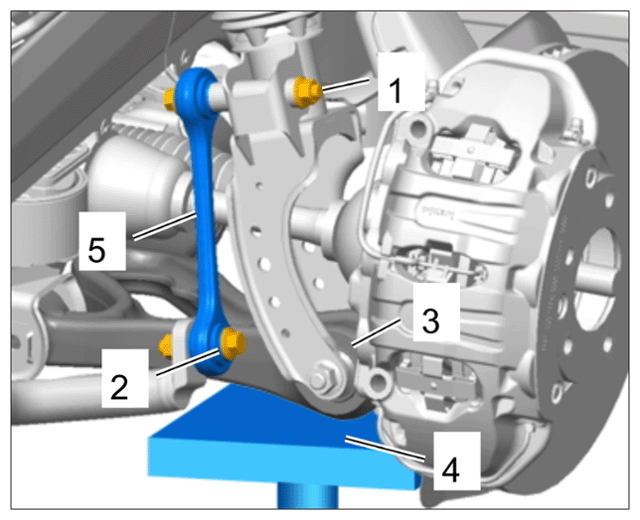

    G16318467Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front connecting link

  5. Unscrew the top fastening screw -1-  on the connecting link -5-  .
  6. Remove the connecting link -5-  .
