Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove hub cap using >9229 - puller hook  .
  2. Unscrew the lock nut for drive shaft -1-  . To do this, operate the brake (help required).

    >404119 REMOVING AND INSTALLING FRONT DRIVE SHAFT

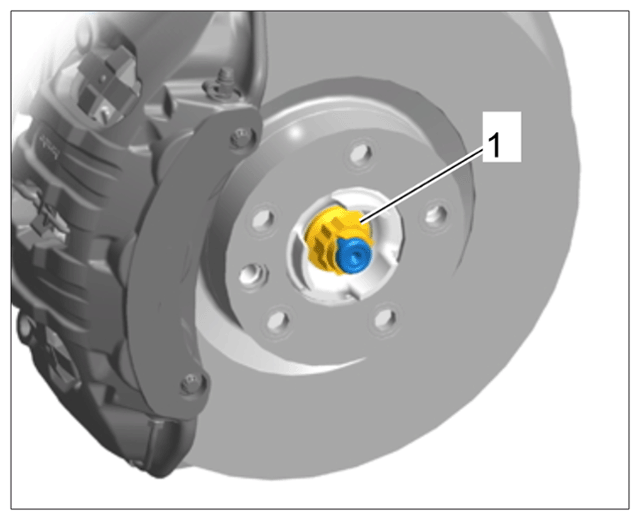

    G16318400Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock nut on drive shaft (shown as an example)

    1. 2.1  Replace lock nut.
  3. Remove wheel.

    > 440519 REMOVING AND INSTALLING WHEEL
