Preliminary Work For Removing And Installing Front Drive Shaft

WARNING: This page is about a different variant/trim than selected.

Remove hub cap using > 9229 - puller hook and loosen drive shaft mounting at the wheel side before raising the vehicle. Operate the brake while doing this (2 mechanics required).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

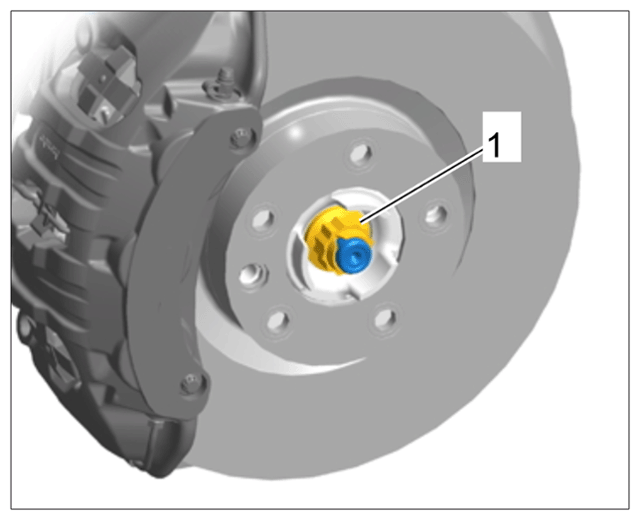

Lock nut on drive shaft (shown as an example)
If installed:
Remove air guide.

>407719 REMOVING AND INSTALLING ANTI-ROLL BAR

>407719 REMOVING AND INSTALLING FRONT ANTI-ROLL BAR (PDCC)
Remove connecting link.
>407819 REMOVING AND INSTALLING FRONT CONNECTING LINK
