Tools And Materials
WARNING: This page is about a different variant/trim than selected.
The following tools can be found in Workshop Equipment Manual 3.0.13 "WE 1206" (exceptions are noted).

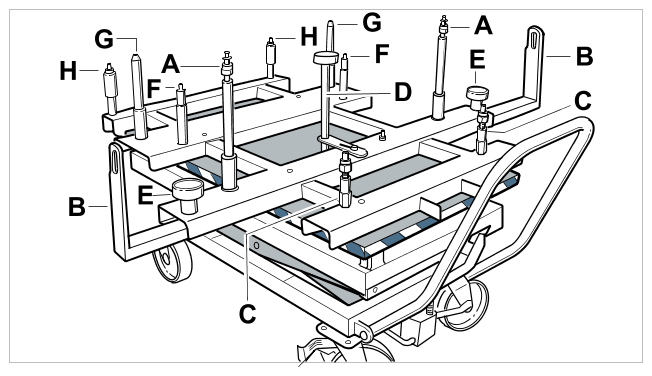

Elevating platform
| A | Assembly mandrel => Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 2 in base carrier |
| B | Wheel hub holder => Secures the spring struts to prevent them from tipping. Inserted from the side into the second cross member from the front; Item 7 in base carrier |
| C | Assembly mandrel => Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 1 in base carrier |
| D | Support => Not used here. |
| E | Wishbone support => Used in conjunction with -B- to protect the wheel suspension and spring struts from damage. |
| F | Assembly mandrel => For mounting on the front-axle carrier at the rear. Item 3 in base carrier |
| G | Assembly mandrel => Guide for positioning the lifting platform into the body; first moves into a bore in the body for centering roughly. Item 4 in base carrier |
| H | Assembly mandrel => For mounting on the transmission cross member. Item 5 or 6 on supplementary set 9 in base carrier |

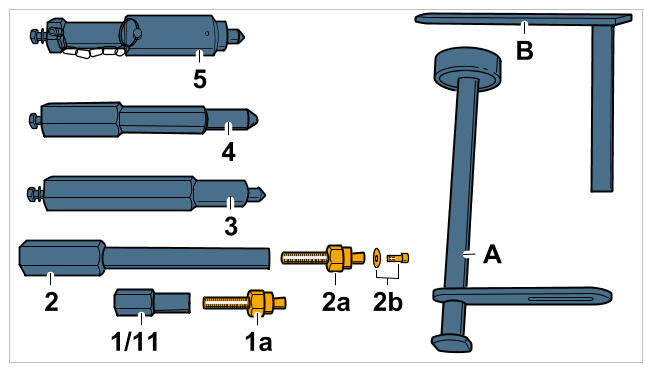

Tool overview
| A | Support => Prevents the engine from tipping backwards. Not generally used. |
| B | Wheel hub holder => Secures the spring struts to prevent them from tipping. |
| 1/11 | Front front-axle carrier mounting => Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 1 in base carrier |
| 1a | Support with height adjustment => Screwed into part 1/11. |
| 2 | Lateral mounting mandrel for engine carrier => Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 2 in base carrier |
| 2a | Support with height adjustment => Screwed into part 2. |
| 2b | Protection against tipping => Screwed into Part 2a. Prevents the engine from tipping forward. |
| 3 | Rear front-axle carrier mounting => Item 3 in base carrier |
| 4 | Mounting in the body => Item 4 in base carrier |
| 5 | Mounting for transmission cross member => Item 5 or 6 on supplementary set 9 in base carrier |

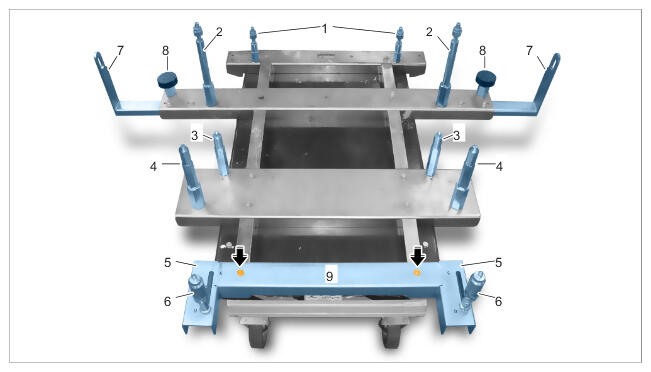

Complete structure of the base carrier - new version
| 1 | Mounting mandrel for front front-axle carrier |
| 2 | Mounting mandrel for engine carrier |
| 3 | Mounting mandrel for rear front-axle carrier |
| 4 | Mounting mandrel for centering in the body. |
| 5 | Position of mounting mandrel on transmission cross member Cayenne Diesel/Hybrid Cayenne/S/GTS/Turbo/Turbo S |
| 6 | Position of mounting mandrel on transmission cross member Cayenne S Diesel |
| 7 | Bracket for wheel carrier |
| 8 | Mounting for lower wishbone |
| 9 | Supplementary set |
| arrows | Nuts and screws |
