Installing Rear CARDAN Shaft
Incorrect handling of cardan shaft
- Risk of damage to the cardan shaft
- Risk of damage to the centre bearing
- Humming noises caused by defective centre bearing
→ When one of the two flanges on the cardan shaft has been released, relieve the tension on the centre bearing.
→ Follow the recommended procedures during installation, otherwise the position of the cardan shaft in its original place is no longer guaranteed.
→ Do not kink the cardan shaft (bend by max. 10°); only store and transport it in elongated position.
Information
Tightening torque, tightening sequence and assembly overview.
> 3X00IN TIGHTENING TORQUE, TIGHTENING SEQUENCE AND ASSEMBLY OVERVIEW
Information
The circlips on the transmission journal must always be replaced. These must be pressed on radially.
Information
The help of another person is required.
- Fit the cardan shaft with the help of a second mechanic and screw on the centre bearing.NOTE: NOTIFICATION
Cardan shaft not fitted correctly- Cardan shaft loose
- Damage to cardan shaft and transmission
→ Always replace circlips and O-rings.
→ Press circlip on radially.
→ Tap on cardan shaft only at the designated positions using a plastic mandrel.
→ After fitting the cardan shaft, pull on it with your hand to check that it is fitted securely.
- Install cardan shaft.

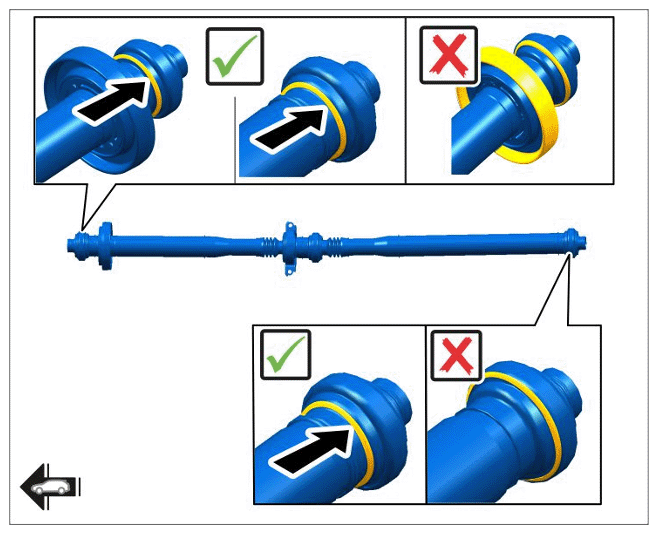

- 2.1 Turn the cardan shaft to the applied markings and fit it onto the journal by jerking it.
- 2.2
Tap on cardan shaft using a plastic mandrel and plastic hammer (max. 1.0 kg) at the designated positions -Arrows-
.
Information
If the rear cardan shaft comes off when you pull it, replace the circlips again.
- 2.3
Check that the cardan shaft is fitted securely by pulling on it with your hand.
Cardan shaft
- Further assembly is carried out in reverse order to removal.
