Removing ATF Pan
WARNING: This page is about a different variant/trim than selected.
- Unscrew oil drain plug -A-
- Unscrew overflow pipe -C-
- Drain ATF
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

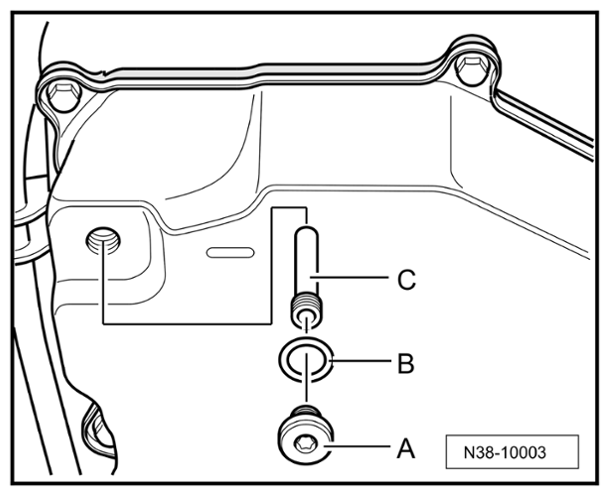

Overflow pipe on ATF pan
- Unscrew screws on the ATF pan in diagonally opposite sequence and remove ATF pan -2-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

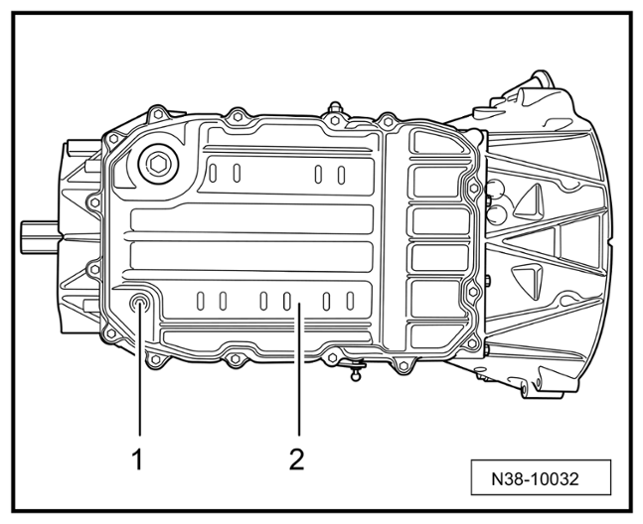

Mounting point for ATF pan
