Removing Transmission Mount
WARNING: This page is about a different variant/trim than selected.
- Mark the centre of the rubber mounting on the transmission support with a colored marker -arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

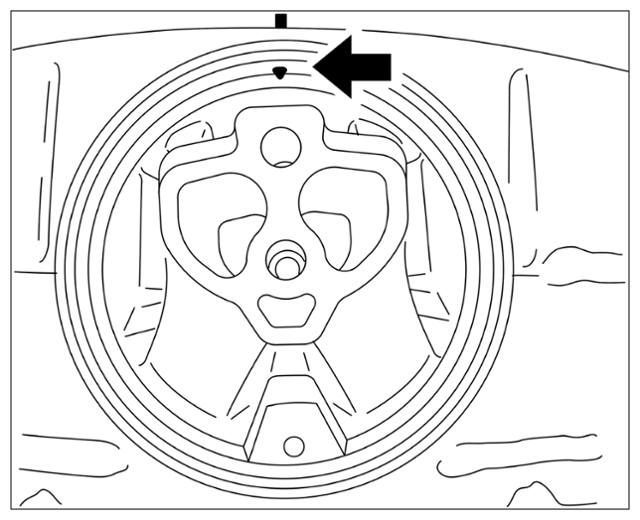

Marking on transmission mount
- Press out transmission mount using a workshop press and the > T10214 - assembly fixture
.
- 2.1
Fit transmission support on tool T10214/1 -1-
.
- 2.2
Centre the tool T10214/3 -3-
on the transmission mount without screwing it to the transmission mount.
- 2.3
Carefully press out the transmission mount.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

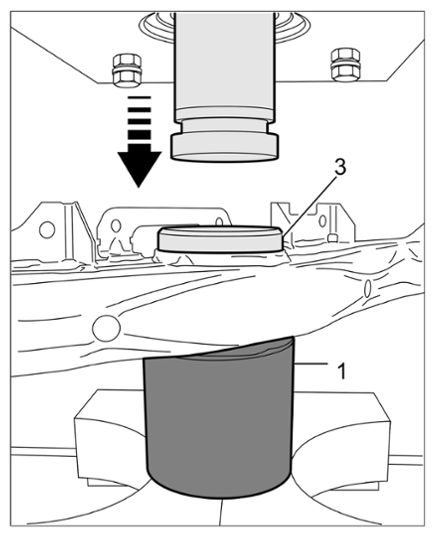

Pressing out transmission mount
