Removing Automatic Transmission

WARNING: This page is about a different variant/trim than selected.

Information

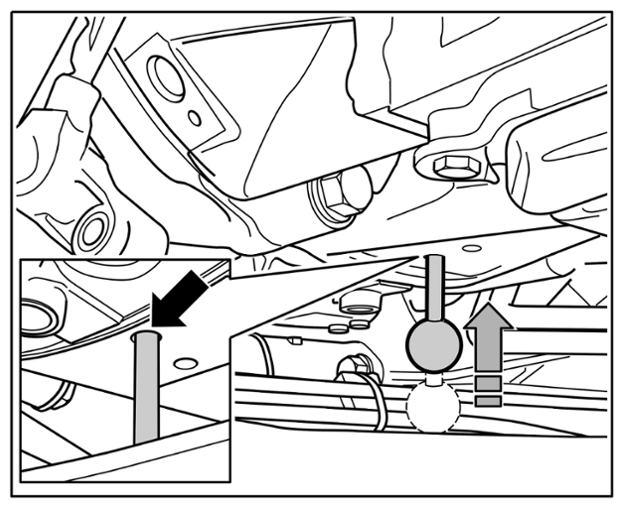

When removing the engine, ensure that the torque converter in the automatic transmission does not slip out of the transmission.
Keep the torque to five, terpressed in position using a screwdriver when removing the engine.
Some of the repair illustration s show only one side of the vehicle or a similar component.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

The pictures shown in this document may differ from the original.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

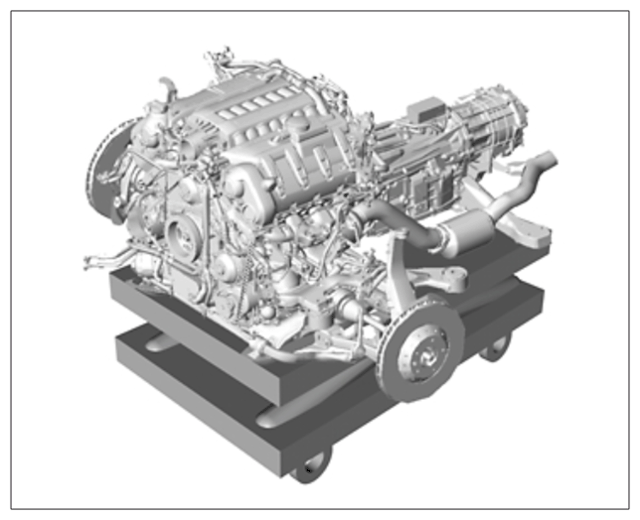

Engine/transmission assembly

Detach holder -1- for ATF lines at 'he rear of the engine.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for ATF lines at rear of engine

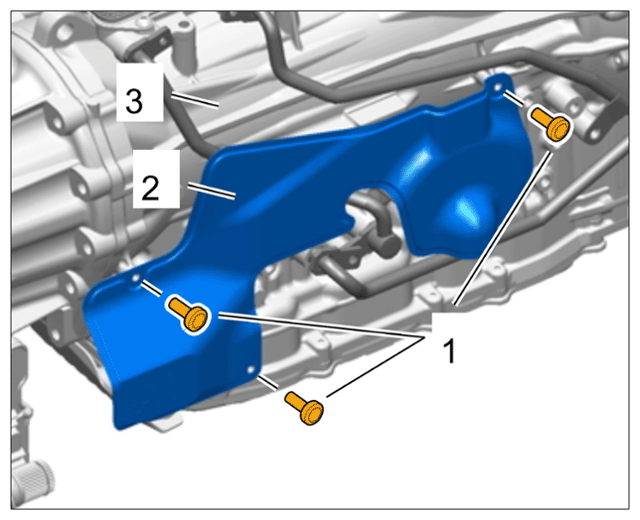

Loosen screws -1- on the heat shield -2- on the automatic transmission -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for automatic transmission

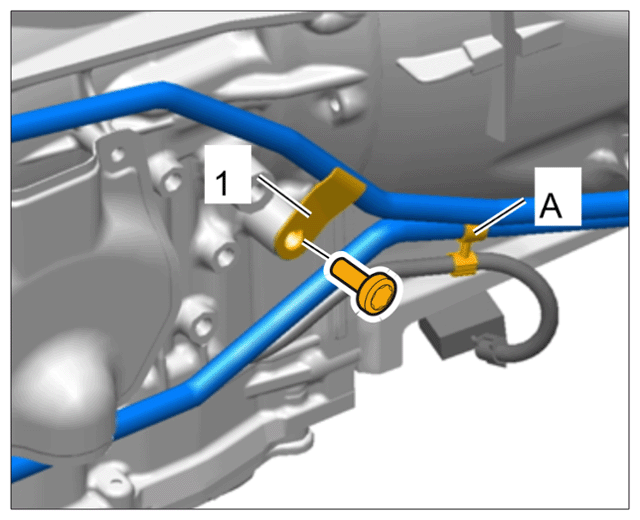

Detach holder -1- for ATF lines at the front of the transmission.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for ATF lines at front of transmission.
Unclip ATF lines -A- .
Place a suitable container underneath to catch emerging ATF.

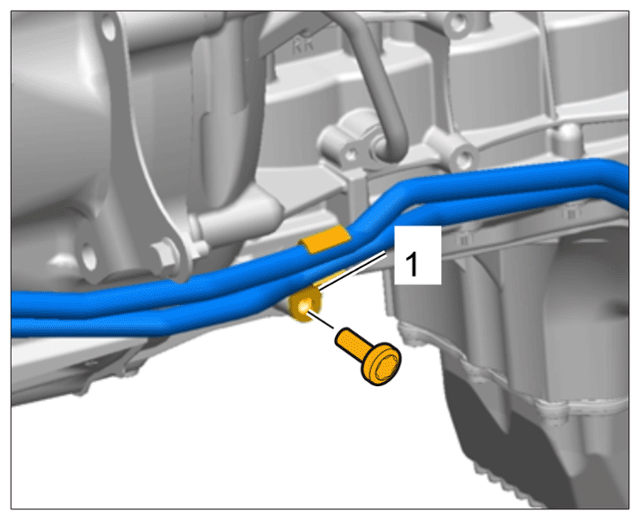

Loosen the fastening screw -1- for the ATF lines -2- at the bottom of the transmission -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detaching ATF lines at bottom
Remove tear ATF line.
Close off the ATF lines and transmission bores using suitable stoppers.
Place a suitable container underneath to catch emerging ATF.

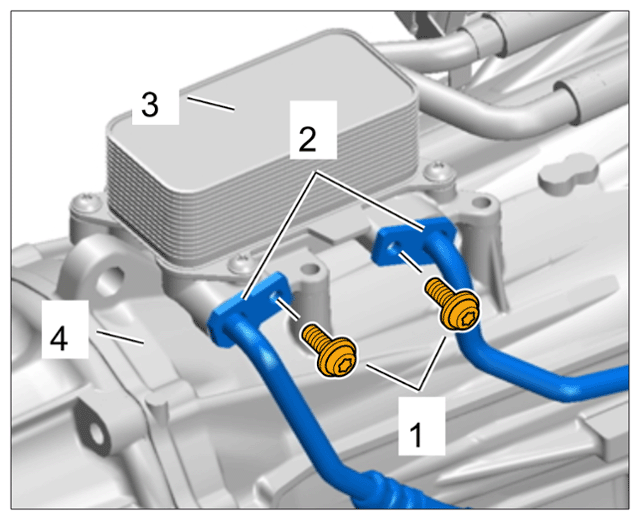

Loosen the front fastening screw -1- for the ATF lines -2- on the ATF heat exchanger -3- and pull it out.

Close off the ATF lines and bores in the heat exchanger using suitable stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ATF lines at top

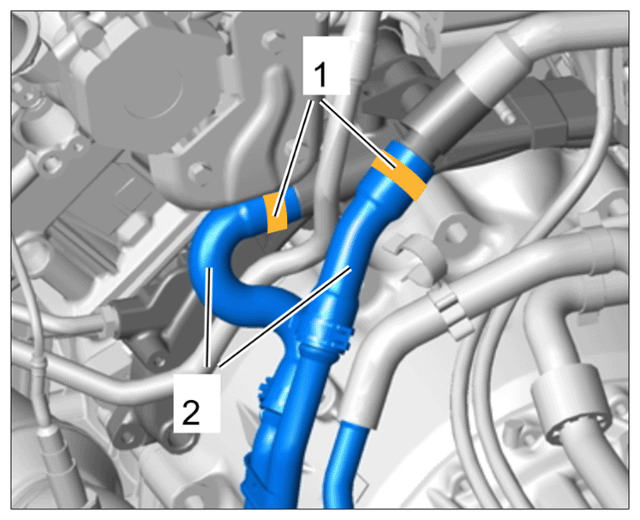

Loosen clamps -1- for the coolant hoses -2- on the left of the transmission. Pull off coolant hoses.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hoses on left

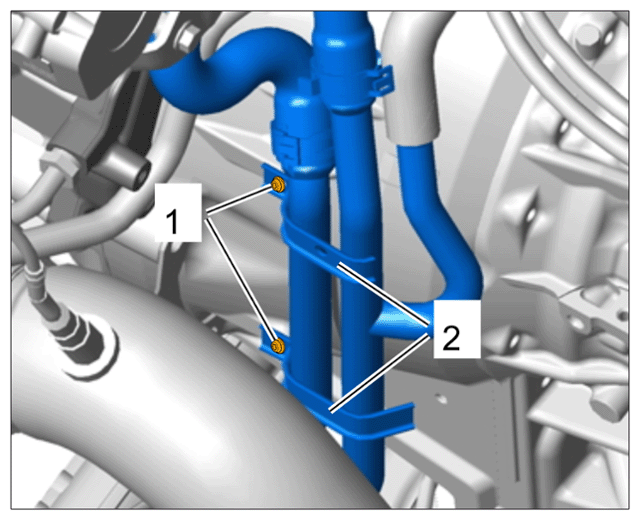

Unscrew and remove screws -1- from the coolant line holder -2- and bend holder to one side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for coolant lines

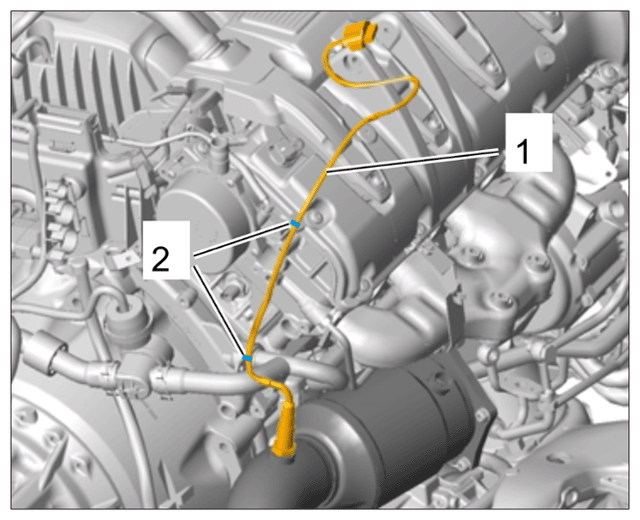

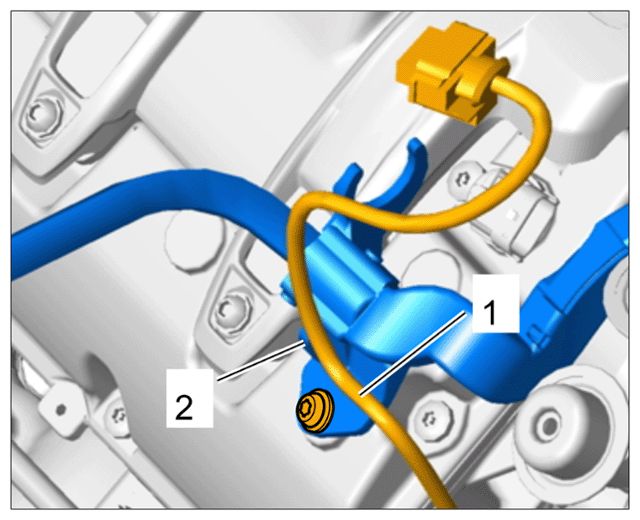

Unclip the wire harness -1- for the oxygen sensors on the left cylinder head cover out of the holder -2-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for left oxygen senso1
Unclip wire harness -1- for oxygen sensors on the right from the holders -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for right oxygen sensor

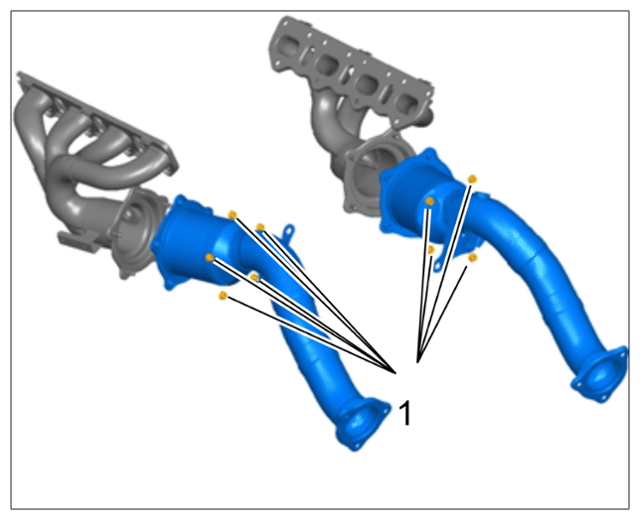

Spray the screws on the primary catalytic converter with an anti-rust agent and leave to take effect. Loosen the screws -1- on the catalytic converter.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Primary catalytic converters

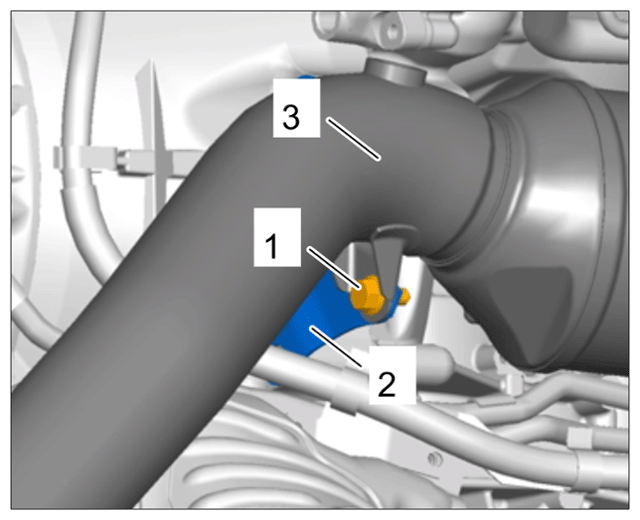

Undo screws -1- on the holders -2- of the left and right primary catalytic converters -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for primary catalytic converter

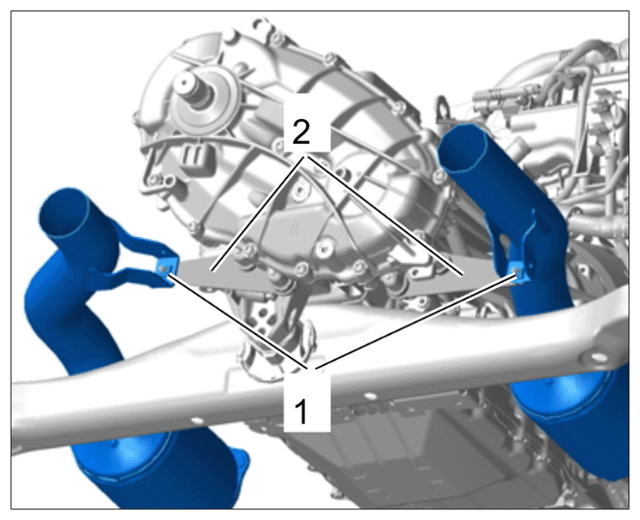

Undo screws -1- on the left and right of the rear holders -2- of the catalytic converters on the transmission.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for catalytic converters
Remove the catalytic converters and set them aside.
Remove the front cardan shaft.
> 390219 Removing and installing front cardan shaft - section on "REMOVING "

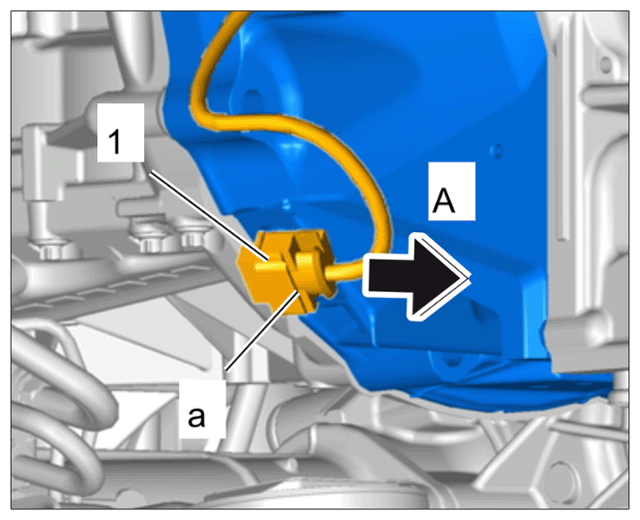

Release the electric plug connection -1- of the crankshaft pulse sender at the bottom of the transmission -a- and pull it off -A- .
Loosen the tie-wrap at the coolant line holder on the left if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection for crankshaft pulse sender

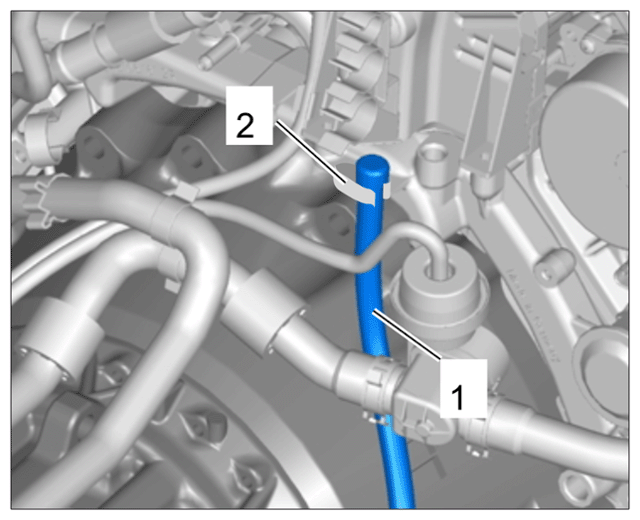

Unclip the hose -1- for the transmission vent 'rom the holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission vent hose

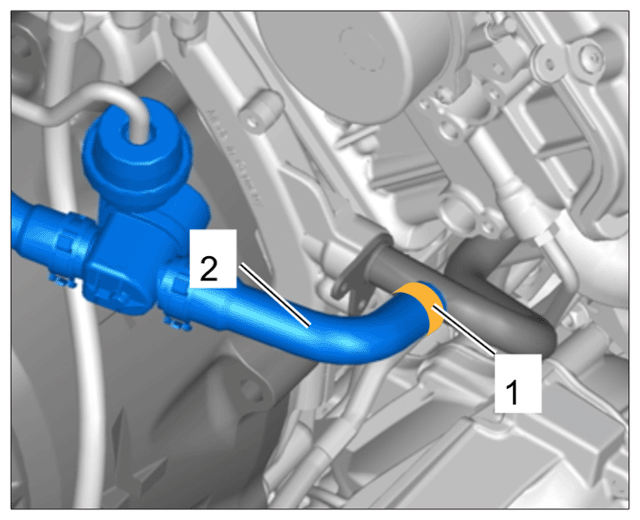

Loosen the clamp -1- for the coolant hose -2- to the ATF heat exchanger on the right and pull off the hose from the connection piece.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right coolant line

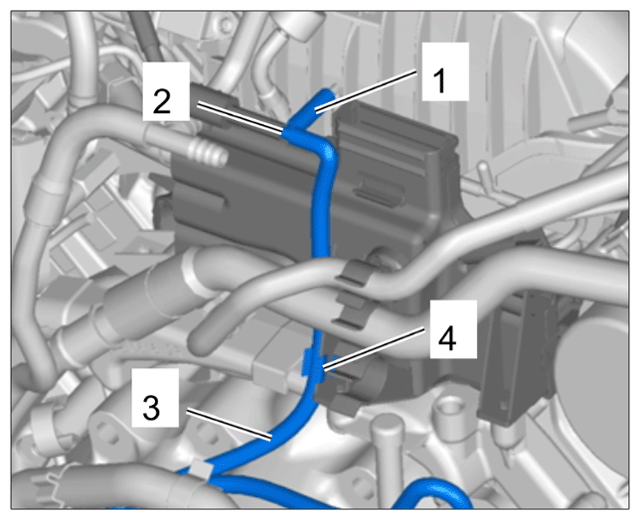

Pull off vacuum hose -1- for the vacuum supply at the T-piece -2- . Unclip the vacuum line -3- from the holder -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum supply

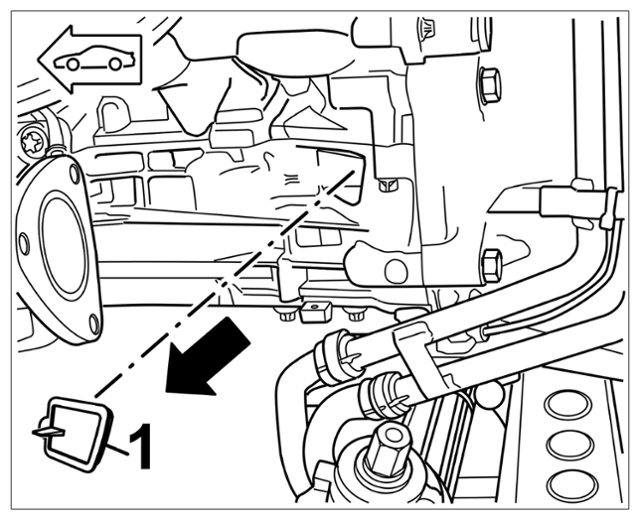

Remove plug -1- used to seal the converter assembly opening.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing plug used to seal converter assembly opening
Remove converter screws. To do this, read and follow the next steps.
> 325019 Removing and installing torque converter - section on "REMOVING "
Turn crankshaft clockwise using special tool > 9714 - socket-wrench insert.

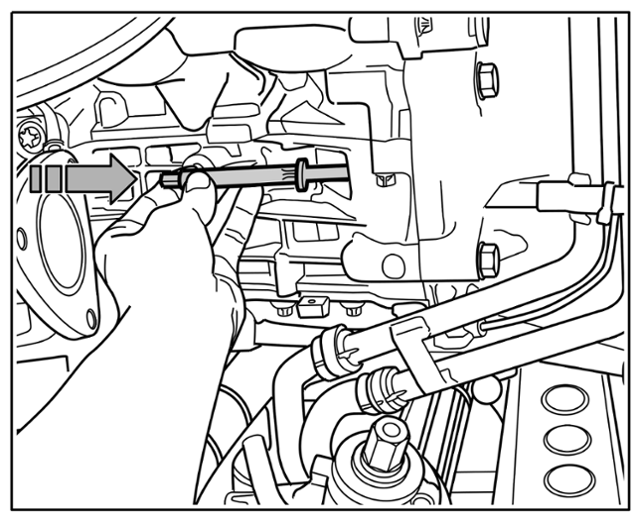

Insert special tool > 9595 - locating pins into the front drilled hole on the converter bell housing -arrow- and hold upwards with slight pressure until it engages when the crankshaft turns.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting converter screws
Position special tool > 9688 - bit insert on the converter screw through the opening in the engine block and connect bit snap-on head and special tool > 9687 - insert one after the other.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Opening for converter screws
Remove special tool > 9595 - locating pins before loosening the converter screws.
Unscrew converter screw and twist out.
Complete the steps described above for the other five screws.

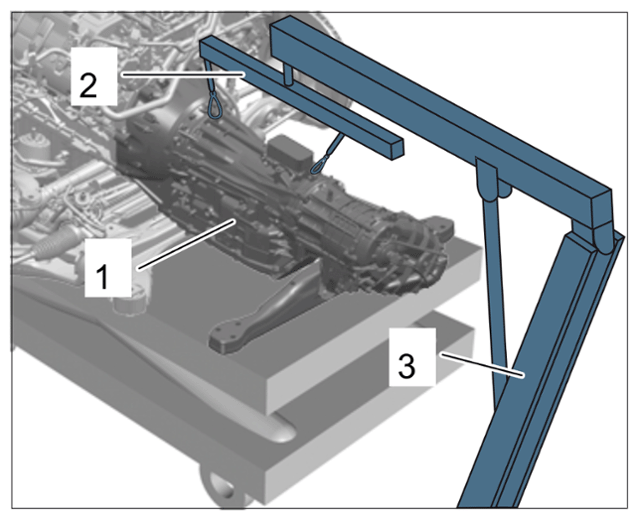

Attach the transmission -1- using > 2024A - suspension device-2- to the workshop crane -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Suspending transmission

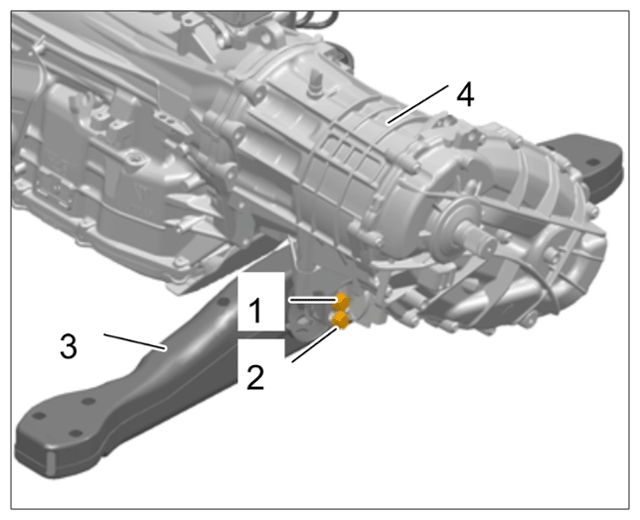

Raise the transmission -4- by a few centimeters and remove the screws -1, 2- from the transmission cross member -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear transmission cross member
