TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...	Toleranc...
Minimum installation dimension for torque converter	Cayenne S/GTS/Turbo - check that it is seated correctly and prevent it from tilting	Control value (minimum dimension)	4.5 mm
Screw transmission support to body	Replace	Initial tightening	50 Nm (36.9 ftlb.)
Screw transmission support on body		final tightening	90 Degree
Screw transmission bracket to transmission mount	Replace	Initial tightening	50 Nm (36.9 ftlb.)
Screw transmission bracket on transmission mount		final tightening	90 Degree
Torque converter to drive plate	Screw M10 x 1, replace screw	Tightening torque	85 (63 ftlb.) Nm
Automatic transmission to engine flange	Aluminum screws M12 x 70, replace screws	Initial tightening	38 (28 ftlb.) Nm
Automatic transmission to engine flange	Aluminum screws M12 x 70	Final tightening torque angle	90 Degree
Automatic transmission to engine flange - bottom screws	Aluminum screws M12 x 70, replace screws	Initial tightening	27.6 (21 ftlb.) Nm
Automatic transmission to engine flange - bottom screws	Aluminum screws, M12 x 70	Final tightening torque angle	90 Degree
Heat exchanger to transmission	M8 screw (multiple-tooth)	Tightening torque	20 (15 ftlb.) Nm

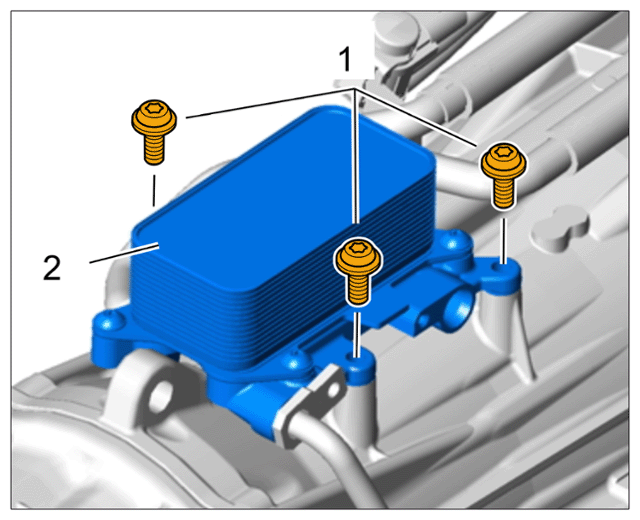

Courtesy of PORSCHE CARS NORTH AMERICA, INC. ATF heat exchanger on automatic transmission, top
ATF lines to heat exchanger	M6 screw, replace O-rings	Tightening torque	8 (6 ftlb.) Nm

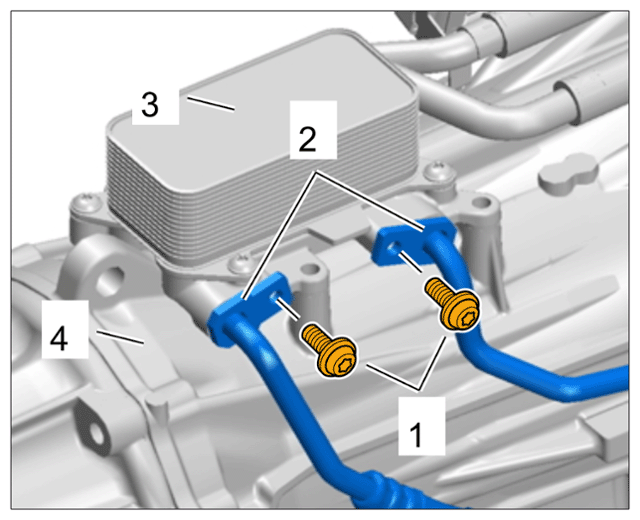

Courtesy of PORSCHE CARS NORTH AMERICA, INC. ATF lines, top
ATF lines to automatic transmission	Screw M8 x 25, replace O-rings	Tightening torque	20 (15 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for ATF lines, rear
Holder securing ATF lines to automatic transmission, front	Screw, M8 x 20	Tightening torque	23 (17 ftlb.) Nm

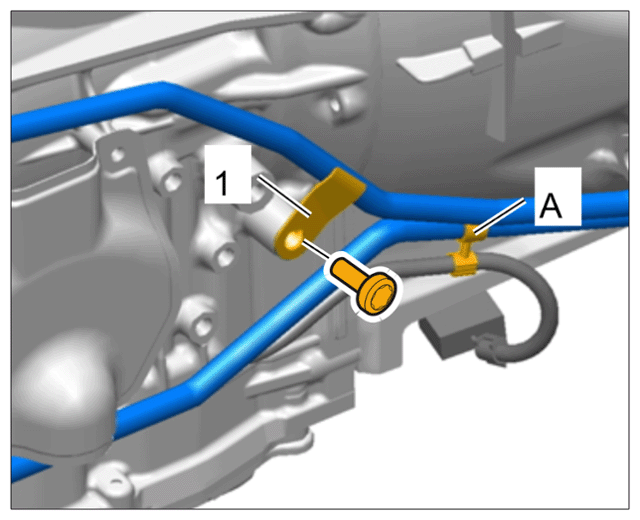

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder for ATF lines at front of transmission
Heat shield to automatic transmission	M6 screw	Tightening torque	15 (11 ftlb.) Nm

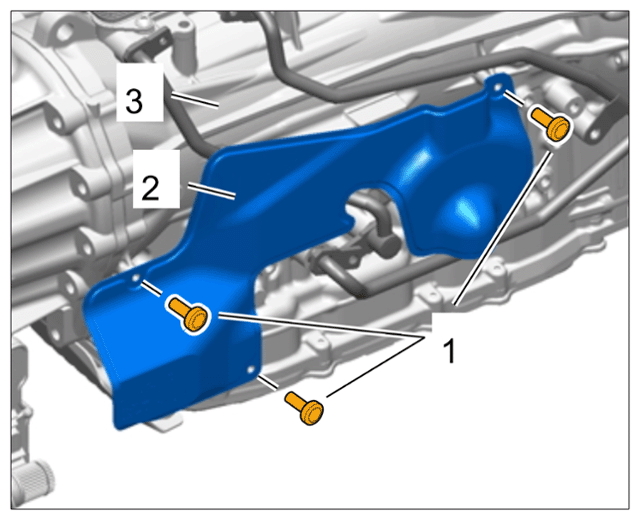

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield to automatic transmission
Selector lever cable holder to transmission	M6 screw	Tightening torque	10 (7.5 ftlb.)

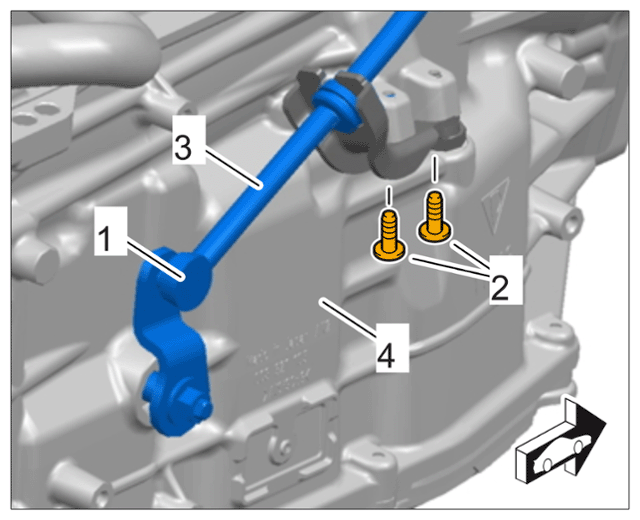

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Selector lever cable on selector lever for automatic transmission
Oxygen sensor		Tightening torque	45 Nm	+/- 5 Nm
Clamp on catalytic converter	M8 lock nut - replace clamp	Tightening torque	23 (17 ftlb.) Nm

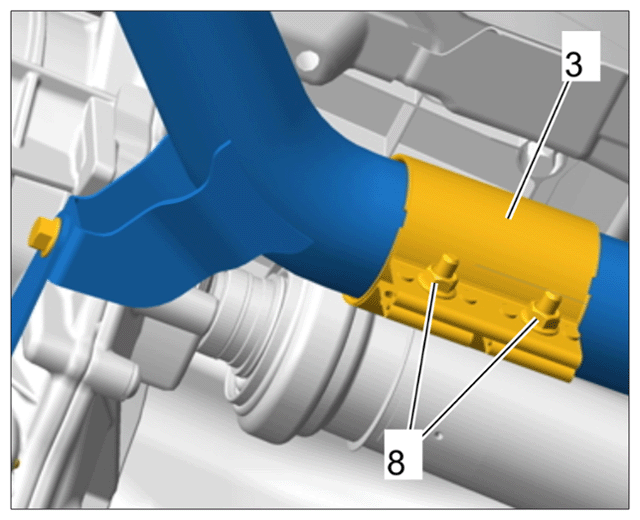

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Clamp securing catalytic converter to exhaust system
Catalytic converter to transfer gear holder	M8 screw	Tightening torque	23 (17 ftlb.) Nm

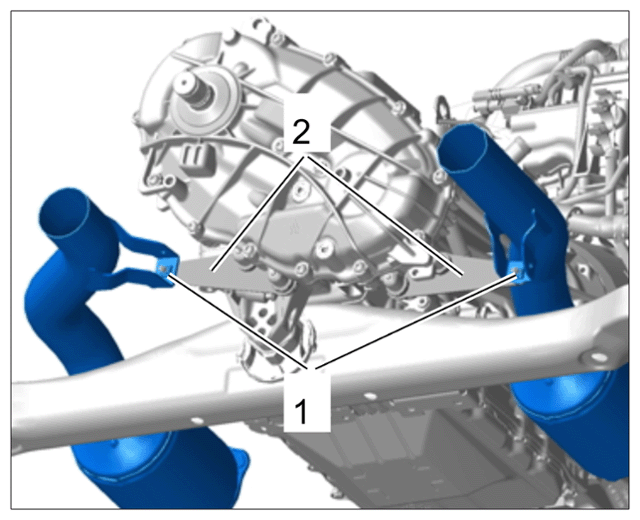

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Catalytic converter holders
Heat shield on universal joint	M6 screw	Tightening torque	10 (7.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield on universal joint
Primary catalytic converter to exhaust manifold	M8 nut - always replace	Tightening torque	23 (17 ftlb.) Nm

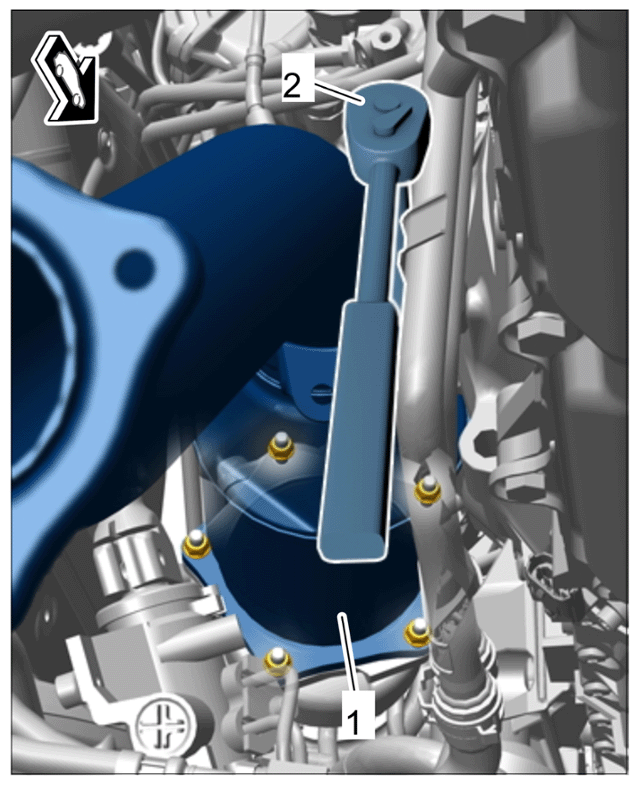

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Threaded joint for primary catalytic converter
Primary catalytic converter to holder	M8 screw	Tightening torque	23 (17 ftlb.) Nm

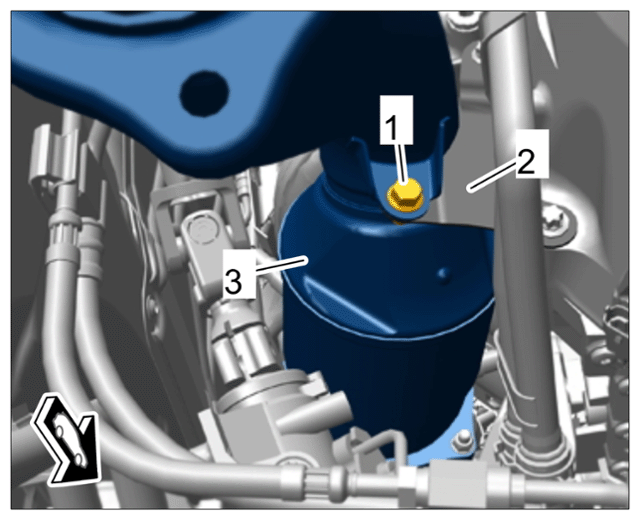

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder for primary catalytic converter at the left
Lock nut for catalytic converter flange	Replace M8 lock nut	Tightening torque	23 (17 ftlb.) Nm
