Adjusting Multi-Functional Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

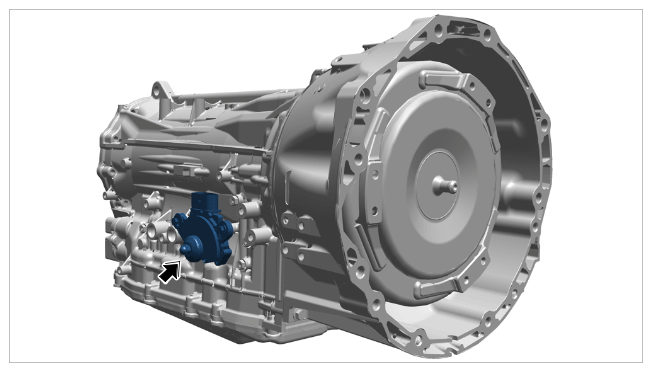

Installation position of multi-functional switch

1. Selector lever is in position N.

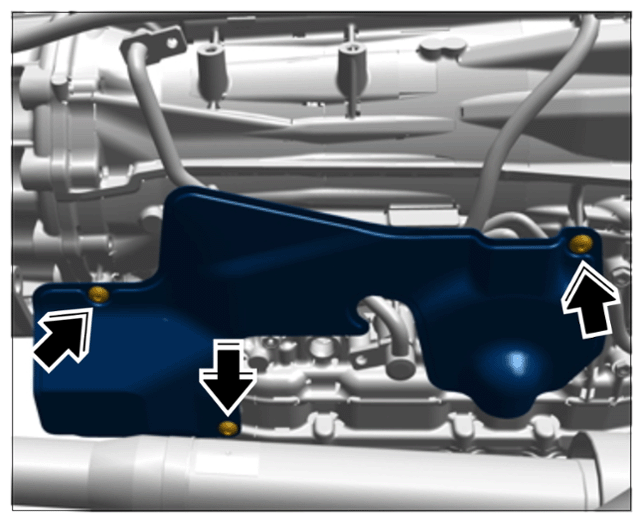

2. Unscrew fastening screws -arrows-  and remove heat shield from the transmission.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heat shield

3. Disconnect electric plug connection from the multi-functional switch.

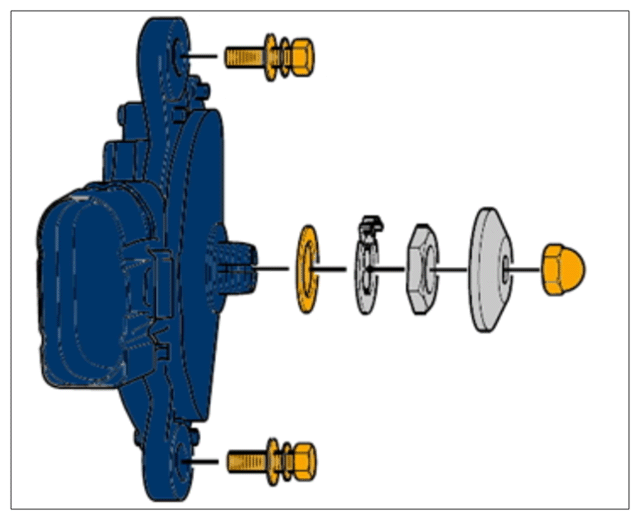

4. Remove cap nut, cap, nut with tab washer and rubber washer on the multi-functional switch > Multi-functional switch  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Multi-functional switch

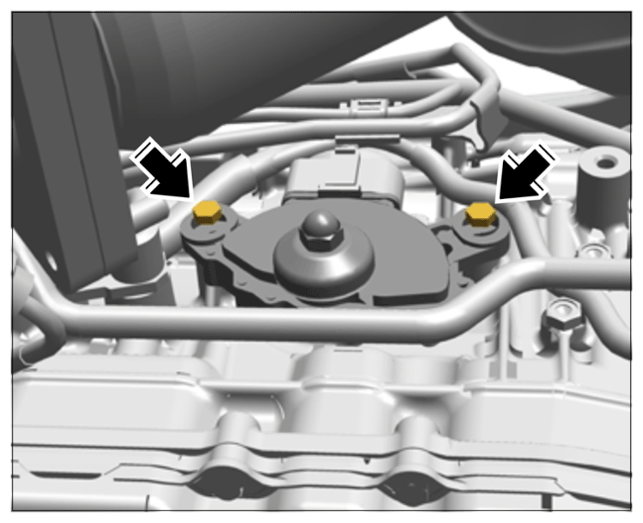

5. Loosen fastening screws -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws for multi-functional switch

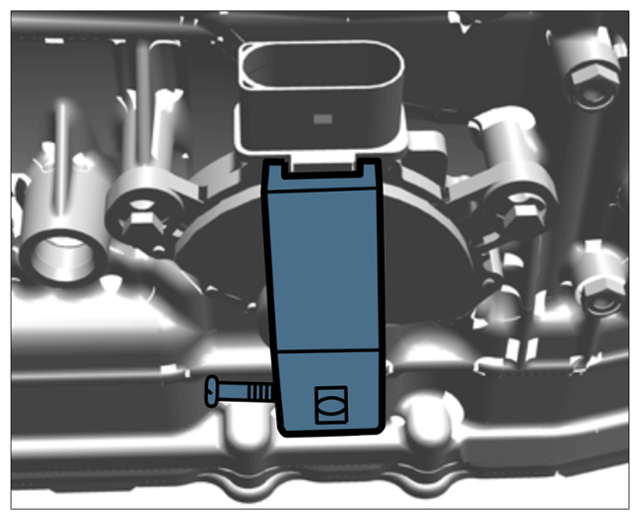

6. Position special tool > T10173 - adjusting tool  on the shaft and secure to the shaft with a screw -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adjusting tool on multi-functional switch

7. Tighten fastening screws -Arrow-  and remove special tool.

   > Tightening torque 5 (3.5 ftlb.) Nm --

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws for multi-functional switch

8. Install and tighten cap nut, cap, nut with tab washer and rubber washer on the multi-functional switch > Multifunction switch.

   > Tightening torque 7 (5 ftlb.) Nm --

   > Tightening torque 15 (11 ftlb.) Nm --

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Multi-functional switch

9. Connect electric plug connection to the multi-functional switch until it engages securely.
10. Position heat shield on the transmission.
11. Tighten fastening screws -Arrows-  .

    > Tightening torque 10 (7.5 ftlb.) Nm --

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield
