Technical Values

WARNING: This page is about a different variant/trim than selected.
TIGHTENING TORQUE SPECIFICATIONS

Location Des... Type Basic val... Toleranc... Toleranc...

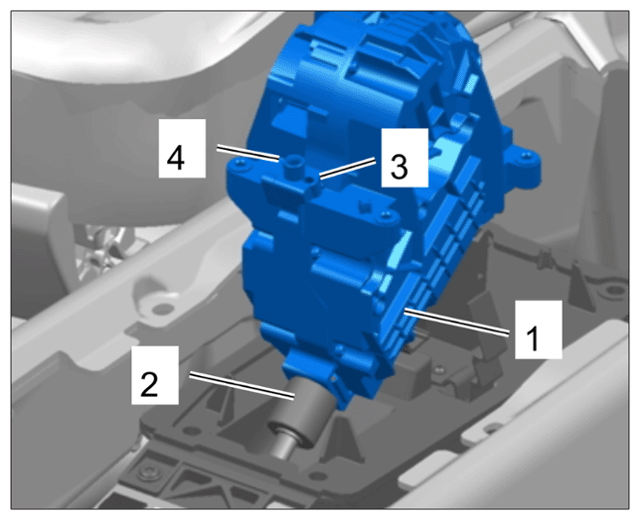

Selector cable mounting on selector support
G16314403Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing selector lever cable		   Tightening torque 10 (7.5 ftlb.) Nm

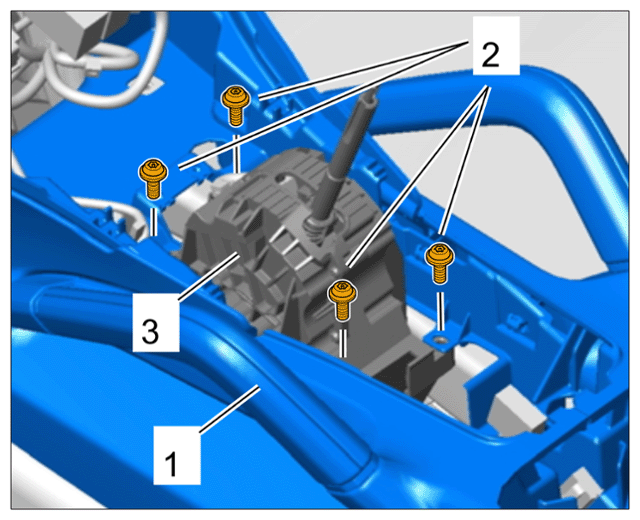

Fastening screw for selector support
G16314404Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joint for selector support		   Tightening torque 10 (7.5 ftlb.) Nm
