Removing Selector Knob

Information

The release button must not be pressed while removing and installing the selector knob.

Information

• Do not block the release button.

1. Turn locking mechanism at the bottom of the selector knob -A-  by 45 degrees in direction of arrow and pull selector knob up and off -B-  . The release button will pop out.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

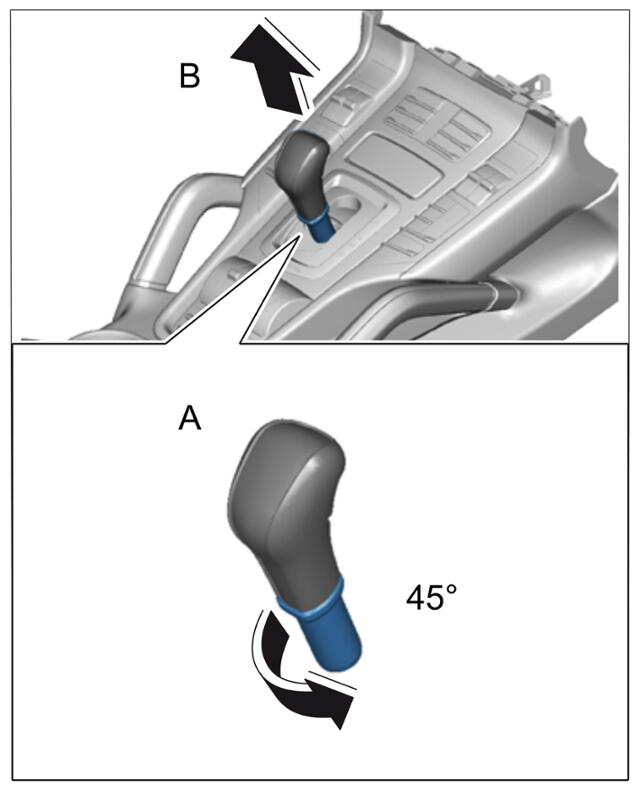

   Removing selector knob

   Information

   No lateral forces must be applied to the pull rod of the selector knob.

2. The selector knob must be secured following removal by inserting the > 9839 - transport lock so that the release button cannot be pressed in.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

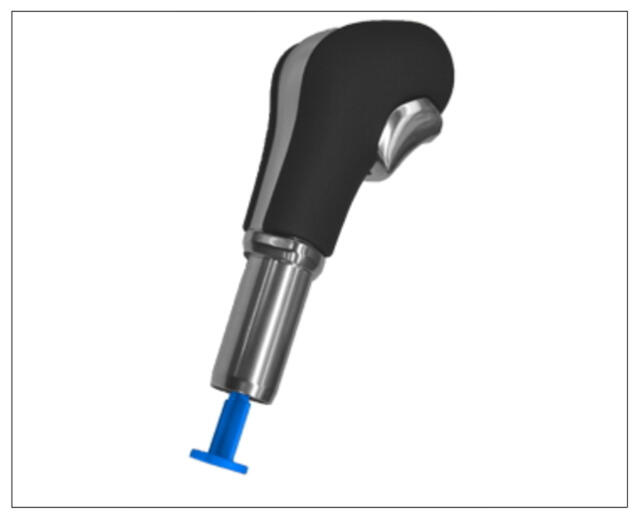

   Selector knob lock
