Knock Sensor

WARNING: This page is about a different variant/trim than selected.

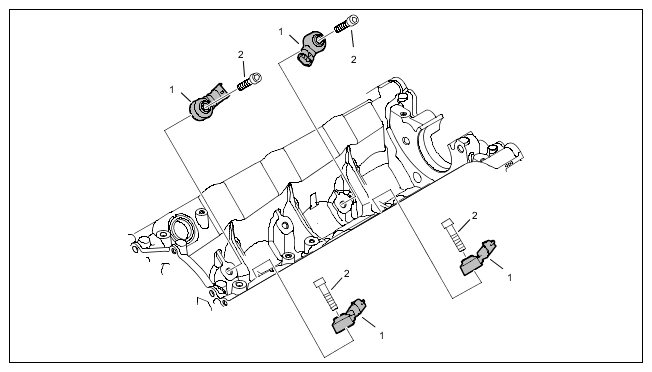

Fig 1: Knock Sensors Components Location With Torque Specifcation

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Knock sensors

1	Knock sensor
2	Screw, M8 x 35 > Tightening torque 23 (17 ftlb.) Nm
