Group 27: Starter
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

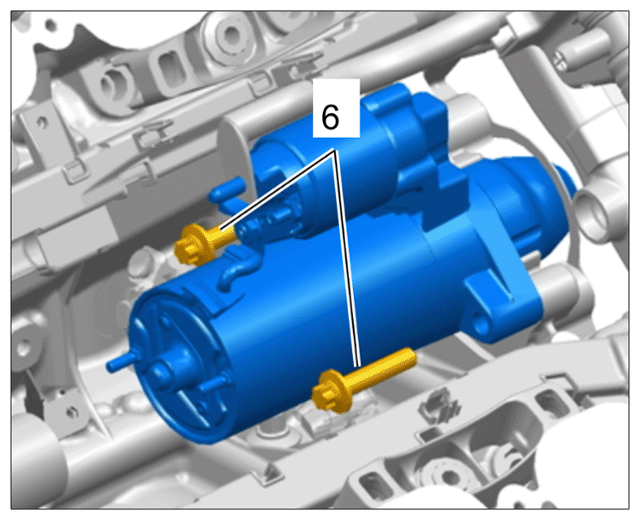

Fastening screws for starter
| 6 |
> Tightening torque 45 (33 ftlb.) Nm + 8 (6 ftlb.) Nm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

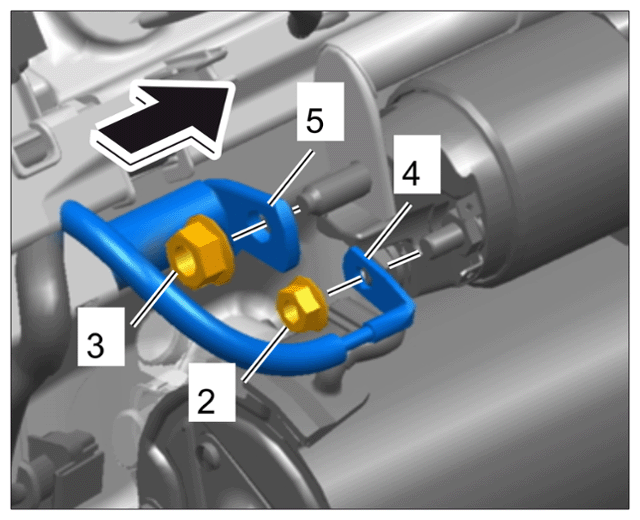

Securing electric lines to starter
| 3 |
> Tightening torque 18 (13 ftlb.) Nm |
| 2 |
> Tightening torque 6.5 (5 ftlb.) Nm |
