Primary Catalytic Converter

WARNING: This page is about a different variant/trim than selected.

TIGHTENING TORQUE SPECIFICATIONS - PRIMARY CATALYTIC CONVERTER

Location	Description	Type	Basic value
Primary catalytic converter to exhaust manifold	M8 nut - always replace	Tightening torque	23 (17 ftlb.) Nm

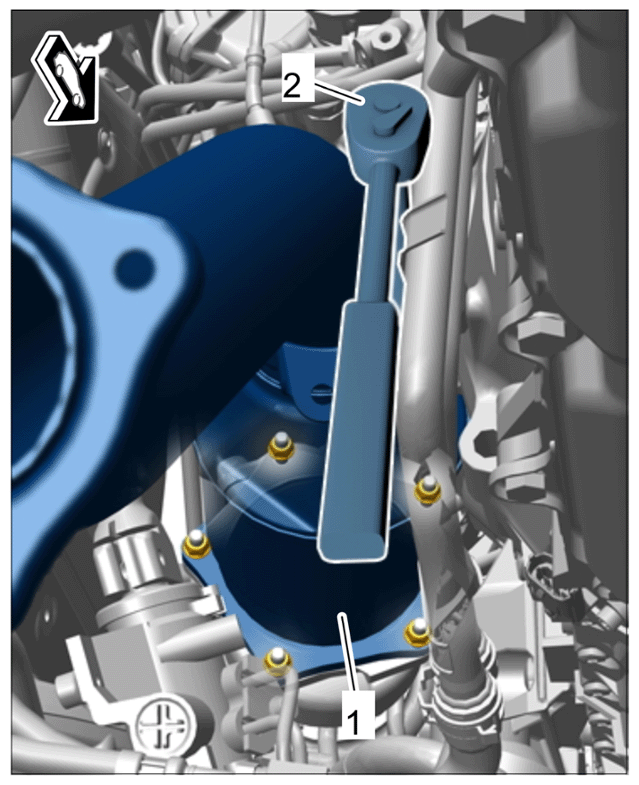

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Threaded joint for primary catalytic converter
Primary catalytic converter to holder	M8 screw	Tightening torque	23 (17 ftlb.) Nm

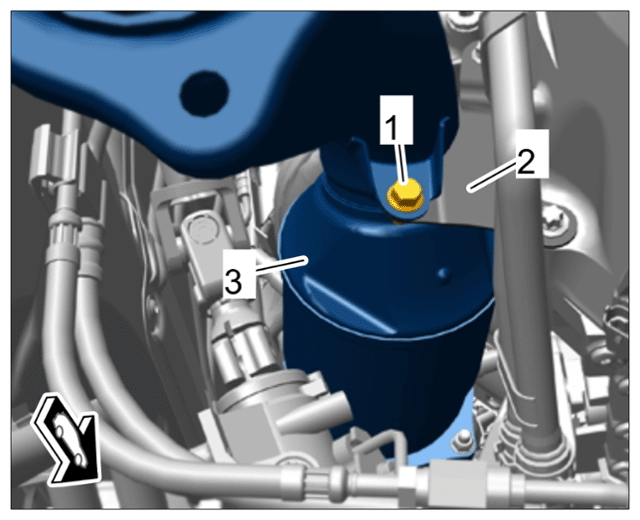

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder for primary catalytic converter at the left
Lock nut for catalytic converter flange	Replace M8 lock nut	Tightening torque	23 (17 ftlb.) Nm
