Exhaust System

WARNING: This page is about a different variant/trim than selected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

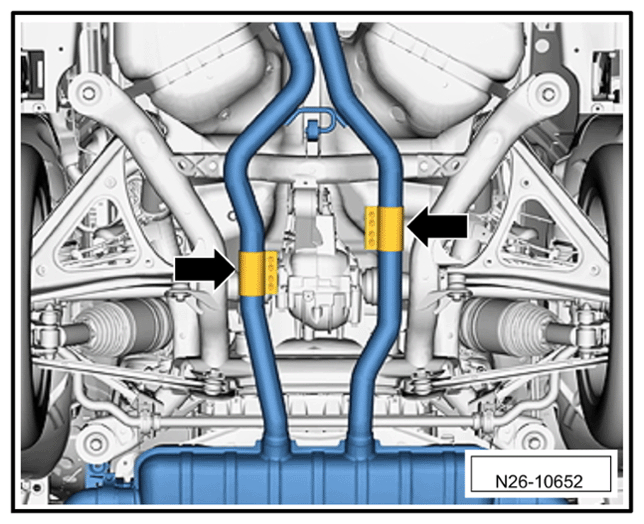

Positioning clamping sleeves

Arrows

> Tightening torque 33 (24.3 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

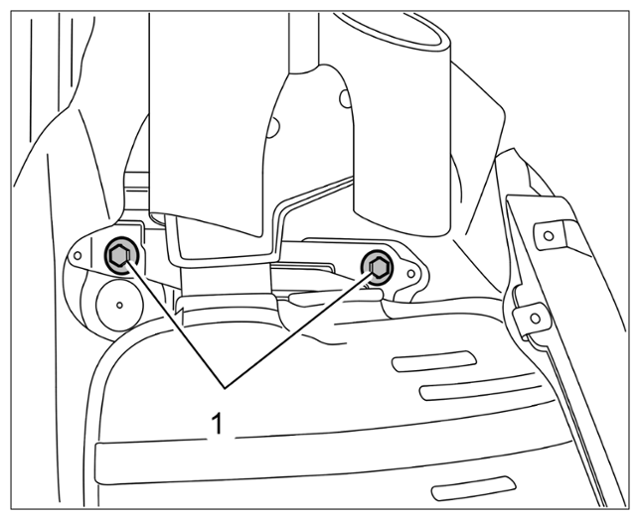

Rear silencer holder

1	> Tightening torque 23 (17 ftlb.) Nm

Fig 1: Exhaust System Components Location With Torque Specifcation (Figure Shows V6 Turbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

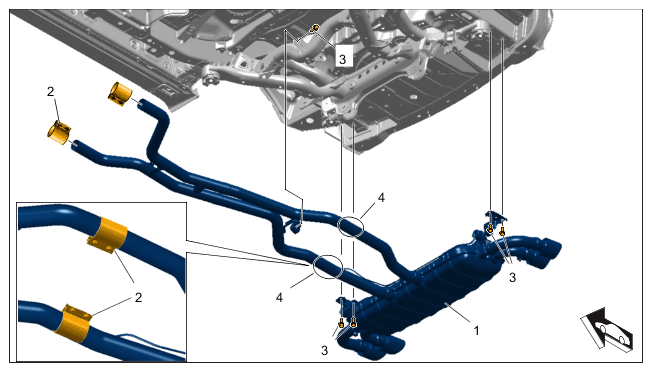

Exhaust system (figure shows V6 Turbo)

1	Rear muffler
2	Clamping sleeves/replace> Tightening torque 33 Nm
3	Screws > Tightening torque 23 Nm
4	Replace connection point marking for rear muffler

Fig 2: Exhaust Flap Control Box Components Location With Torque Specifcation

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

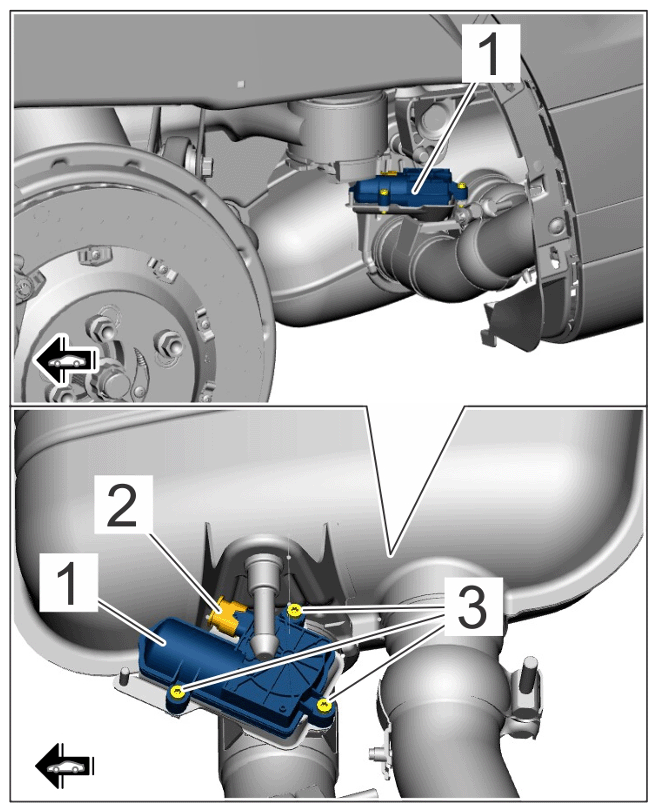

Exhaust flap control box

1	Exhaust flap control box
2	Cable plugs
3	Screw, M5 x 20, > Tightening torque 6 Nm
