Catalytic Converter

WARNING: This page is about a different variant/trim than selected.

TIGHTENING TORQUE SPECIFICATIONS - CATALYTIC CONVERTER

Location	Description	Type	Basic value	Tolerance
Main catalytic converter to primary catalytic converter		Tightening torque	23 (17 ftlb.) Nm

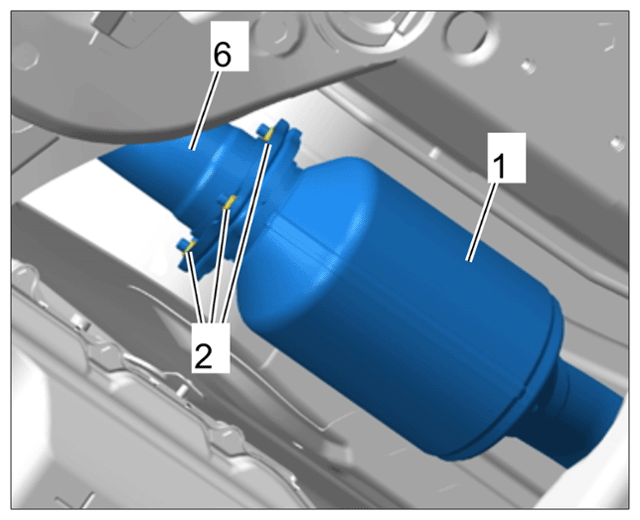

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening threaded joint for primary catalytic converter
Main catalytic converter to transmission bracket		Tightening torque	23 (17 ftlb.) Nm

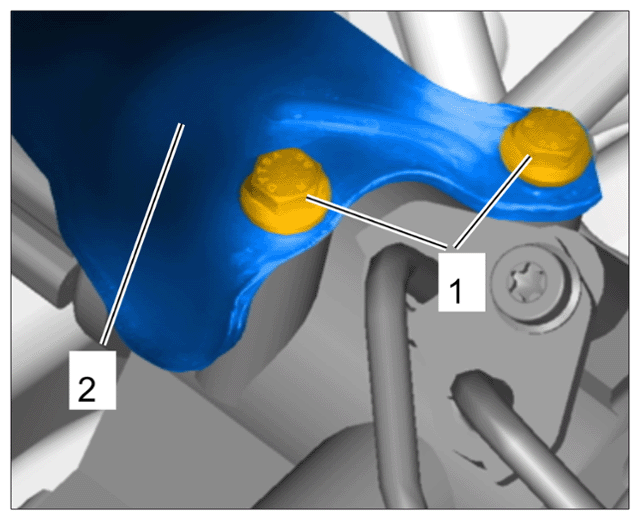

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening mounting on transmission bracket
Exhaust clamp		Maximum inclination	Adjustment value	10°
Exhaust clamp		M8; replace; tighten evenly	Tightening torque	33 (24 ftlb.) Nm

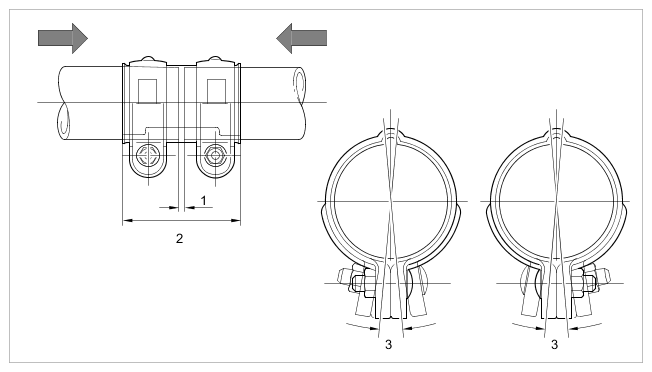

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installation position of exhaust clamp
Clamp on catalytic converter		M8 lock nut - replace clamp	Tightening torque	23 (17 ftlb.) Nm

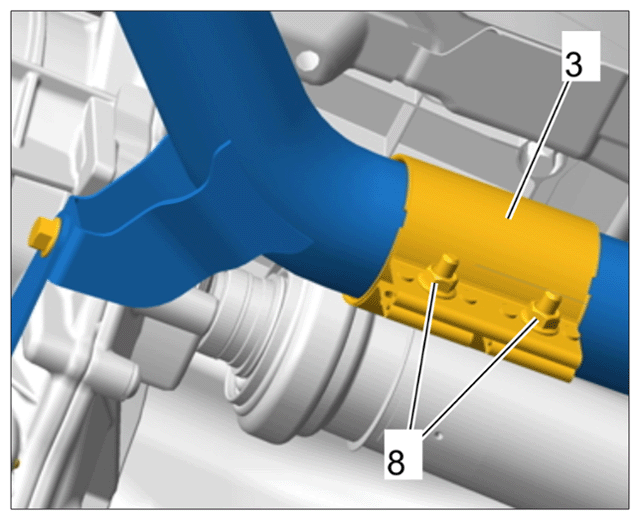

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Clamp securing catalytic converter to exhaust system
Catalytic converter to transfer gear holder	M8 screw	Tightening torque	23 (17 ftlb.) Nm

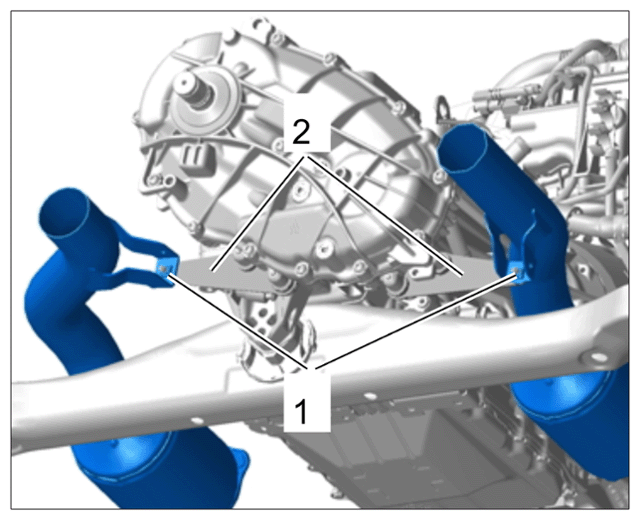

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Catalytic converter holders
Heat shield on universal joint	M6 screw	Tightening torque	10 (7.5 ftlb.) Nm

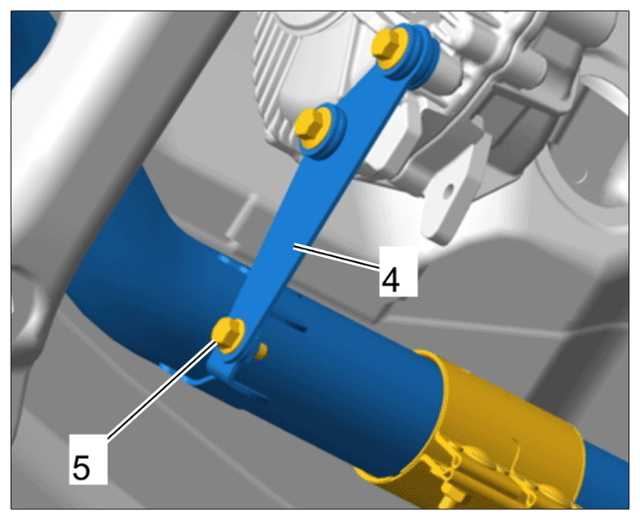

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield on universal joint
