Turbocharger Oil Circuit, Cylinders 1 To 4

WARNING: This page is about a different variant/trim than selected.

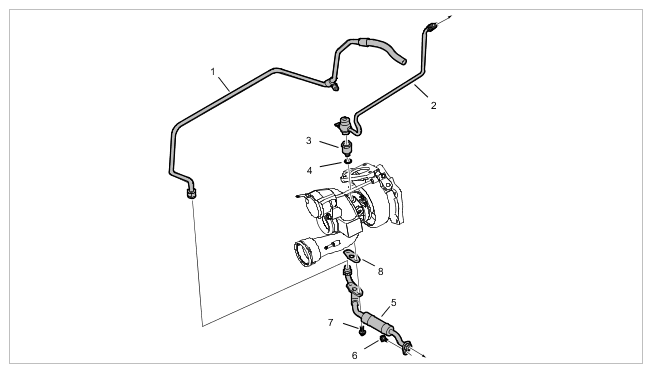

Fig 1: Turbocharger Oil Circuit Components Location With Torque Specifcation - Cylinders 1 To 4

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil circuit for turbocharger, cylinders 1 to 4

1	Turbocharger vent line for cylinders 1 to 4; vent line to turbocharger oil extraction line > Tightening torque 35 (26 ftlb.) Nm ; holding clamp on vent line to collection pipe, M6 screw > Tightening torque 10 (7.5 ftlb.) Nm ; holding clamp on vent line to collection pipe, M6 nut > Tightening torque 6.5 (5 ftlb.) Nm
2	Turbocharger oil feed line for cylinders 1 to 4; turbocharger oil feed line to connection piece > Tightening torque 40 (30 ftlb.) Nm ; turbocharger oil feed line to cylinder head > Tightening torque 35 (26 ftlb.) Nm
3	Connection piece > Tightening torque 45 (33 ftlb.) Nm
4	Sealing ring
5	Oil extraction line
6	Screw, M6 x 12 > Tightening torque 10 (7.5 ftlb.) Nm
7	Screw, M6 x 16 > Tightening torque 10 (7.5 ftlb.) Nm
8	Turbocharger seal, cylinders 1 to 4
