Turbocharger, Cylinders 5 To 8 - Cooling

WARNING: This page is about a different variant/trim than selected.

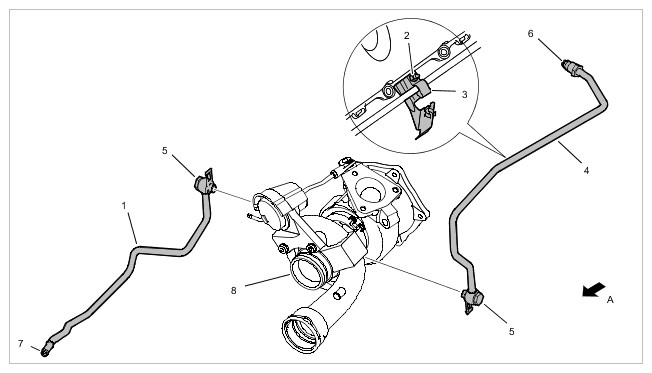

Fig 1: Turbocharger Components Location With Torque Specifcation - Cylinders 5 To 8 (Cooling)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger, cylinders 5 to 8 - cooling

1	Coolant supply line for turbocharger, cylinders 5 to 8
2	Hexagon nut, M6 > Tightening torque 8.5 (6 ftlb.) Nm
3	Clamp
4	Coolant return line for turbocharger, cylinders 5 to 8
5	Banjo bolt, M12 x 1.25; coolant supply line to turbocharger > Tightening torque 30 (22 ftlb.) Nm ; coolant return line to turbocharger > Tightening torque 30 (22 ftlb.) Nm
6	Collection pipe connection > Tightening torque 35 (26 ftlb.) Nm
7	Connection for coolant supply hose for turbocharger, cylinders 5 to 8
8	Turbocharger, cylinders 5 to 8
A	Direction of travel
